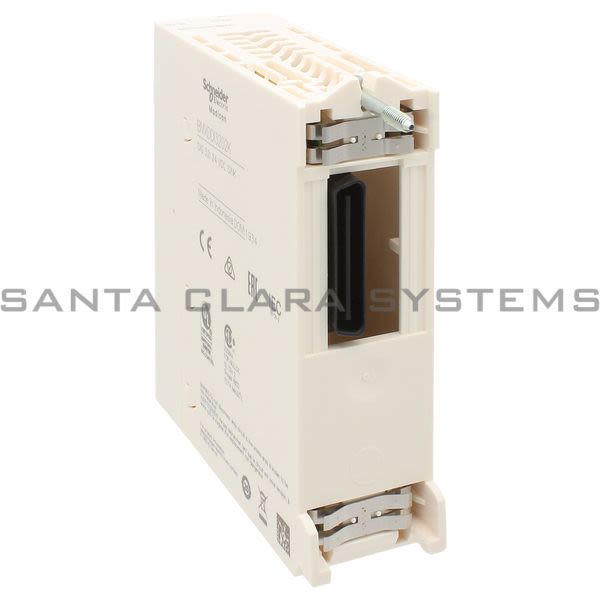

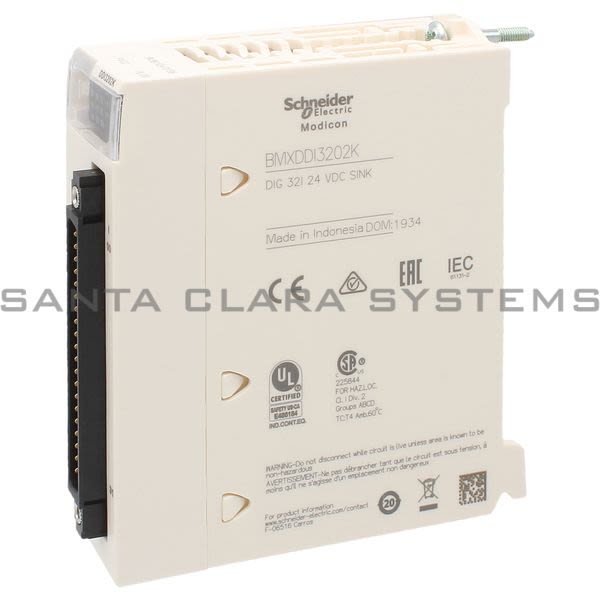

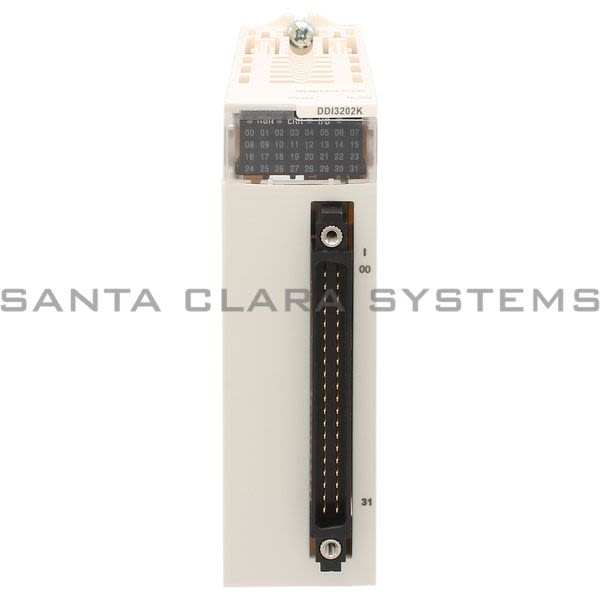

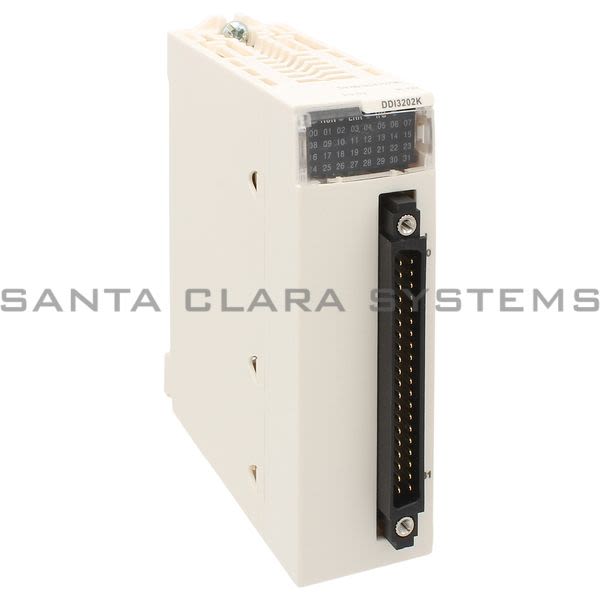

BMXDDI3202K

Modicon - discrete input module M340 - 32 inputs - 24 V DC positive

Current response time:

14 Minutes 36 Seconds

*Santa Clara Systems is not a Modicon Authorized Distributor.

Description: discrete input module M340 - 32 inputs - 24 V DC positive
Range of product: Modicon X80
Product weight: 0.25 lb(US) (0.112 kg)
Electrical connection: 40-way connector
Input type: Current sink (logic positive)
Protective treatment: TC
Standards: UL 61010-2-201, CSA C22.2 No 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
Relative humidity: 5...95 % without condensation
Operating altitude: 0...6561.68 ft. (0...2000 m), 2000...5000 m (with derating factor)
Protection type: Reverse polarity protection, 1 external fuse per group of channel 0.5 A fast blow
Sensor power supply: 19...30 V
IP degree of protection: IP20
Product or component type: Discrete input module
Voltage state 1 guaranteed: >= 11 V
Product certifications: Merchant Navy, EAC, CSA, RCM, UL, CE
Current state 1 guaranteed: >= 2 mA
Discrete input number: 32
Voltage state 0 guaranteed: <= 5 V
Dielectric strength: 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of channels

Discrete input type: Isolated
Current state 0 guaranteed: <= 1.5 mA
Vibration resistance: 3 gn
Input impedance: 9600 Ohm
Shock resistance: 30 gn
Discrete input voltage: 24 V DC positive
Insulation resistance: > 10 MOhm 500 V DC
Ambient air temperature for storage: -40...185 F (-40...85 C)
Discrete input current: 2.5 mA
power dissipation in W: <= 3.9 W
Ambient air temperature for operation: 32...140 F (0...60 C)
Input compatibility: With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2
DC typical filtering time: 4 ms
DC maximum filtering time: 7 ms
Paralleling of inputs: No
Typical current consumption: 140 mA at 3.3 V DC
MTBF reliability: 696320 H
Voltage detection threshold: < 14 V DC sensor fault, > 18 V DC sensor OK
status LED: 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module I/O, 1 LED red module error (ERR)
