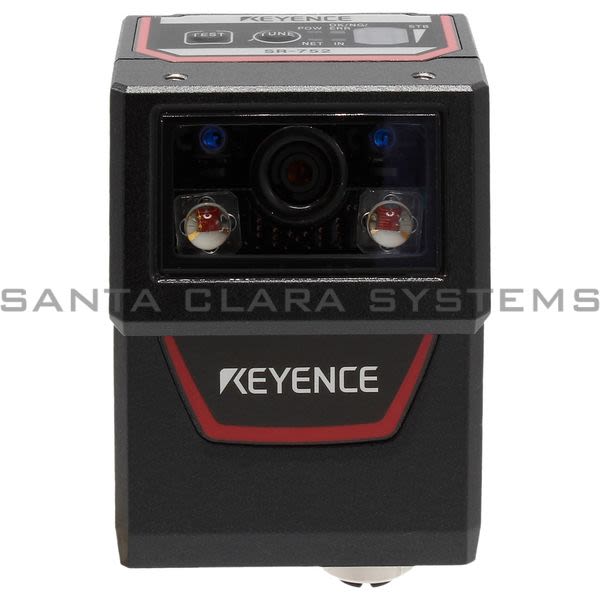

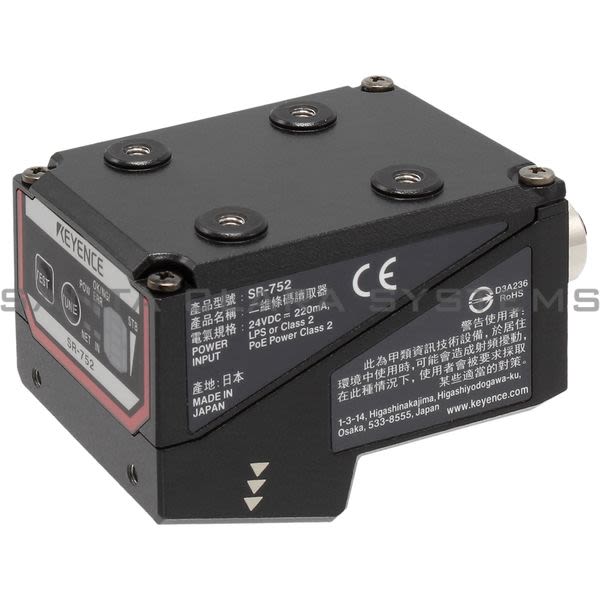

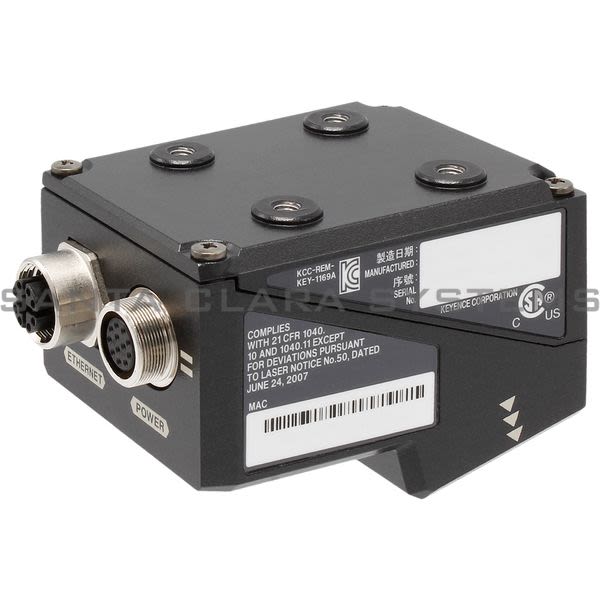

SR-752

Keyence - 2D Code Reader

Current response time:

By 5AM PT on Monday

Emergency?

Description: 2D Code Reader
Weight: Approx 175 g Approx 185 g (When SR-75L4/L6 is mounted)
Footnotes: *1 PROFINET is a trademark or registered trademark of PROFIBUS International. EtherNet/IPTM is a trademark or registered trademark of ODVA. *2 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50. *3 To comply with CSA No.61010-1/UL61010-1/IEC61010-1, use a power supply meeting the following criteria: - provides Class 2 output as defined in the CEC and NEC, or - evaluated as a Limited Power Source as defined in CAN/CSA-C22.2 No.60950-1/UL60950-1/IEC60950-1. *4 Peak operating current for PoE Power Class 2: 210 mA maximum.
Type: Long-range type
Receiver - Sensor: CMOS Image Sensor
Receiver - Number of pixels: 752 x 480 pixels
Lighting - Light source: Red LED
Laser pointer: Visible semiconductor laser, Wavelength 660 nm
Laser pointer - Output: 60 W
Laser pointer - Pulse duration: 200 s
Laser pointer - Laser class: Class 1 Laser Product (IEC60825-1, FDA (CDRH) Part 1040.10*2)
Reading specifications - Minimum resolution - 2D: 0.19 mm 0.007" 0.33 mm 0.013" (When SR-75L4 is mounted) 0.5 mm 0.02" (When SR-75L6 is mounted)
Reading specifications - Minimum resolution - Barcode: 0.17 mm 0.007" 0.22 mm 0.009" (When SR-75L4 is mounted) 0.33 mm 0.013" (When SR-75L6 is mounted)
Reading specifications - Supported symbol - 2D: QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417, MicroPDF, Composite Code (CC-A, CC-B, CC-C)
Reading specifications - Supported symbol - Barcode: GS1DataBar,CODE39,ITF,NW-7 (Codabar),CODE128,GS1-128,JAN/EAN/UPC,CODE39 FullASCII, CODE93,2of5 (Industrial 2of5),COOP 2of5,Trioptic CODE39
Reading specifications - Reading distance (typical examples) - DataMatrix QR: 180 to 305 mm 7.09" to 12.01" (Cell size = 0.5 mm 0.02") 300 to 490 mm 11.81" to 19.29" (Cell size = 0.5 mm 0.02") (When SR-75L4 is mounted) 460 to 690 mm 18.11" to 27.17" (Cell size = 0.5 mm 0.02") (When SR-75L6 is mounted)
Reading specifications - Reading distance (typical examples) - Barcode: 180 to 330 mm 7.09" to 12.99" (Narrow bar width = 0.5 mm 0.02") 250 to 540 mm 9.84" to 21.26" (Narrow bar width = 0.5 mm 0.02") (When SR-75L4 is mounted) 400 to 760 mm 15.75" to 29.92" (Narrow bar width = 0.5 mm 0.02") (When SR-75L6 is mounted)
Reading specifications - Focal distance: 250 mm 9.84" 400 mm 15.75" (When SR-75L4 is mounted) 600 mm 23.62" (When SR-75L6 is mounted)
Reading specifications - Field of view (at focal distance): 65.0 x 41.5 mm 2.56" x 1.63" 108 x 69 mm 4.25" x 2.72" (When SR-75L4 is mounted) 165 x 106 mm 6.50" x 4.17" (When SR-75L6 is mounted)
I/O specifications - Control input - Number of inputs: 2
I/O specifications - Control input - Input type: Bidirectional voltage input
I/O specifications - Control input - Maximum rating: 26.4 VDC
I/O specifications - Control input - Minimum ON voltage: 15 VDC

I/O specifications - Control input - Maximum OFF current: 0.2 mA or less
I/O specifications - Control output - Number of outputs: 3
I/O specifications - Control output - Output type: Photo MOS relay output
I/O specifications - Control output - Maximum rating: 30 VDC
I/O specifications - Control output - Maximum load current: 1 output: 50 mA or less, Total of 3 outputs: 100 mA or less
I/O specifications - Control output - Leakage current when OFF: 0.1 mA or less
I/O specifications - Control output - Residual voltage when ON: 1 V or less
I/O specifications - Ethernet - Communication standard: 10BASE-T/100BASE-TX
I/O specifications - Ethernet - Supported protocol: TCP/IP, FTP, SNTP, BOOTP, EtherNet/IPTM, PROFINET, MC protocol, KV STUDIO
I/O specifications - Serial communication - Communication standard: RS-232C compliant
I/O specifications - Serial communication - Transmission speed: 9600, 19200, 38400, 57600, 115200 bps
I/O specifications - Serial communication - Supported protocol: Non-procedural, MC protocol, SYSWAY, KV STUDIO
Rating - Power voltage: Control port: 24 VDC10% or Ethernet port: PoE TypeA/B 36 to 57 V (Cannot supply at the same time)*3
Rating - Current consumption: Control port: 220 mA (When 24 VDC power supply is used) Ethernet port: PoE Power Class 2*4
Environmental resistance - Enclosure rating: IP65
Environmental resistance - Ambient temperature: 0 to 45C 32 to 113F
Environmental resistance - Ambient storage temperature: -10 to +50C 14 to 122 F
Environmental resistance - Operating ambient humidity: 35 to 95% RH (No condensation)
Environmental resistance - Storage ambient humidity: 35 to 95% RH (No condensation)
Environmental resistance - Operating ambient luminance: Sunlight: 10000 lux, Incandescent lamp: 6000 lux, Fluorescent lamp: 2000 lux
Environmental resistance - Operating environment: No dust or corrosive gas present
Environmental resistance - Vibration: 10 to 55 Hz Double amplitude 1.5 mm 0.06"/55 to 500 Hz: Acceleration 5G, 3 hours each in X, Y and Z directions
Languages: Asynchronous
