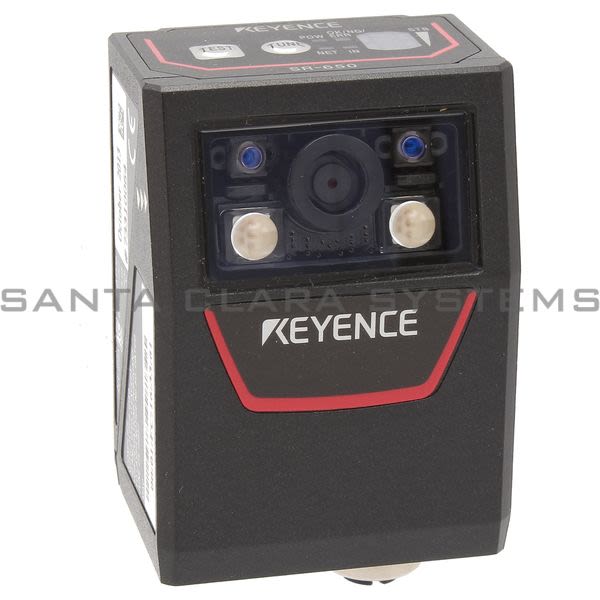

SR-650

Keyence - Code Reader

Current response time:

10 Minutes 54 Seconds

Description: Code Reader
Weight: Approx 160 g
Footnotes: *1 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50. *2 To comply with CSA No.61010-1/UL61010-1/IEC61010-1, use the following power supply. - one that provides Class 2 output as defined in the CEC and NEC, or - one that has been evaluated as a Limited Power Source as defined in CAN/CSA-C22.2 No.60950-1/UL60950-1/IEC60950-1. *3 Peak operating current for PoE Power Class 2: 210mA maximum.
Type: Close-range
Receiver - Sensor: CMOS Image Sensor
Receiver - Number of pixels: 752480 pixels
Lighting - Light source: High intensity red LED 630 nm
Lighting - LED class: Class 1 LED Product (IEC60825-1)
Laser pointer - Light source: Visible semiconductor laser, Wavelength 660 nm
Laser pointer - Output: 60 ?W
Laser pointer - Pulse duration: 200 ?s
Laser pointer - Laser class: Class 1 Laser Product (IEC60825-1, FDA (CDRH) Part 1040.10*1)
I/O specifications - Control input - Number of Inputs: 2
I/O specifications - Control input - Input type: Bidirectional voltage input
I/O specifications - Control input - Maximum rating: 26.4 VDC
I/O specifications - Control input - Minimum ON voltage: 15 VDC
I/O specifications - Control input - Maximum OFF current: 0.2 mA or less
I/O specifications - Control output - Number of Outputs: 3
I/O specifications - Control output - Output type: Photo MOS relay output
I/O specifications - Control output - Maximum rating: 30 VDC
I/O specifications - Control output - Maximum load current: 1 output: 50 mA or less, 3 Total output 100 mA or less
I/O specifications - Control output - Leakage current when OFF: 0.1 mA or less
I/O specifications - Control output - Residual voltage when ON: 1 V or less

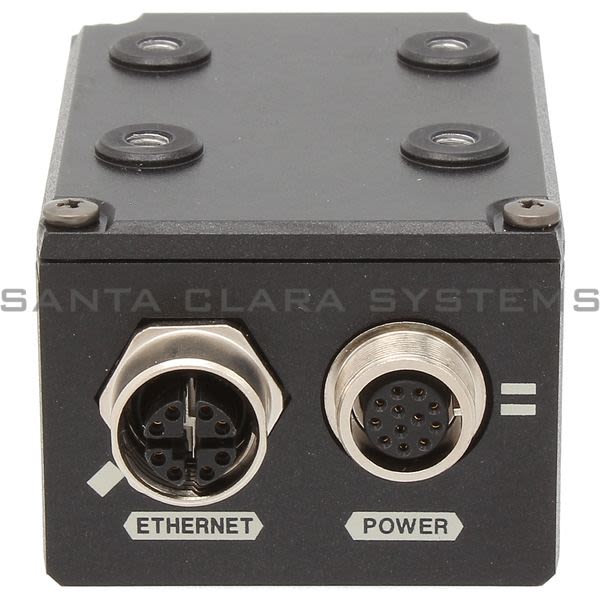

I/O specifications - Ethernet - Communication standard: 10BASE-T/100BASE-TX Cat.5
I/O specifications - Ethernet - Supported protocol: TCP/IP, EtherNet/IPTM, FTP, BOOTP
I/O specifications - Serial communication - Communication standard: RS-232C compliant
I/O specifications - Serial communication - Transmission speed: 9600, 19200, 38400, 57600, 115200 bps
I/O specifications - Serial communication - Synchronization method: Asynchronous
Reading specifications - Supported symbol - 2D: QR, MicroQR, DataMatrix (ECC200), PDF417, MicroPDF, MaxiCode, Composite character (CC-A, CC-B, CC-C)
Reading specifications - Supported symbol - Barcode: GS1Databar, CODE39, ITF, Industrial2of5, NW-7 (Codabar), CODE128, GS1-128, CODE93, JAN/EAN/UPC, TriopticCODE39, Postal
Reading specifications - Minimum resolution - 2D: 0.127 mm 0.005"
Reading specifications - Minimum resolution - Barcode: 0.127 mm 0.005"
Reading specifications - Reading distance (typical examples) - DataMatrix QR: 40 to 80 mm 1.57" to 3.15" (Cell size= 0.25 mm 0.01")
Reading specifications - Reading distance (typical examples) - Barcode: 30 to 100 mm 1.18" to 3.94" (Narrow bar width = 0.33 mm 0.01")
Reading specifications - Focal distance: 60 mm 2.36"
Reading specifications - Field of View (at focal distance): 42.5 mm27.1 mm 1.67"1.07"
Rating - Power voltage: Control port: 24 VDC 10% or Ethernet port: PoE TypeA/B 36 to 57 V (Cannot supply at the same time)*2
Rating - Current consumption.: Control port: 220mA or less (When 24 VDC power supply is used) Ethernet port: PoE Power Class 2*3
Environmental resistance - Enclosure rating: IP65
Environmental resistance - Operating temperature range: 0 to 45C 32 to 113F
Environmental resistance - Ambient temperature for storage: -10 to +50C 14 to 122F
Environmental resistance - Storage relative humidity: 35 to 95% RH (No condensation)
Environmental resistance - Operating ambient luminance: Sunlight: 10000 lux, Incandescent lamp: 6000 lux, Fluorescent lamp: 2000 lux
Environmental resistance - Operating ambient humidity: 35 to 95% RH (No condensation)
Environmental resistance - Operating environment: No dust or corrosive gas present
Environmental resistance - Vibration: 10 to 55 Hz Double amplitude 1.5 mm 0.06"/55 to 500 Hz: Acceleration 5G, 3 hours each in X, Y and Z directions
