PZ2-42P

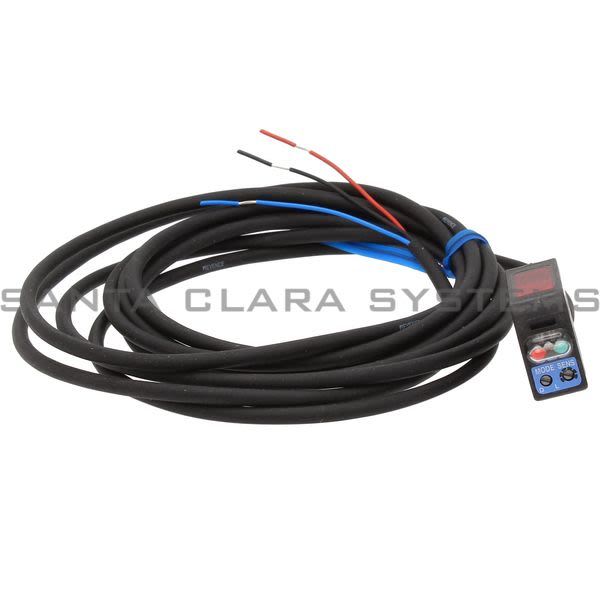

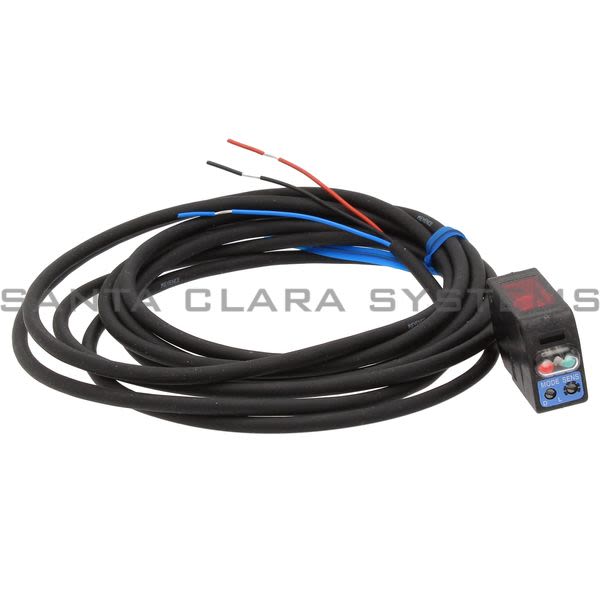

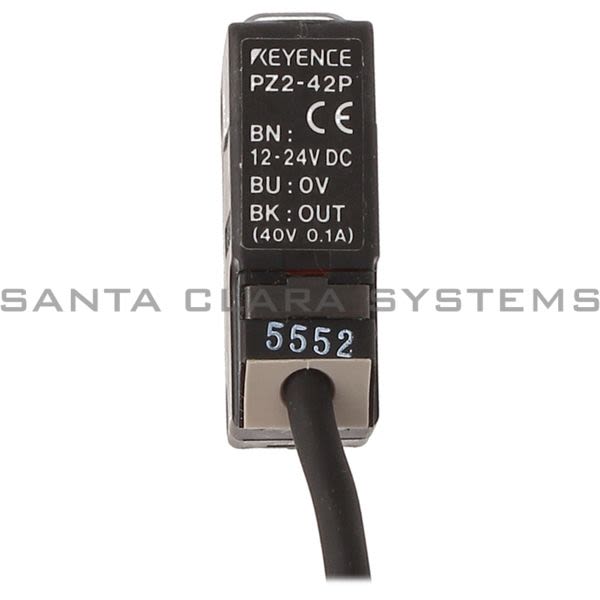

Keyence - Mini Micro Optical Sensor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Mini Micro Optical Sensor
Weight: Approx 50 g (including 2-m 6.6' connector cable)
Footnotes: *1 The power indicator is equipped with the PZ2-51 only.
Type: Diffuse-reflective Short-range
Response time: 1 ms max.
Light source: Red LED
Accessories: Mounting bracket1 Mounting screws2 Plate nut1
Sensitivity adjustment: 1-turn trimmer (240)
Detection distance: 100 mm 3.94" (100 x 100 mm 3.94" x 3.94" white mat paper)
Detectable object: Transparent and opaque
Hysteresis(of detecting distance): 20% max.
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)

Indicator lamp: Output and power*1 : Red LED, Stable operation : Green LED
Control output: NPN or PNP : 100 mA (40 V) max., Residual voltage : 1 V max.
Protection circuit: Reversed polarity, overcurrent protection, surge absorber
Rating - Power voltage: 12 to 24 VDC 10%, ripple : 10% max., Class 2
Rating - Current consumption.: 35 mA max.
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating ambient luminance: Incandescent lamp : 5,000 lux max., Sunlight : 20,000 lux max.
Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F (no freezing)
Environmental resistance - Operating ambient humidity: 35 to 85%RH (no condensation)
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions
Environmental resistance - Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Case material: Glass-fiber reinforced plastic
