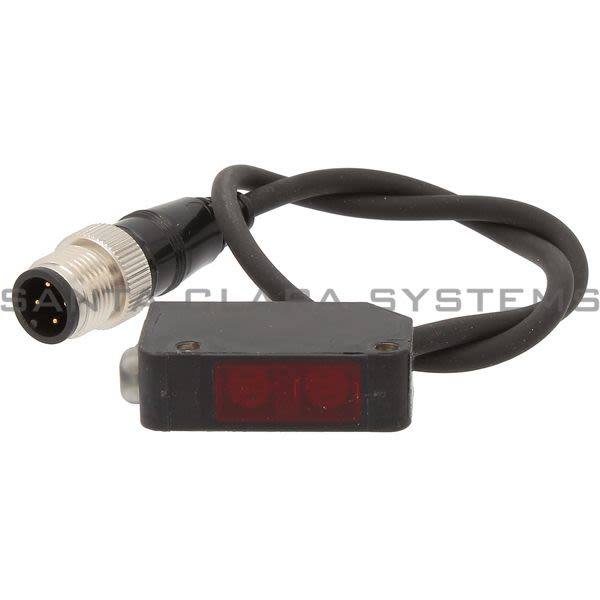

- Description: Sensor
- Weight: Approx 25 g
- Footnotes: *1 The detecting distance is obtained with the maximum sensitivity.
- Type: Multi reflective model (M12 connector cable type)
- Response time: 1 ms max.
- Output: PNP
- Sensitivity adjustment: Automatic push button
- Detecting distance: 5 to 300 mm0.20" x 11.81" (100 x 100 mm3.94" x 3.94"white mat paper)*1
- Setting distance: 40 to 300 mm1.57" to 11.81" (100 x 100 mm3.94" x 3.94"white mat paper)
- Light source.: Red LED
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Output: orange LED, stable operation: green LED
- Control output: Maximum PNP open-collector output: 100 mA (26.4 V or less), residual voltage: 1 V or less
- Digital monitor: 7-segment, 3-digit red LED
- Protection circuit: Reversed polarity, overcurrent protection, surge absorber
- Rating - Power voltage: 12 to 24 VDC 10%, Ripple (P-P): 10% max., Class 2
- Rating - Power consumption: 37 mA max.
- Environmental resistance - Enclosure rating: IP67
- Environmental resistance - Operating ambient luminance: Incandescent lamp 5000 lux max., Sunlight: 20000 lux max.
- Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
- Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
- Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
- Environmental resistance - Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
- Case material: Glass-fiber reinforced plastic
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZ-V33P . Santa Clara Systems carries 2,103 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
