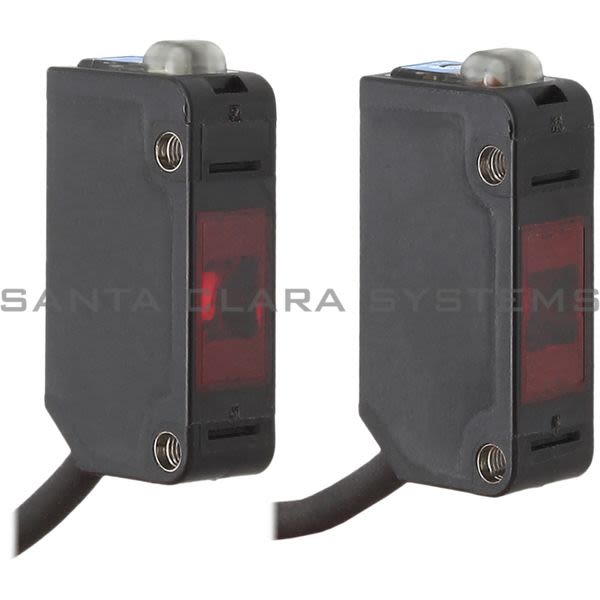

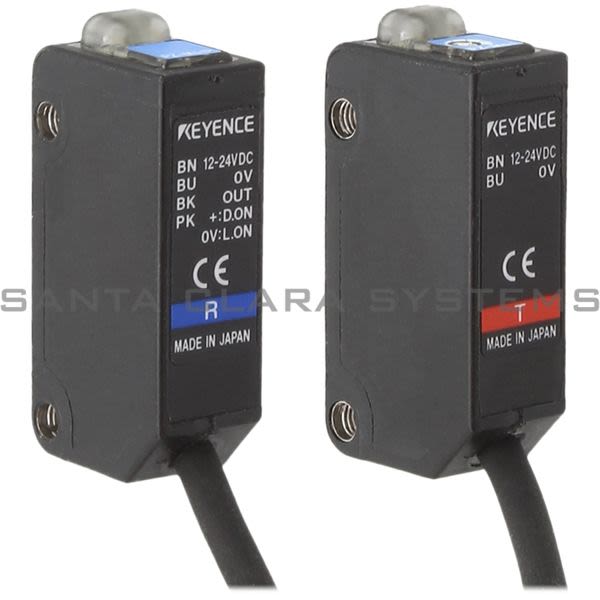

PZ-M51P

Keyence - Photoelectric Thrubeam

Current response time:

5 Minutes 20 Seconds

Description: Photoelectric Thrubeam

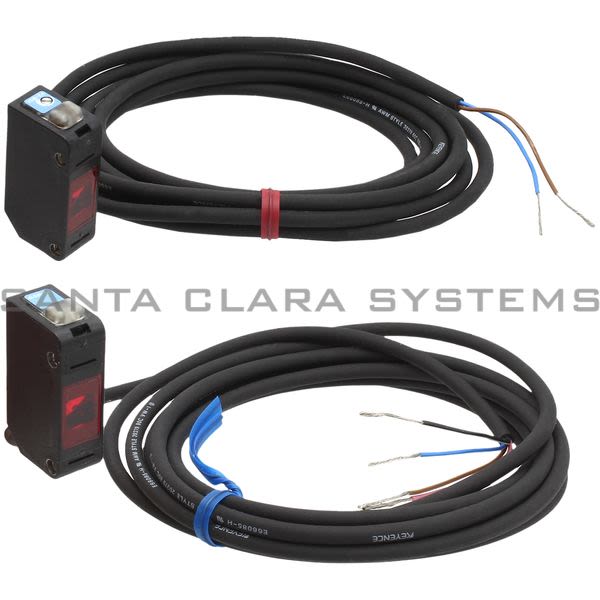

Weight: T: Approx 50 g R: Approx 50 g (including 2-m 6.6' cable)
Footnotes: *1 The detecting distance is obtained with the maximum sensitivity. *2 The transmitter of the PZ-M51 features a power indicator only.
Type: Thrubeam
Response time: 1.5 ms max.
Output: PNP
Sensitivity adjustment: 1-turn trimmer (230)
Detecting distance: 10 m 32.8'*1
Light source.: Red LED
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp: Output and power: Orange LED, Stable operation: Green LED*2

Control output: 100 mA (24 V) max., Residual voltage: 1 V max.
Protection circuit: Reversed polarity, overcurrent protection, surge absorber
Rating - Power voltage: 12 to 24 VDC 10%, Ripple (P-P): 10% max., Class 2
Rating - Power consumption: T: 24 mA max. , R: 27 mA max.
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating ambient luminance: Incandescent lamp 5000 lux max., Sunlight: 20000 lux max.
Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
Environmental resistance - Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Case material: Glass-fiber reinforced plastic
