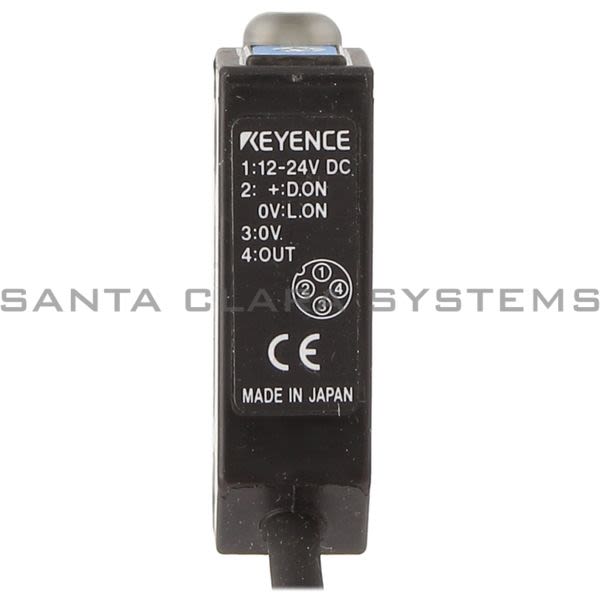

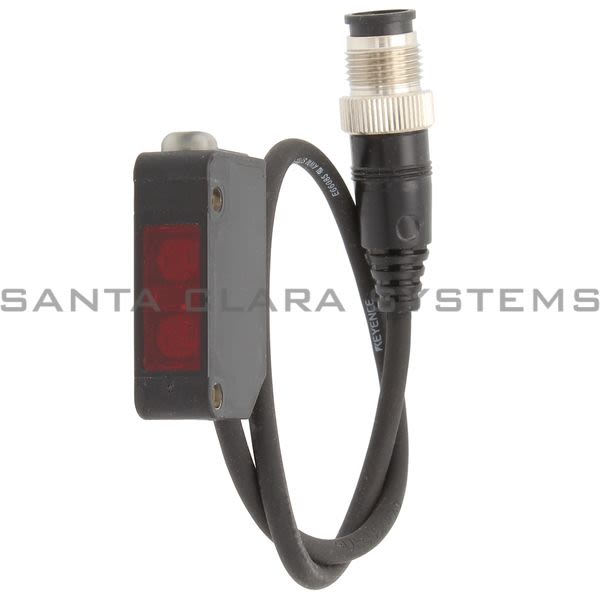

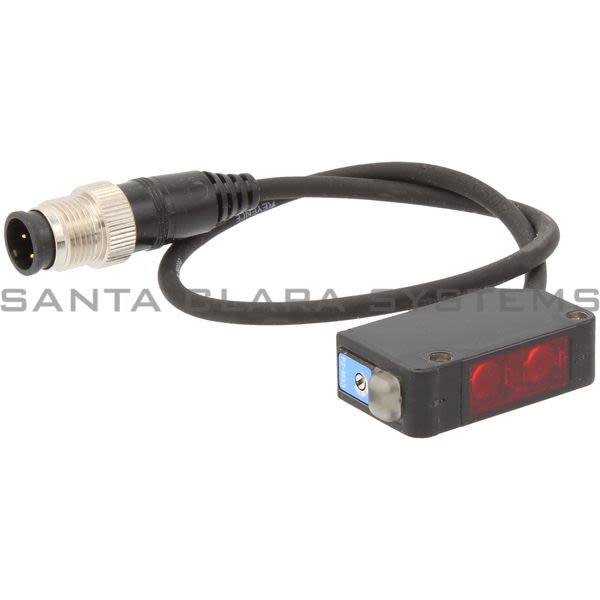

PZ-M33

Keyence - Photo Reflective Sensor

Current response time:

19 Minutes 2 Seconds

Description: Photo Reflective Sensor
Weight: Approx 25 g
Footnotes: *1 The detecting distance is obtained with the maximum sensitivity.

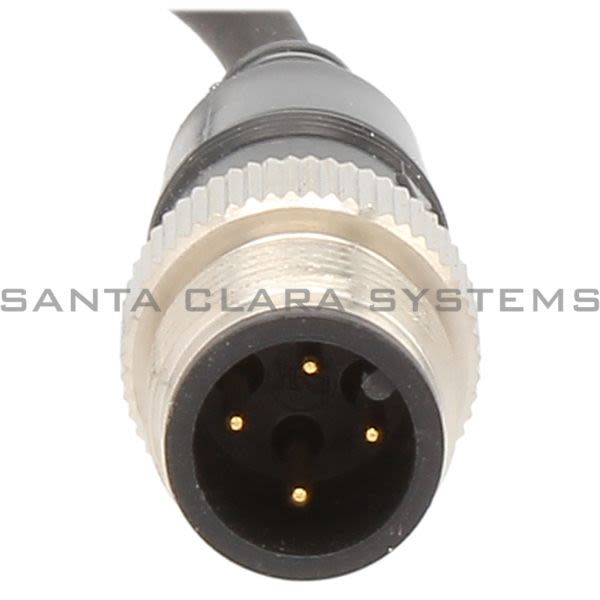

Type: Multi reflective model (M12 connector cable type)
Response time: 1 ms max.
Output: NPN
Sensitivity adjustment: 1-turn trimmer (230)
Detecting distance: 5 to 300 mm0.20" x 11.81" (100 x 100 mm3.94" x 3.94"white mat paper)*1
Setting distance: 40 to 300 mm1.57" to 11.81" (100 x 100 mm3.94" x 3.94"white mat paper)
Light source.: Red LED
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp: Output: orange LED, stable operation: green LED

Control output: 100 mA (40 V) max.Residual voltage: 1 V max.
Protection circuit: Reversed polarity, overcurrent protection, surge absorber
Rating - Power voltage: 12 to 24 VDC 10%, Ripple (P-P): 10% max., Class 2
Rating - Power consumption: 30 mA or less
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating ambient luminance: Incandescent lamp 5000 lux max., Sunlight: 20000 lux max.
Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
Environmental resistance - Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Case material: Glass-fiber reinforced plastic
