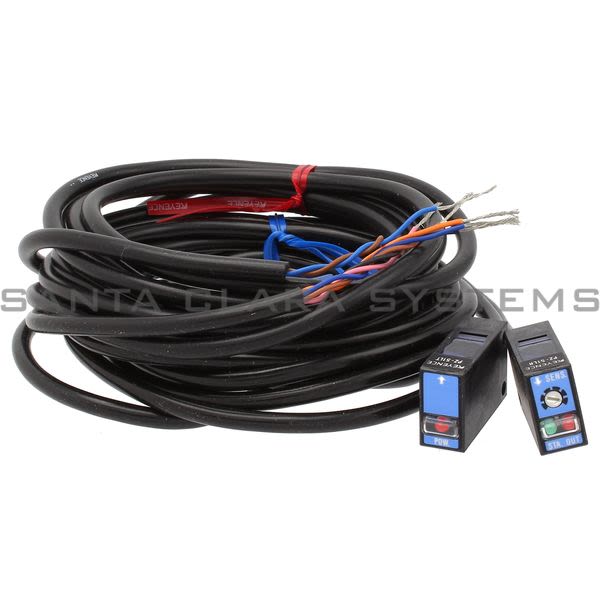

• Keyence PZ-51L Photoelectric Sensor Product Image

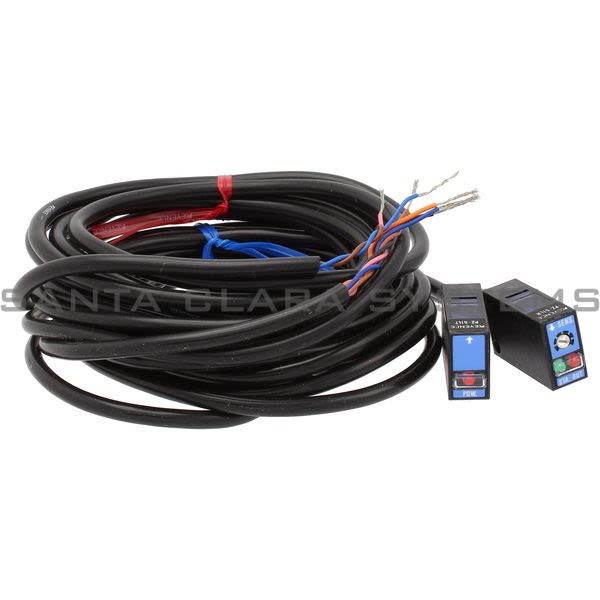

  • Keyence PZ-51L Photoelectric Sensor Product Image

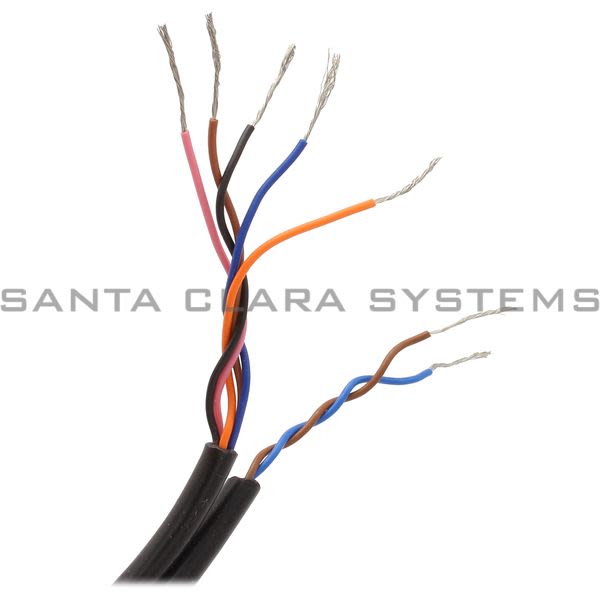

  • Keyence PZ-51L Photoelectric Sensor Product Image

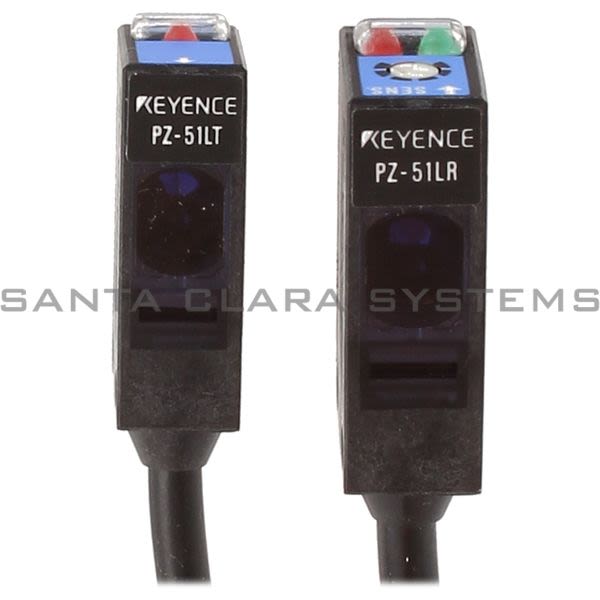

  • Keyence PZ-51L Photoelectric Sensor Product Image
  • Keyence PZ-51L Barcode

PZ-51L

Get a Quote

Current response time:

4 Minutes 8 Seconds
  • Description: Photoelectric Sensor
  • Weight: Transmitter: Approx 60 g Receiver: Approx 70 g (including 2-m cable)
  • Footnotes: *1 Only the transmitter is equipped with a power indicator.
  • Type: Thrubeam model, L model
  • Response time: 1.5 ms max.
  • Light source: Infrared LED
  • Sensitivity adjustment: 1-turn trimmer (240)
  • Detecting distance: 7 m 23.0'
  • Detectable object: Opaque material with an area of 8 mm2 or more
  • Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
  • Indicator lamp: Output and power:*1 red LED, stable operation: green LED
  • Output - Control output: Maximum NPN open-collector output: 100 mA or less (40 V or less)
  • Output - Stability output: Maximum NPN open-collector output: 50 mA or less (40 V or less)
  • Protection circuit: Reversed polarity, overcurrent protection, surge absorber
  • Rating - Power voltage: 12 to 24 VDC 10%, ripple (P-P): 10% or less
  • Rating - Current consumption.: Transmitter: 20 mA or less, receiver: 25 mA or less
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 5,000 lux or less, sunlight: 20,000 lux or less
  • Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85%RH
  • Environmental resistance - Vibration: 10 to 55 Hz compound amplitude 1.5 mm 0.06", 2 hours for each of X, Y, Z axis
  • Case material: Fiberglass reinforced plastic
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZ-51L . Santa Clara Systems carries 2,107 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
