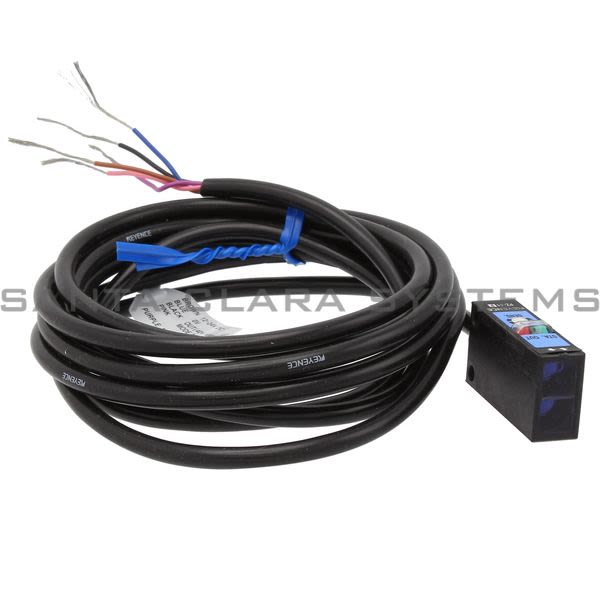

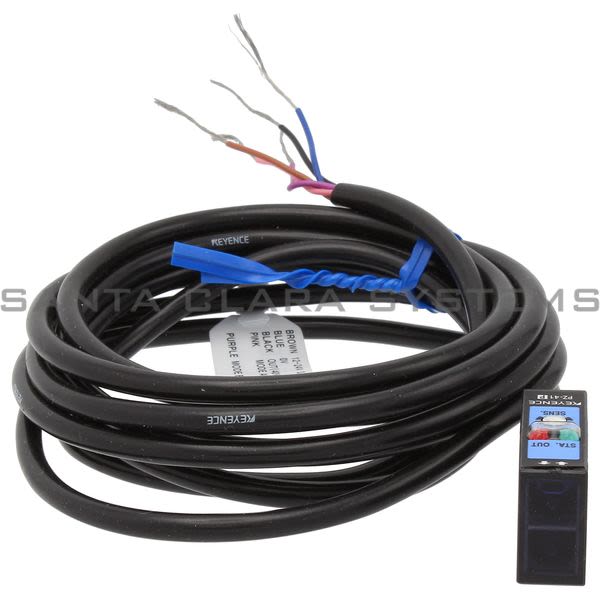

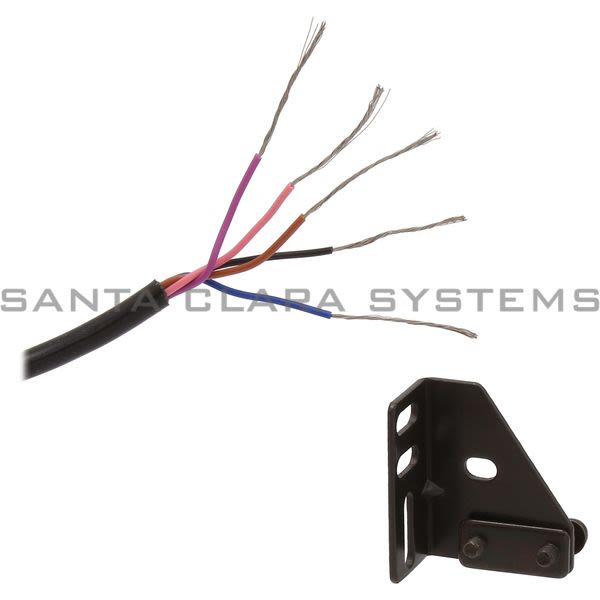

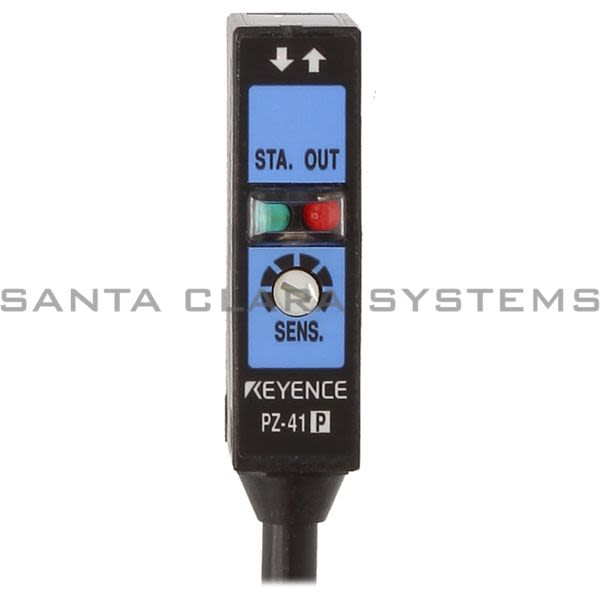

Keyence PZ-41P Photoelectric Sensor Product Image

PZ-41P

Keyence - Photoelectric Sensor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Photoelectric Sensor
Weight: Approx 75 g (including 2-m 6.6' cable)
Type: Diffuse-reflective model (long range), straight model
Response time: 1 ms max. (2 ms in alternate frequency mode)
Light source: Infrared LED
Sensitivity adjustment: 1-turn trimmer (240)
Detecting distance: 60 cm (20 20 cm white mat paper)
Detectable object: Transparent and opaque materials
Hysteresis: 20% max. of detecting distance
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp: Output: red LED, stable operation: green LED

Output - Control output: Maximum PNP open-collector output: 100 mA or less (40 V or less)
Protection circuit: Reversed polarity, overcurrent protection, surge absorber
Rating - Power voltage: 12 to 24 VDC 10%, ripple (P-P): 10% or less
Rating - Current consumption.: 30mA or less
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating ambient luminance: Incandescent lamp: 5,000 lux or less, sunlight: 20,000 lux or less
Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85%RH
Environmental resistance - Vibration: 10 to 55 Hz compound amplitude 1.5 mm 0.06", 2 hours for each of X, Y, Z axis
Case material: Fiberglass reinforced plastic
