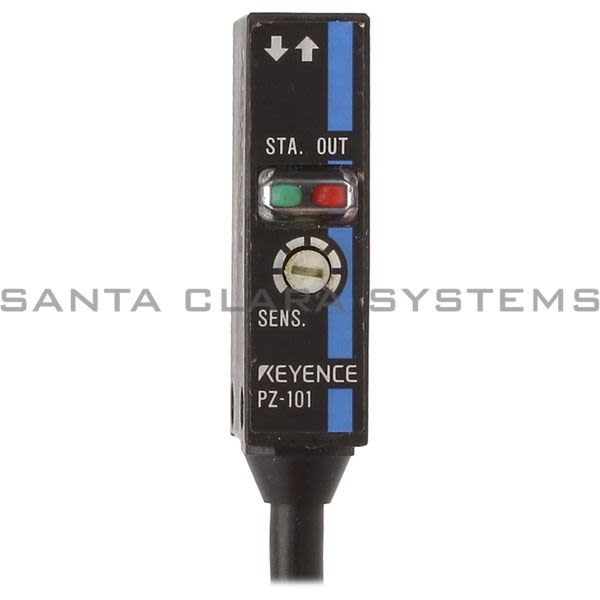

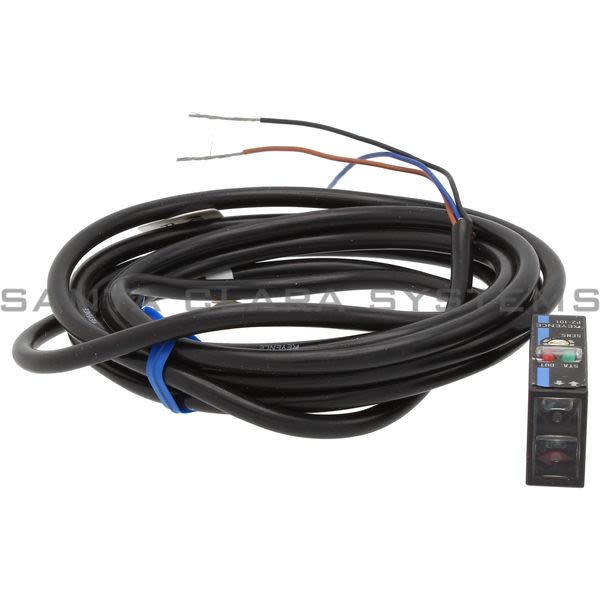

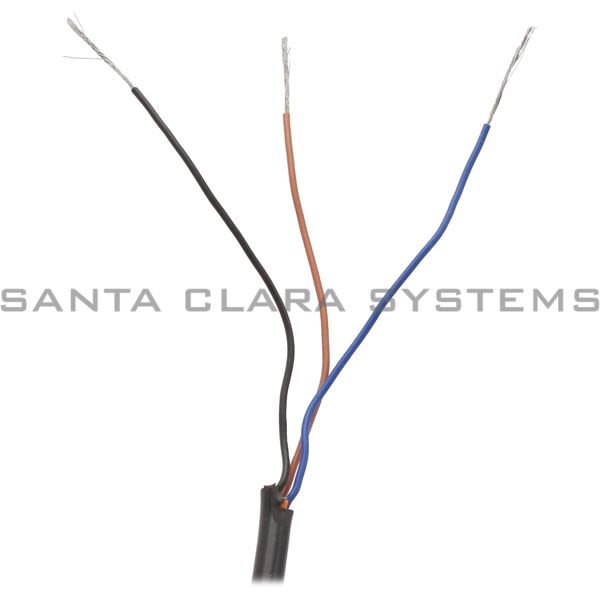

PZ-101

Keyence - Sensor

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Sensor
Weight: Approx. 75 g
Type: Focused-beam
Response time: 1 ms max. (2 ms in alternate frequency mode)
Light source: Visible red LED
Sensitivity adjustment: 1-turn trimmer (240)
Detecting distance: 0 to 100 mm 3.94"
Spot diameter: Approx5mm? (when detecting distance is 50 mm )?Approx7mm? (when detecting distance is 100 mm )
Detectable object: Transparent and opaque materials
Hysteresis: 20% max. of detecting distance
Operation mode: LIGHT-ON/DARK-ON (selectable by wiring)
Indicator lamp: Output: Red LED, Stable operation: Green LED, Power supply: Red LED

Control output: NPN open-collector 100 mA max. (40 V max.)
Stability output: NPN: 50 mA (40 V) max.
Protection circuit: Reversed polarity, overcurrent protection
Rating - Power voltage: 12 to 24 VDC 10%
Rating - Current consumption.: 30 mA max.
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating ambient luminance: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85%, No condensation
Environmental resistance - Vibration: 10 to 55 Hz compound amplitude 1.5 mm 0.06", 2 hours for each of X, Y, Z axis
Case material: Glass-fiber reinforced plastic

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZ-101 . Santa Clara Systems carries 2,107 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
