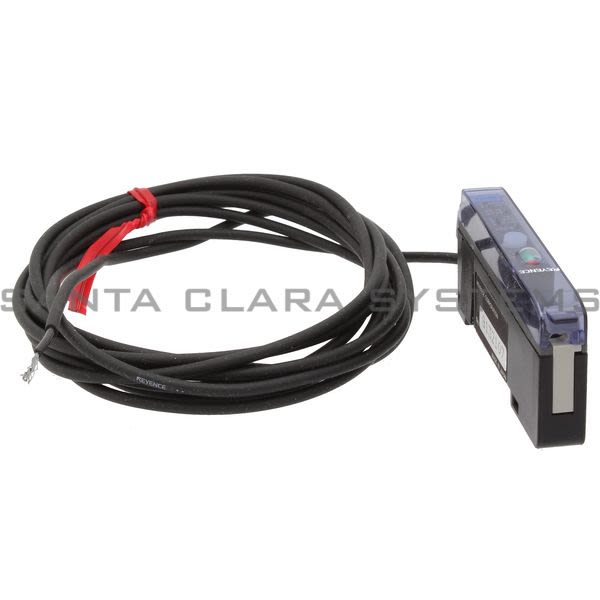

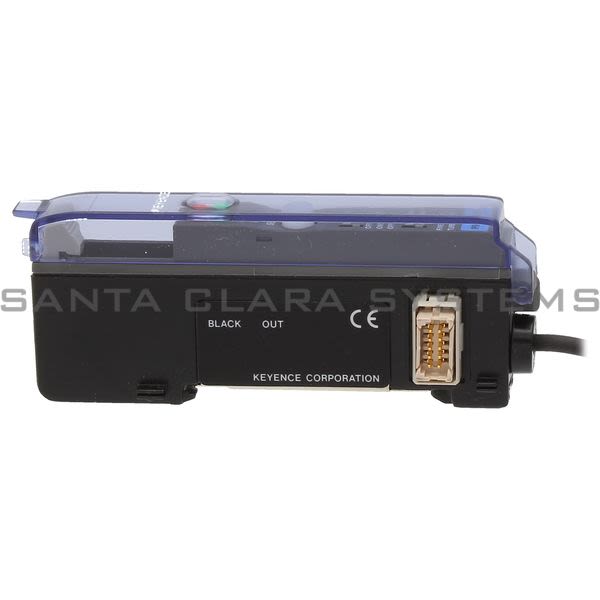

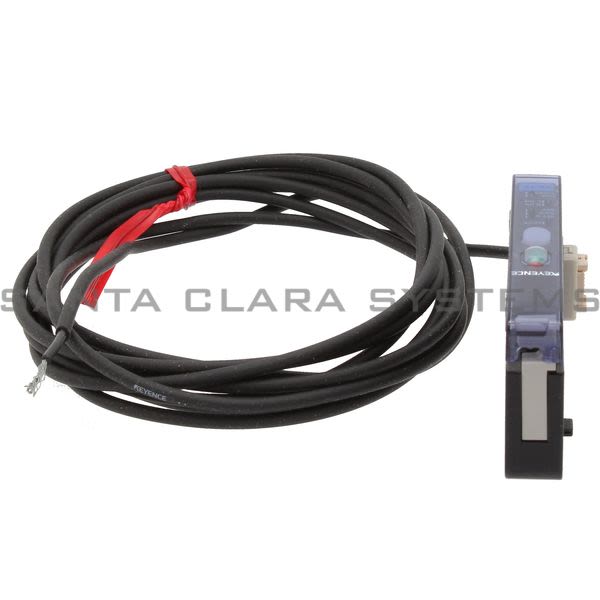

- Description: Photoelectric Sensor

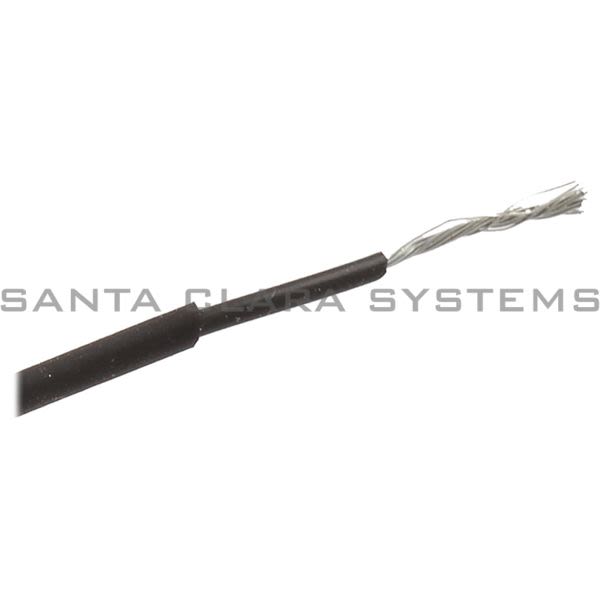

- Weight: Approx. 40 g (including 2m cable)
- Footnotes: *1 Power for the PS-T2 (P)/T0 is supplied through the PS-T1, FS-T1, FS-M1 or FS-R0. *2 When several units are connected, the ambient temperature requirement varies depending on the total number of units connected. When 3 to 10 units: -10 to +50C 14 to 122F When 11 to 16 units: -10 to +45C 14 to 113F When connecting several units, be sure to mount the units to a metallic DIN rail. Make sure that the output current does not exceed 20 mA.
- Type: 1-line connection
- Response time: 500 s
- Output: NPN
- Ambient temperature: -10 to +55C 14 to 131F, No freezing*2
- Relative humidity: 35 to 85% RH (No condensation)
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicator lamp: Output indicator: Red LED, Stable operation indicator: Green LED, Calibration indicator: Yellow LED
- Timer function: ON-delay: 40 ms, OFF-delay: 40 ms, Timer OFF (switch-selectable)
- External calibration input signal: Non-voltage input (contact, solid state)
- Control output: NPN:100 mA max. (40 V max.) Residual voltage: 1 V max.
- Stability output: NPN:50 mA max. (40 V max.) Residual voltage: 1 V max. *1
- Protection circuit: Reverse polarity protection, Over-current protection, Surge absorber
- Multiple connections to expansion units: Up to 16 expansion units can be connected (a total of 17 units)
- Rating - Power voltage: 12 to 24 VDC 10% *1
- Rating - Current consumption.: 35 mA max.
- Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
- Environmental resistance - Shock resistance: 500 m/s2 3280.8' in X, Y, and Z directions, 3 times respectively
- Case material: Body/Cover: Polycarbonate
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PS-T2 . Santa Clara Systems carries 2,107 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
