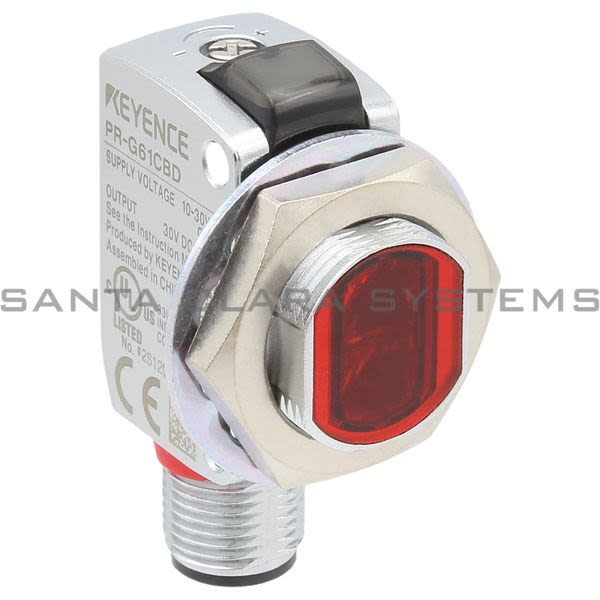

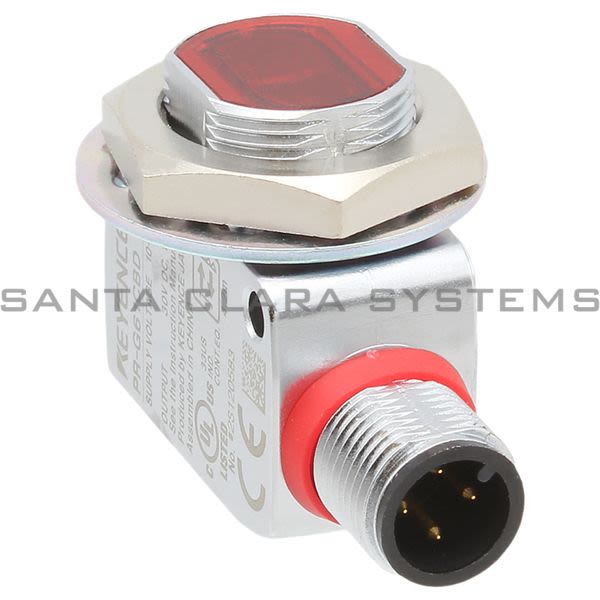

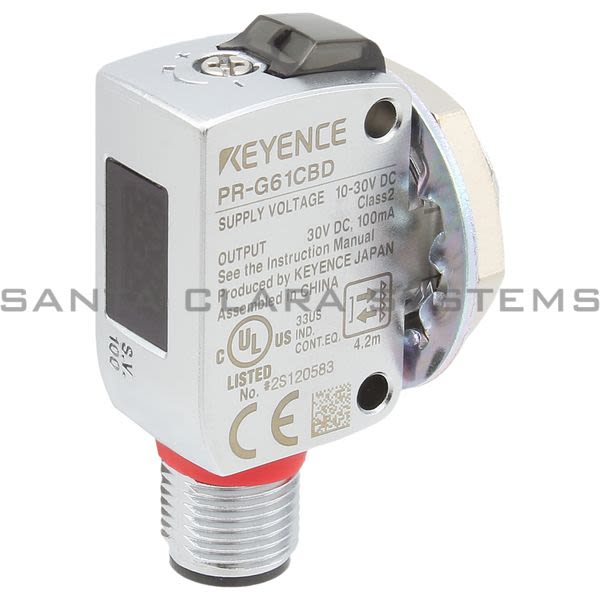

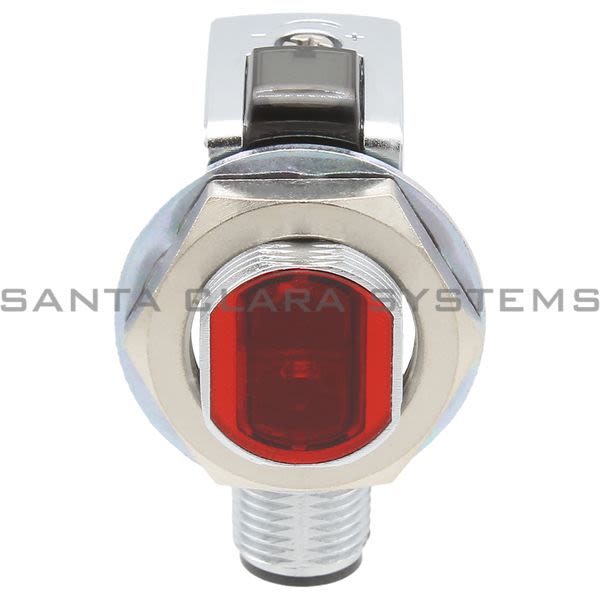

- Description: Photoelectric Sensors
- Weight: Approx. 45 g
- Footnotes: *1 For the threaded mount type sensors, the outputs are 1 NPN output and 1 PNP output. *2 Output 2 is not available on the threaded mount type or M8 3-pin type. *3 For the connector type, the enclosure rating varies depending on the cable that is used. *4 When the ambient temperature is 60C 140F or higher, the device should be powered with no more than 24 VDC and 50 mA.
- Type: Retro-reflective
- Response time: 0.5 ms
- Output: NPN + PNP (Bipolar)
- Light source: 4 elements, Red LED (630 nm)
- Accessories: Instruction Manual, M18 nut, Lock washer
- Sensitivity adjustment: Five-turn trimmer
- Shape: Threaded mount type
- Cable connection: M12 connector (4 pin)
- Detecting distance: 0.1 to 4.2 m 0.3' to 13.8' (when using R-2L)
- Number of control outputs: 2 (Dark-ON +Light ON)*1
- Output operation - Output 1: Dark-ON
- Output operation - Output 2: Light-ON*2
- Light interference prevention function: 2
- Indicator lamp: 7 segment display (0 to 999), output indicator (yellow)
- Control output: NPN + PNP open collector 30 VDC or less, 100 mA or less Residual voltage: 1.2 V or less at less than 10 mA, 2 V or less at 10 to 100 mA
- Protection circuit: Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection
- Rating - Power voltage: 10 to 30 VDC including 10% ripple (P-P)
- Rating - Power consumption: 450 mW max. (15 mA max. at 24 V, 21 mA max. at 12 V)
- Environmental resistance - Enclosure rating: IP68 (IEC60529), IP69K (DIN40050-9), 4, 6, 13 (NEMA250)*3
- Environmental resistance - Operating ambient luminance: Incandescent lamp 5,000 lux or less, sunlight: 20,000 lux or less
- Environmental resistance - Operating temperature range: -20 to +70C -4 to 158F (No freezing) *4
- Environmental resistance - Ambient temperature for storage: -20 to +70C -4 to 158F
- Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
- Environmental resistance - Shock resistance: 1000 m 3280.8'/s2 in X, Y, and Z directions, 6 times respectively
- Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
- Environmental resistance - Insulation resistance: 20 M? or more (500 VDC)
- Environmental resistance - Withstand voltage: 1,000 VAC 50/60Hz 1min
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PR-G61CBD . Santa Clara Systems carries 2,107 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
