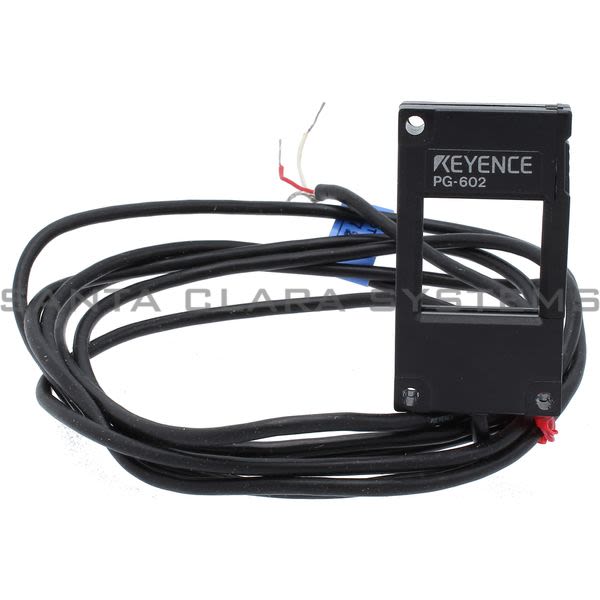

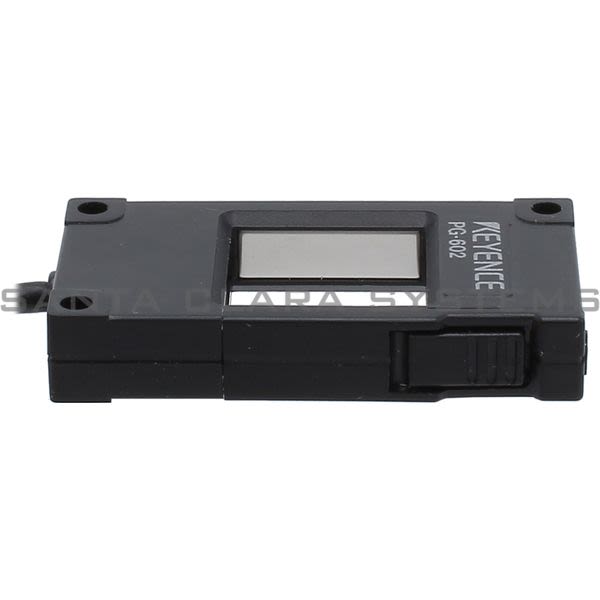

PG-602

Keyence - Sensor Head

Current response time:

8 Minutes 19 Seconds

Description: Sensor Head

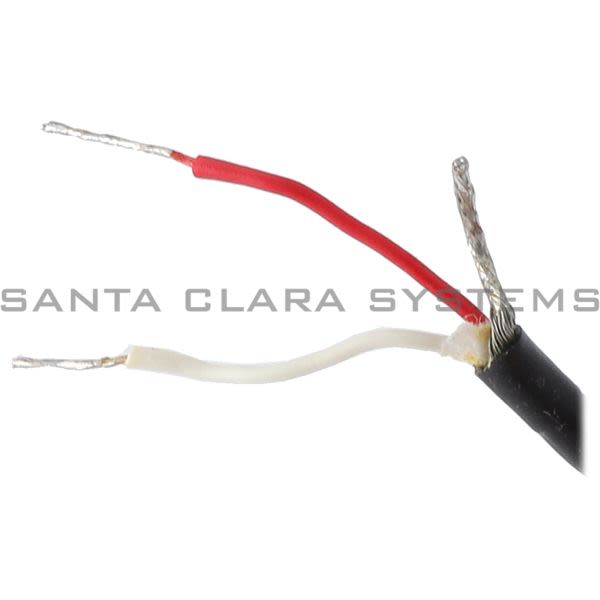

Weight: Sensor head (including 2-m 6.6' cable): Approx. 40 g,
Footnotes: *1 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP Output Converter. One-shot output (ON when target passes through sensor) *2 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP Output Converter.
Type: Sensor head
Light source: Infrared LED
Material: Polycarbonate
Sensitivity adjustment: 1-turn trimmer
Amplifier unit: PG-610
Detecting area: 21 x 21 mm 0.83" x 0.83"
Minimum detectable object: 0.5 mm 0.02" dia. min. opaque materials
Indicator lamp: Output: Red LED, Stable operation: Green LED

Output - Control output: NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*1
Output - Self-diagnostic output: NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*2
Output - Response time: 0.2 ms*2
Off-delay time: 0.5 / 70 ms (selectable)
Rating - Power voltage: 12 to 24 VDC 10%
Rating - Current consumption.: 40 mA max.
Environmental resistance - Operating ambient luminance: Fluorescent lamp: 10,000 lux max., Sunlight: 1,500 lux max.
Environmental resistance - Operating temperature range: -10 to 60C 14 to 140F (No freezing)
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis
