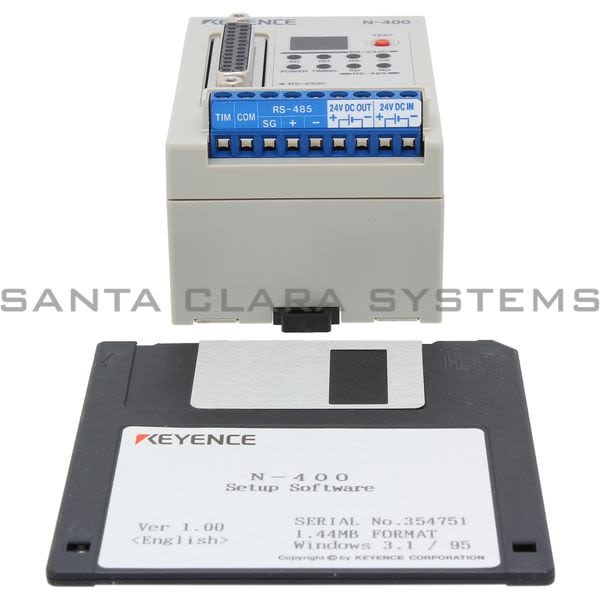

- Description: Multi Drop Controller
- Weight: Approx. 180 g
- Ambient temperature: 0 to 50*C (32 to 122*F), No freezing
- Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude in X, Y, and Z directions, respectively
- Connectable bar code reader: BL-700 series, BL-500, series, BL-180
- Trigger input - Rated input: 15 to 26 VDC, 10 mA max.
- Trigger input - Max. OFF current: 1.0 mA
- RS-232C - Applied standards: EIA, RS-232C standards
- RS-232C - Synchronization: Start-stop (full-duplex)
- RS-232C - Transmission code: ASCII code
- RS-232C - Baud rate: 600/1200/2400/4800/9600/19200/31250/38400 bps
- RS-232C - Date length: 7 or 8 bits
- RS-232C - Parity check: Even/Odd/None
- RS-232C - Stop bit length: 1 or 2 bits
- RS-485 - Applied standards: EIA, RS-485 standards
- RS-485 - Synchronization: Start-stop (full-duplex)
- RS-485 - Transmission code: ASCII code
- RS-485 - Baud rate: 600/1200/2400/4800/9600/19200/31250/38400 bps
- RS-485 - Data length: 7 or 8 bits
- RS-485 - Parity check: Even/Odd/None
- RS-485 - Stop bit length: 1 or 2 bits
- RS-485 - Max. number of connectable units: 31
- RS-485 - Max. total extension distance: 1.2 km
- Relative humidtiy: 35 to 85%, No condensation
- Ambient atmoshere: No dust or corrosive gas
- Power supply voltage: 24 V DC + 10% / -20%
- Current consumption: 140 mA max.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on N-400K . Santa Clara Systems carries 2,100 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
