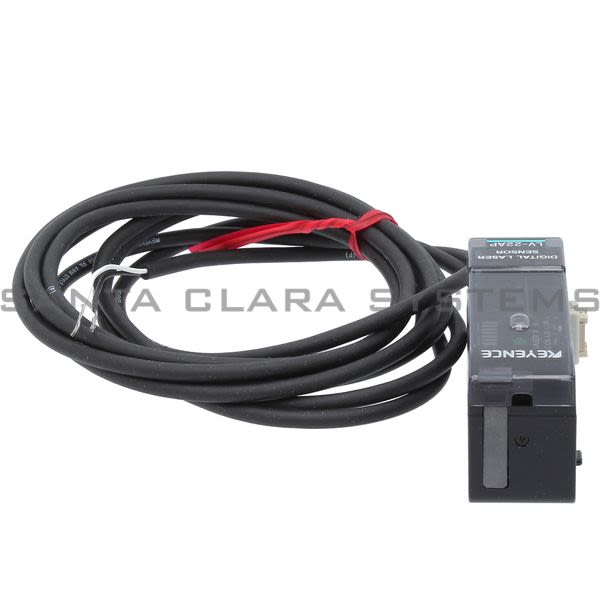

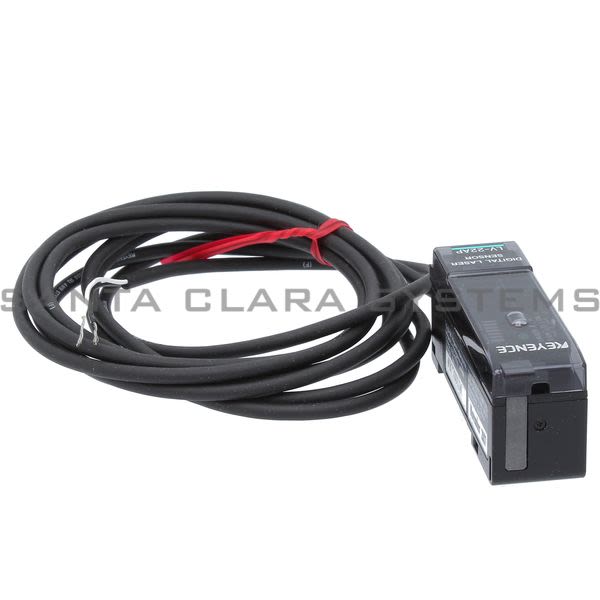

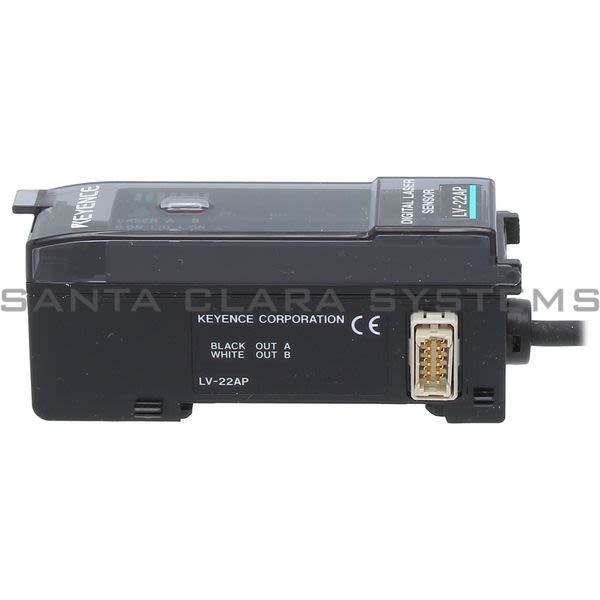

LV-22AP

Keyence - Digital Laser Sensor

Current response time:

5 Minutes 8 Seconds

Description: Digital Laser Sensor
Weight: Approx 120 g
Type: PNP output
Main unit/expansion unit: Expansion unit (1 line)
Control output: PNP open-collector x 2 channels, 30 VDC max., max. 100 mA, residual voltage (1.0 V max.)
Response speed: FINE : 80 s , TURBO : 500 s , SUPER , TURBO : 4 ms
Number of interference preventive units: FINE : None , TURBO : 2 units , SUPER : 4 units
Protection circuit: Reversed polarity protection, over-current protection, surge absorber

Unit expansion: Up to 7 additional expansion units can be installed (8 units including the main unit),
Rating - Power voltage: 12 to 24 VDC ripple (P-P) 10% max. (For the LV-20A/22A/22AP, the power supply voltage is supplied from the main unit.)
Rating - Power consumption: 1.5 W max. (125 mA max. for 12 V, 62.5 mA max. for 24 V)
Environmental resistance - Ambient temperature: 35 to 85 % RH (No condensation)
Environmental resistance - Operating ambient humidity: -10 to 55C <color>14 to 131F</color>, No freezingWhen several units are connected, the ambient temperature requirement varies depending on the total number of units connected. When 2 to 5 units: -10 to +50C <color>14 to 122F</color> When 6 to 7 units: -10 to +45C <color>14 to 113F</color> When connecting several units, be sure to mount the units to a metallic DIN rail. Make sure that the output current does not exceed 20 mA.</foot>
Material - Main unit: Polycarbonate
Material - Case: Polycarbonate

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LV-22AP . Santa Clara Systems carries 2,105 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
