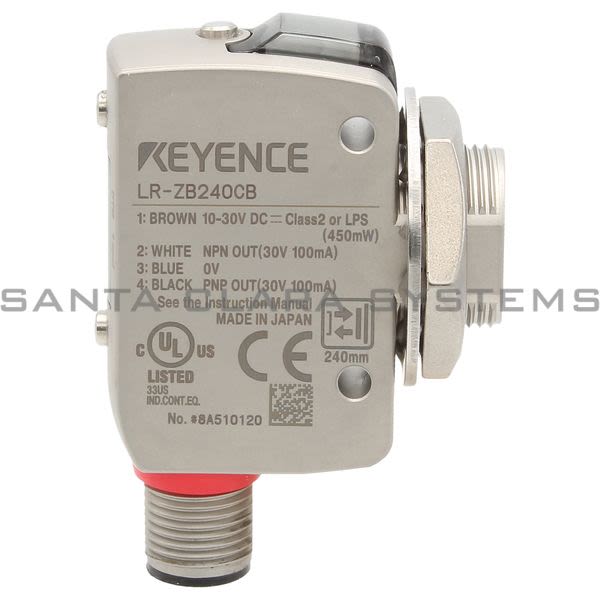

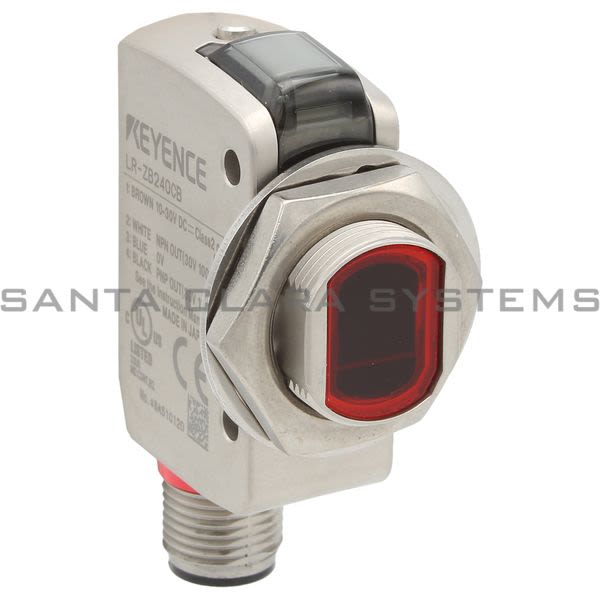

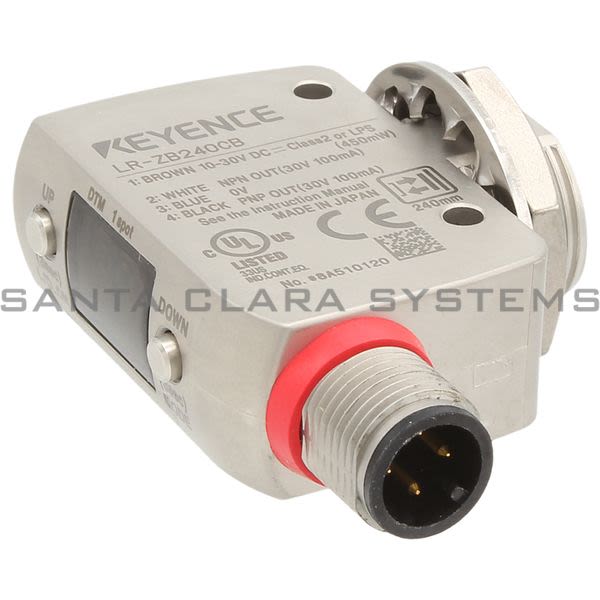

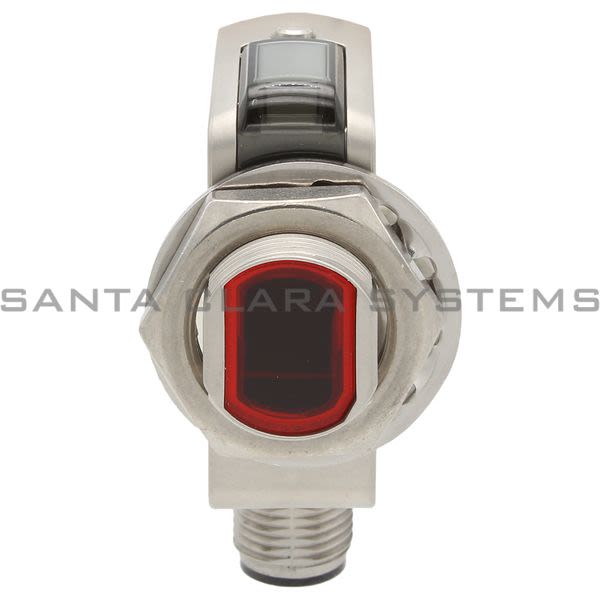

- Description: Self Contained CMOS Laser Sensor
- Weight: Approx. 75 g
- Footnotes: *1 Display readings can be used as a guide for the detecting distance. When the setting value is tuned, the readout shifts. When the value exceeds "-99", "-FF" is displayed. *2 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50. *3 Have passed resistance tests with cleaning agents from multiple manufactures. *4 When the response time is 10 ms
- Type: Distance based laser sensor
- Response time: 1.5 ms / 10 ms / 50 ms selectable
- Output: Bipolar (NPN+PNP)
- Material: Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating, Packing/Connector ring: FKM, Nut: SUS316L, Lock washer: SUS304
- Appearance: M18 Threaded mount
- Cable connection: M12 connector, 4-pin
- Detectable distance: 25 to 240 mm 0.98" to 9.45" (215 to 0)*1
- Standard detectable deviation: 25 to 170 mm 0.98" to 6.69": 9 mm 0.35" 170 to 240 mm 6.69" to 9.45": 25 mm 0.98"
- Display resolution: 1 to 3 (1 to 3 mm 0.04" to 0.12")
- Spot size: Approx. 2.4 1.2 mm 0.09" 0.05" at 240 mm 9.45"
- Light source - Type: Red laser (660 nm)
- Light source - Laser class: Class 1 laser product (IEC60825-1, FDA (CDRH) Part1040.10*2)
- Function - Indicator: 3-digit 7-segment display (red), output indicator (yellow), DATUM indicator (orange), 1 spot indicator (green)
- Function - Timer: OFF/ON delay/OFF delay/One-shot
- Specifications - Power voltage: 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
- Specifications - Power consumption: 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V)
- Specifications - Control output: NPN+PNP Open collector, Applied voltage 30 VDC or less, Control current 100 mA or less, Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA
- Specifications - Protection circuit: Protection against reverse power connection, output overcurrent, output surge, reverse output connection
- Specifications - Output operation: Light-ON / Dark-ON selectable
- Specifications - External input: None
- Environmental resistance - Enclosure rating: IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*3, Diversey*3
- Environmental resistance - Ambient light: Incandescent lamp: 2000 lux or less Sunlight: 4000 lux or less*4
- Environmental resistance - Ambient temperature: -10 to +50C 14 to 122F (No freezing)
- Environmental resistance - Storage temperature: -25 to +75C -13 to 167F (No freezing)
- Environmental resistance - Ambient humidity: 35 to 85%RH (No condensation)
- Environmental resistance - Shock resistance: 1000 m/s2 in X, Y, Z axis directions respectively 6 times
- Environmental resistance - Vibration resistance: 10 to 55 Hz Double amplitude 1.5 mm 0.06" in the X, Y, Z axis directions respectively, 2 hours
- Environmental resistance - Insulation resistance: 20 M? or more (500 VDC)
- Environmental resistance - Withstand voltage: 1000 VAC 50/60 Hz 1 min
- Accompanying items: Instruction Manual, Certification/Identification label (FDA)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LR-ZB240CB . Santa Clara Systems carries 2,105 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
