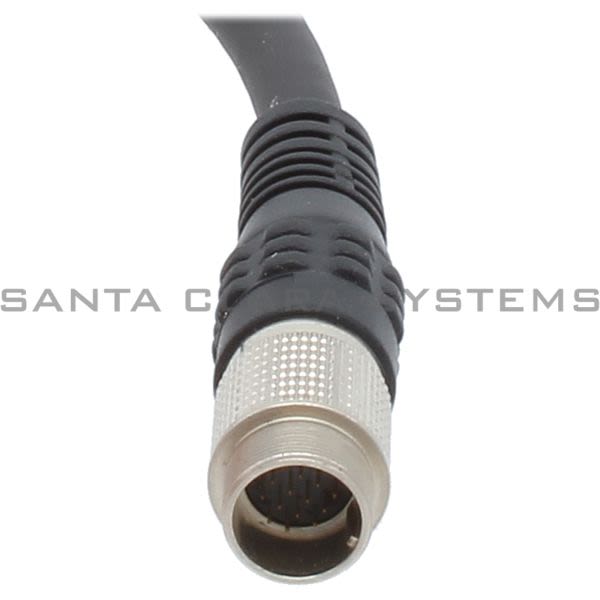

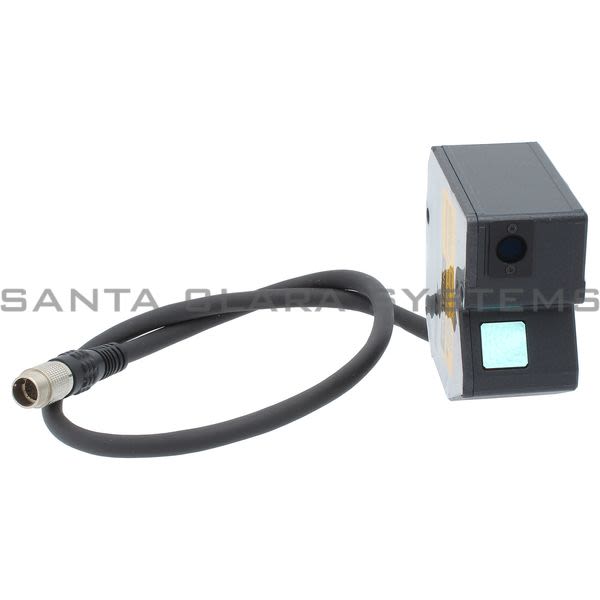

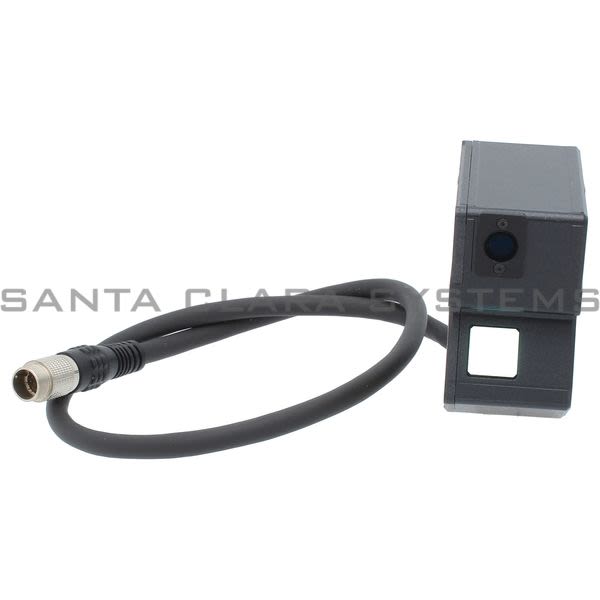

- Description: Triangularr Laser
- Weight: Approx 260 g
- Footnotes: *1 Measurement range when the sampling cycle is 20 ?s or more. *2 This value is obtained when the KEYENCE standard target (White diffuse workpiece or workpiece with a metal mirror surface only for the LK-H008/LK-H008W) is measured in the normal measurement mode. *3 This value is obtained when the KEYENCE standard target (White diffuse workpiece or workpiece with a metal mirror surface only for the LK-H008/LK-H008W) is measured at the reference distance with the number of averaging measurements set to 16384. The value in parentheses is a typical example of a measurement with the number of averaging measurements set to 65536 and the sampling cycle to 200 ?s.
- Material: Aluminum die-cast
- Mounting mode: Diffuse reflective
- Reference distance: 50 mm 1.97"
- Measuring range: 10 mm 0.39"*1
- Light source - Type: Red semiconductor laser
- Light source - Wavelength: 655nm
- Light source - Laser class (JIS C6802): Class 2
- Light source - Output: 0.95mW
- Spot diameter (at standard distance): 50 ?m
- Linearity: 0.02% of F.S. (F.S.= 20 mm 0.79")*2
- Repeatability: 0.025 ?m*3
- Sampling cycle: 2.55/5/10/20/50/100/200/500/1000 ?s (9 steps selectable)
- Temperature characteristics: 0.01% of F.S./C (F.S.= 20 mm 0.79")
- Environmental resistance - Enclosure rating: IP67
- Environmental resistance - Operating ambient luminance: Incandescent lamp or fluorescent lamp: 10000 lux max.
- Environmental resistance - Operating temperature range: 0 to +50C 32 to 122?F
- Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
- Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LK-H052 . Santa Clara Systems carries 2,107 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
