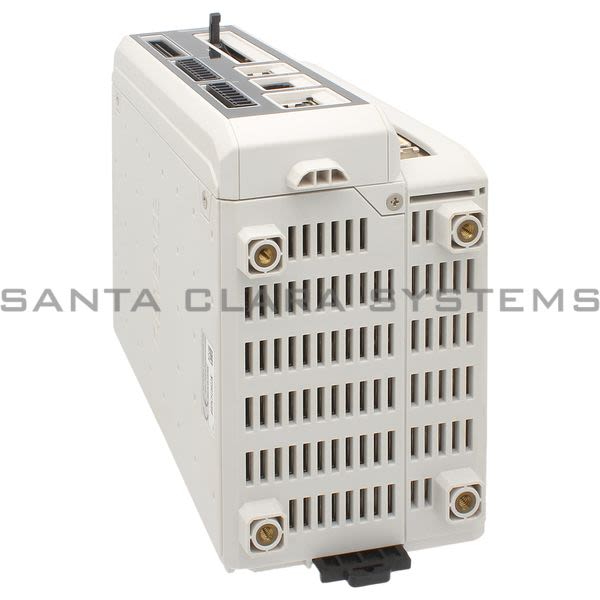

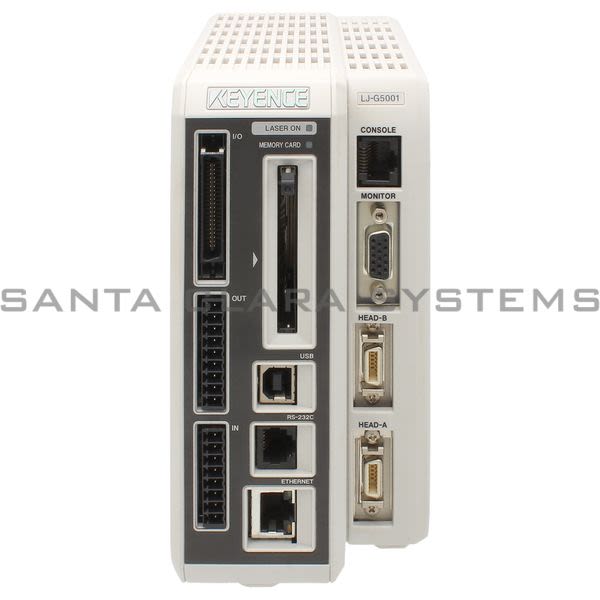

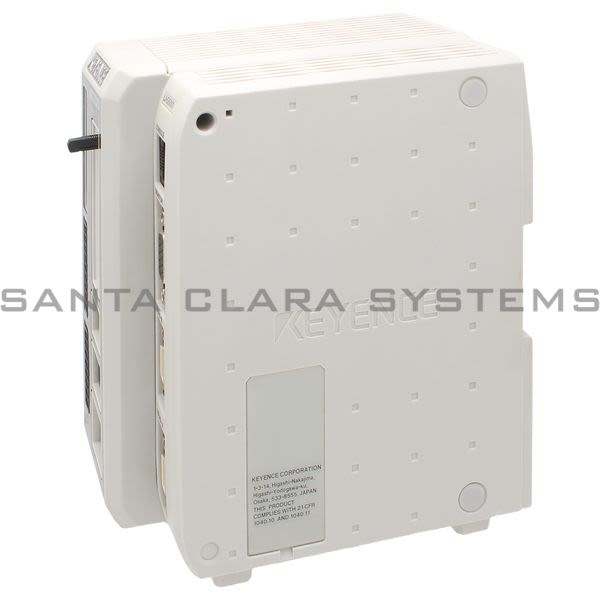

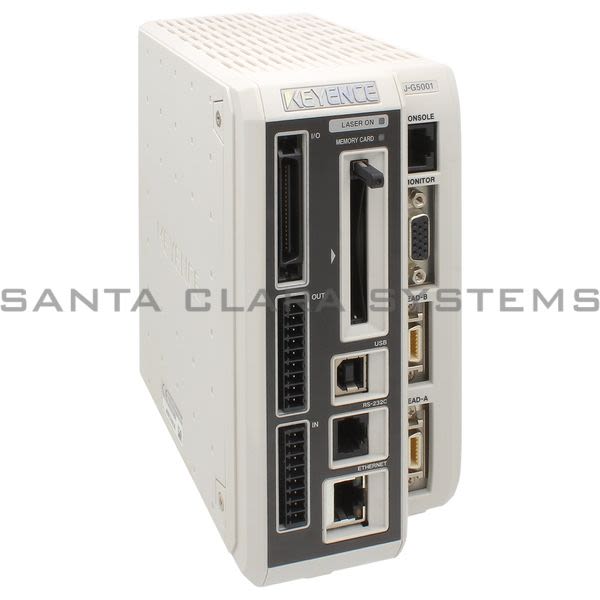

LJ-G5001

Keyence - Laser Sensor

Current response time:

8 Minutes 45 Seconds

Description: Laser Sensor
Weight: Approx 1050 g
Footnotes: *1 When LJ-G015 or LJ-G015K is connected only. When other sensor heads are connected, the minimum display unit is 1 m. *2 (NPN model) The rating of non-voltage input: 1 V or less ON voltage, 0.6 mA or less OFF current. (PNP model) The rating of voltage input: 10.2 V or more ON voltage (26.4 V max.) 0.6 mA or less OFFcurrent. *3 Time-sharing output of judgment results or binary measured data. The rating of the NPN open-collector output: 50 mA max. (30 V max.), residual voltage of 1 V max. The rating of the PNP open-collector output: 50 mA max. (30 V max.), residual voltage of 1 V max. The rating of the non-voltage input: 1 V or less ON voltage, 0.6 mA or less OFF current (Trigger input terminal: 1 V or less ON voltage, 1.0 mA or less OFF current) The rating of the voltage input: 26.4 V maximum rating, 10.8 V or less ON voltage, 0.6 mA or less OFF current (Trigger input terminal: 26.4 V maximum rating, 10.8 V or less ON voltage, 1.0 mA or less OFF current) *4 This is dedicated for connection with IV-series sensor.
Head compatibility: Measuring units are interchangeable without factory recalibration.
Number of connectable sensors: Maximum of 2 units
Display - Minimum display unit: 0.1 m *1, 0.001 mm2, 0.01 (Inch mode : 0.01 Mil, 0.00001 inch)
Display - Maximum display range: 99999.9 mm, 999999 mm2, 99999.9 (Inch mode : 9999.99 Mil, 999.999 inch)
Input terminal block - Laser remote interlock input: Non-voltage or voltage input *2.
Input terminal block - Trigger input: For sensor head A, non-voltage input
Input terminal block - Timing 1 input: Non-voltage input
Input terminal block - Auto-zero 1 input: Non-voltage input
Input terminal block - Reset input: Non-voltage input
Output terminal block - Analog voltage output: 10 V x 2 outputs, output impedance: 100 ?
Output terminal block - Total judgment output: NPN open-collector output
Output terminal block - Error output: NPN open-collector output (N.C.)
Output terminal block - Process output: NPN open-collector output
Output terminal block - Trigger input enable output: For sensor head A, NPN open-collector output
Output terminal block - Adjusted error output: For sensor head A, NPN open-collector output
Expansion connector - Timing 2 input: Non-voltage input

Expansion connector - Auto-zero 2 input: Non-voltage input
Expansion connector - Trigger input: For sensor head B, non-voltage input
Expansion connector - Program switching input: Non-voltage input, 4 inputs
Expansion connector - Memory card save input: Non-voltage input
Expansion connector - Laser-Off input: For sensor head A/B, non-voltage input
Expansion connector - Judgment/Binary output: 3-level judgment output: OUT1 to OUT8, total judgment output Binary output: OUT1 to OUT8 measured data output (21 bits) NPN open-collector output*3
Expansion connector - Strobe output: NPN open-collector output
Expansion connector - Trigger input enable output: For sensor head B, NPN open-collector output
Expansion connector - Adjusted error output: For sensor head B, NPN open-collector output
Analog RGB monitor output: SVGA (800 600 pixels)
RS-232C interface: Measured data output and control input/output (Maximum baud rate: 115200 bps, selectable)
USB interface: Supports USB 2.0 Hi-Speed (compatible with USB 1.1 Full Speed)
Ethernet interface: 100BASE-TX/10BASE-T*4
Memory card: Compatible with NR-M32 (32 MB), GR-M256 (256MB), and NR-M1G (1GB). (with FAT32)
Major functions: Sensor heads calculation, Profile adjustment, Filter, Smoothing, Averaging, Position adjustment, OUT name change, Measurement mode selection (Height, position, gap, width, center position, section area, intersection, angle, profile comparison, profile tracking), Scaling, Average, Measurement, Measured value alarm, Tolerance setting, Auto-zero, Storage (data/profile), Memory card saving, Program memory, Trigger mode change, Mutual interference prevention, Measuring range change, Calibration, Laser light adjustment, Sampling time setting, Mask, Profile alarm setting, Inclination adjustment, Height adjustment, Display language switch, Setting support software connection, Trigger pitch/Measuring time display, etc.
Rating - Power voltage: 24 VDC 10%, Ripple: 10% (P to P) or less
Rating - Maximum current consumption: 800 mA or less with 1 sensor head/1 A or less with two sensor heads
Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
