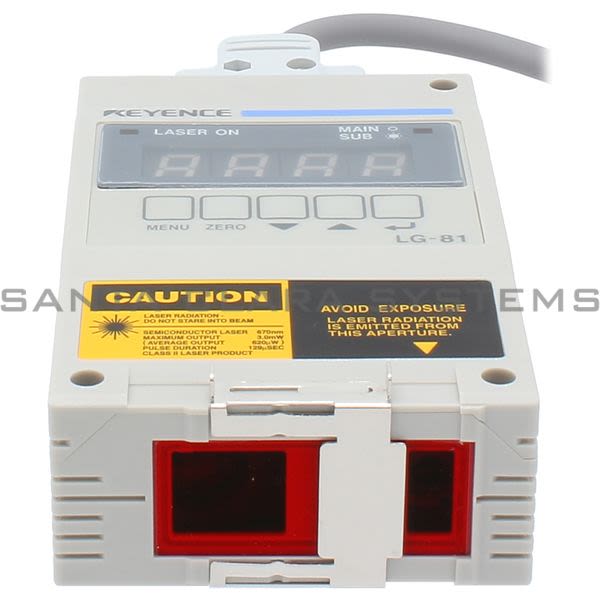

LG-81

Keyence - Laser Sensor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Laser Sensor

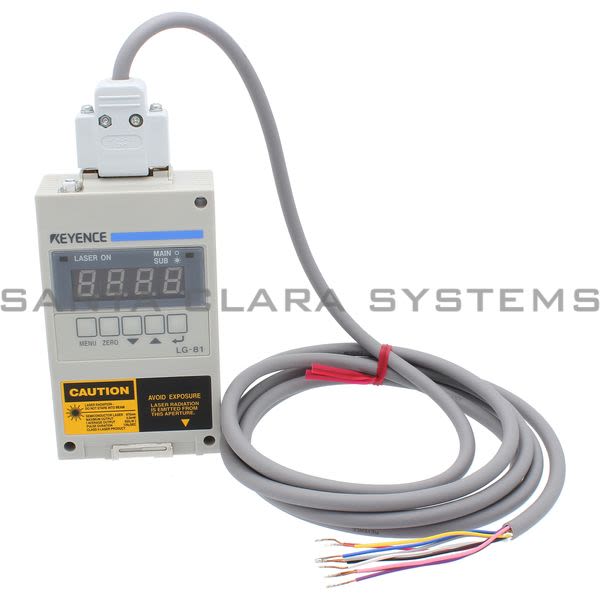

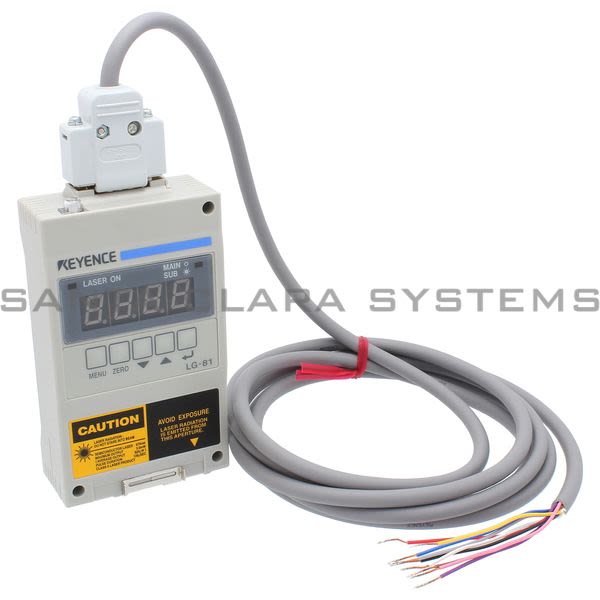

Weight: Approx 300 g (including 2-m 6.6' cable)
Footnotes: *1 At the reference distance *2 With white mat paper at the reference distance *3 This varies according to the set number of averaging measurements.
Response time: 10 ms minimum (switchable between 4 levels)
Reference distance: 80 mm3.15"
Measurement range: ±20 mm0.787"
Light source - Type: Red semiconductor laser
Light source - Wavelength: 670 nm (visible light), Class 2
Light source - Control output: 1.4 mW maximum (0.24 mW average)
Spot diameter: 1 × 2 mm0.039" × 0.079"*1
Indication system: ±0.1 mm±0.004" or less (with white mat paper)
Display resolution: 0.1 mm 0.004"*2
Display range: -99.9 to +99.9
Display speed: 40 times/ms, 80 times/ms, 160 times/ms, 640 times/ms*3
Display power: 2-color, 7-segment LED (character height: 10 mm0.394")

Control input - Timing input: NPN open-collector or non-voltage contact signal
Control input - Auto-zero input: NPN open-collector or non-voltage contact signal
Control input - Tolerance selector input: NPN open-collector or non-voltage contact signal
Control output: 100 mA max. (40 V max.) Residual voltage: 1 V max.
Control output - Alarm output: Maximum NPN open-collector output: 100 mA (40 V or less), residual voltage: 1 V or less (N.C.)
Temperature characteristics: 0.03% of F.S./°C
Main functions: Auto zero, scaling, tolerance memory
Rating - Power voltage: 12 VDC ± 10%, ripple (P-P): 10% or less
Rating - Current consumption.: 200 mA or less
Environmental resistance - Operating ambient luminance: Incandescent lamp or fluorescent lamp: 2,500 lux or less
Environmental resistance - Operating temperature range: 0 to +40? 32°F to 104°F
Environmental resistance - Operating ambient humidity: 35 to 85%RH (no condensation)
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 2 hours in each of the X, Y, and Z directions
Case material: Glass reinforced plastic
