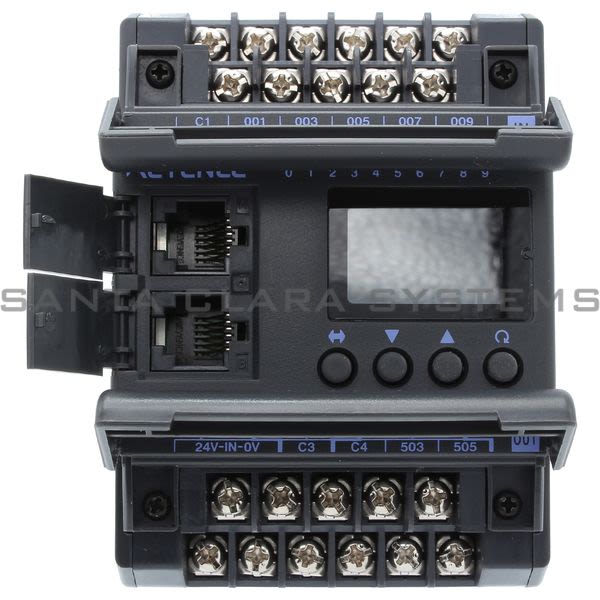

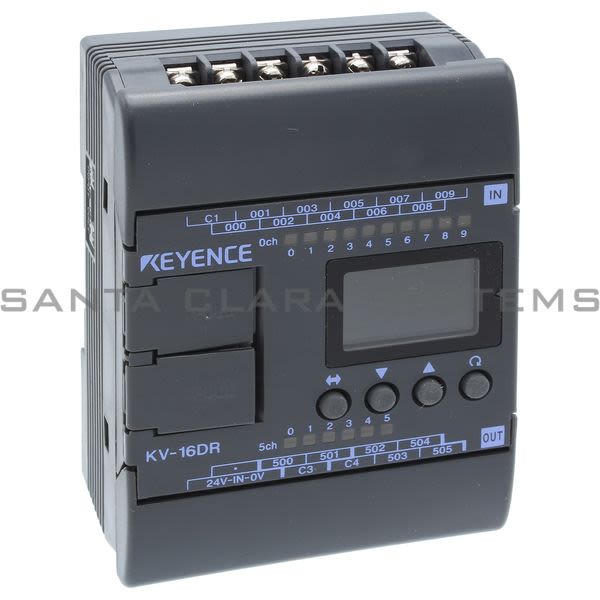

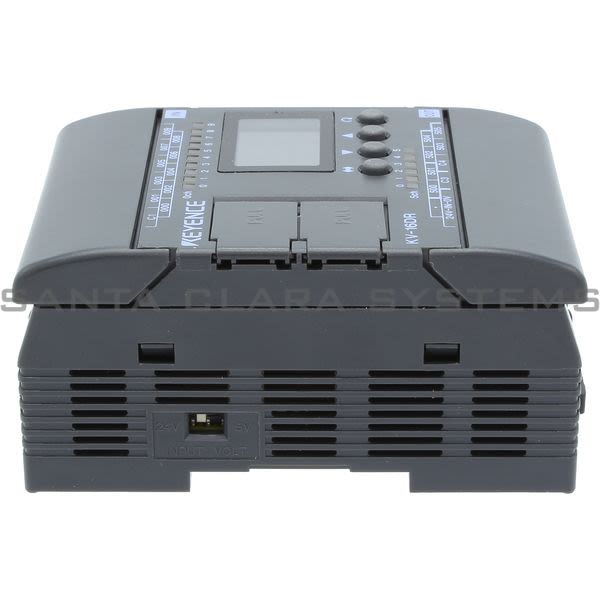

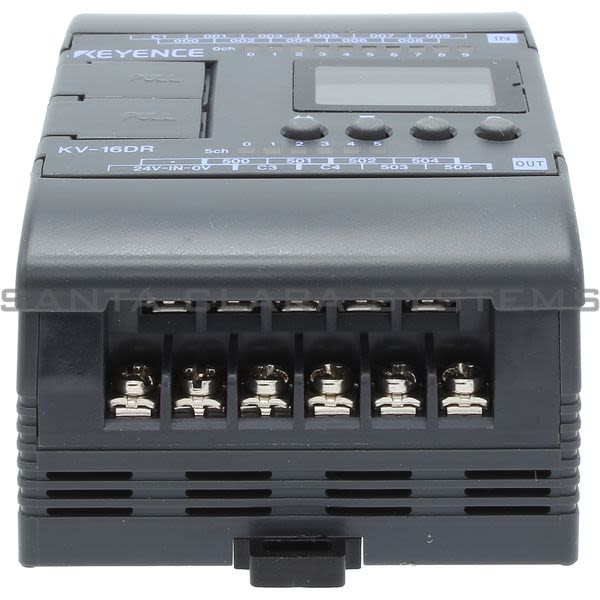

KV-16DR

Keyence - PLC Expansion Unit

Current response time:

By 5AM PT on Friday

Emergency?

Description: PLC Expansion Unit
Footnotes: *1 Conforms to JIS B 3502, IEC61131-2 Number of sweeps: 10 times respectively in the X, Y, and Z directions, 80 minutes
Type: DC power supply type base unit
Input power supply voltage - Base unit: 24 VDC (+ 10%, -20%)
Allowable instantaneous outage time: Less than 2 ms
General specifications - Internal current consumption (24 VDC conversion value) - Base unit: 120mA or less
General specifications - Internal current consumption (24 VDC conversion value) - Expansion unit: KV-E4X 20mA or less KV-E8X 25mA or less KV-E16X 35mA or less KV-E4T 25mA or lessKV-E8T (P) 40mA or less KV-E16T 60mA or less KV-E4R 40mA or less KV-E8R 70mA or lessKV-E16TP 70mA or less KV-E4XT (P) 30mA or less KV-E4XR 45mA or less KV-E16R 110mA or less
General specifications - Internal current consumption (24 VDC conversion value) - Other: Operator panel KV-D20: 60 mA or less KL link adapter KL-N10V: 35 mA or less Programming console KZ-P3: 65 mA or less
General specifications - Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F (no freezing), 0 to 45C 32 to 113F (KZ-P3)
General specifications - Environmental resistance - Operating ambient humidity: 35 to 85% RH (no condensation)
General specifications - Environmental resistance - Ambient temperature for storage: -20 to 70C -4 to 158F (no freezing)
General specifications - Environmental resistance - Withstand voltage: 1,500 VAC for 1 minute (between the power supply terminal and the I/O terminals and between all the external terminals and the case)

General specifications - Environmental resistance - Noise resistance: 1,500 Vp-p or more, pulse width: 1 s, 50 ns (by way of a noise simulator), conforms to EN standards (EN 61000-4-2/-3/-4/-6)
General specifications - Environmental resistance - Shock resistance: Conforms to JIS C 0041, 150 m/s2 (15 G), operating time: 11 ms, 2 times in each of the 3 axial directions
General specifications - Weight - Base unit: Approx 190g
General specifications - Insulation resistance: 50 M? or more (tested with a 500 VDC megger, between the power supply terminal and the input terminal and between all the external terminals and the case)
General specifications - Environmental resistance - Ambient operating atmosphere: Minimal amount of dust and corrosive gas present
General specifications - Weight - Expansion unit: KV-E4X: Approx 80 g, KV-E8X: Approx 100 g, KV-E16X: Approx 130 g, KV-E4T: Approx 80 g, KV-E8T (P): Approx 100 g, KV-E16T (P): Approx 130 g, KV-E4R: Approx 100 g, KV-E8R: Approx 130 g, KV-E16R: Approx 190 g, KV-E4XT (P): Approx 100 g, KV-E4XR: Approx 120 g
General specifications - Weight - Other: KZ-P3 Approx 230g KV-D20 Approx 160g KL-N10V Approx 80g
General specifications - Vibration resistance - Intermittent vibration - Frequency: 10 to 57 Hz: Amplitude: 0.075 mm*1
General specifications - Vibration resistance - Intermittent vibration - Frequency: 57 to 150 Hz: Acceleration: 9.8 m/s2*1
General specifications - Vibration resistance - Continuous vibration - Frequency: 10 to 57 Hz: Amplitude: 0.035 mm*1
General specifications - Vibration resistance - Continuous vibration - Frequency: 57 to 150 Hz: Acceleration: 4.9 m/s2*1
