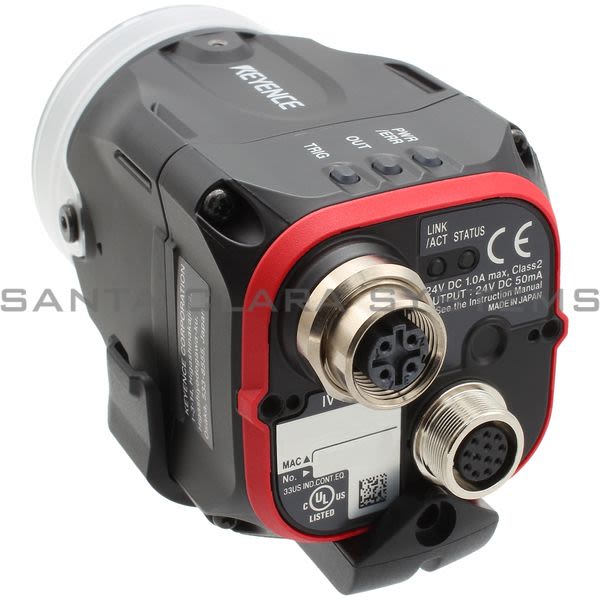

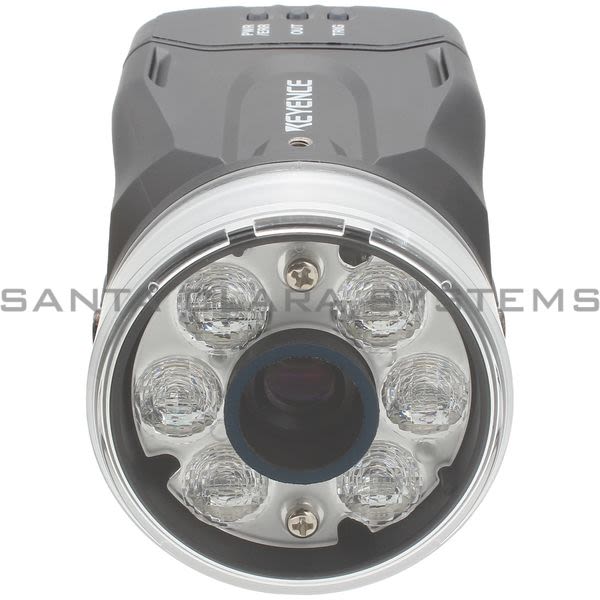

IV-2000MA

Keyence - Sensor Head

Current response time:

10 Minutes 12 Seconds

Description: Sensor Head
Weight: Approx. 270 g
Footnotes: *1 The focusing position can be automatically adjusted at the time of installation. Deactivated during the operation. Focusing position can be registered by program. *2 Color type only *3 Possible with both the color type and monochrome type *4 Tools can be installed by programs. *5 When using the FTP client function: 210 pictures *6 Saves to the memory in the sensor. The images saved in the sensor can be backed up to the USB memory installed to the intelligent monitor (IV-M30) or to the PC by the software for IV (IV-H1). *7 This can be displayed on the intelligent monitor (IV-M30) or by software for the IV/IV-G Series (IV-H1). *8 Simulator can be used with the IV software (IV-H1). *9 This is for connection with the intelligent monitor (IV-M30) or software for IV (IV-H1). *10 Except when IV-G dome attachment (IV-D10) is mounted *11 Except when polarized filter attachment (OP-87436/OP-87437) is mounted
Type: Long range
Output: Open collector output NPN/PNP is switchable, N.O./N.C. is switchable For open collector NPN output: Maximum rating 26.4 V 50 mA, remaining voltage 1.5 V or lower For open collector PNP output: Maximum rating 26.4 V 50 mA, remaining voltage 2 V or lower
Material: Main unit case: Aluminum die-casting, Packing: NBR, Front cover: Acrylic, Mounting adapter: POM
Installed distance: 300 to 2000 mm 11.81" to 78.74"
View: Installed distance 300 mm 11.81": 45 (H) 33 (V) mm 1.77" (H) 1.30" (V) to installed distance 2000 mm 78.74": 300 (H) 225 (V) mm 11.81" (H) 8.86" (V)
Image sensor: 1/3 inch monochrome CMOS
Image sensor - Pixel: 752 (H) 480 (V) 29.61"(H) x 18.90"(V)
Focus adjustment: Auto*1
Exposure time: 1/10 to 1/25000
Lights - Illumination: Infrared LED
Lights - Lighting method: Pulse lighting/DC lighting is switchable
Tools - Type: Shape detection, color area*2, area*3, position adjustment
Tools - Number: Detection tools: 16 tools, position adjustment tool: 1 tool*4
Switch settings (programs): 32 programs
Image history - Numbers: 300 images*5*6
Image history - Condition: NG only/All is selectable*6

Analysis information: OFF/Statistics/Histograms is switchable Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs *7
Other functions: HDR, HighGain, Color filters*2, Digital zoom*3, Brightness correction, Tilt correction, White balance*2, Mask outline, Mask area, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator*8
Indicators: PWR/ERR, OUT, TRIG, STATUS, LINK/ACT
Input: Non-voltage input/voltage input is switchable For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit) For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)
Input - Inputs: 6 inputs (IN1 to IN6)
Input - Function: IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions Assignable functions: Program switching, Clear error, External master image registration
Output - Outputs: 4 outputs (OUT1 to OUT4)
Output - Function: Enable by assigning the optional functions Assignable functions: Total judge result, RUN, BUSY, Error, Position adjustment result, Judge result of each tool, Result of the logical operation of each tool
Ethernet - Standard: 100BASE-TX/10BASE-T*9
Ethernet - Connector: M12 4pin connector*9
Network function: FTP client, EtherNet/IPTM, PROFINET
Rating - Power voltage: 24 VDC 10% (including ripple)
Rating - Current consumption: 0.6 A or less
Environmental resistance - Ambient temperature: 0 to +50C 32 to 122F (No freezing)
Environmental resistance - Relative humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude, 2 hours each for X, Y, and Z axes*10
Environmental resistance - Shock resistance: 500 m/s2 6 different directions in 3 times*10
Environmental resistance - Enclosure rating: IP67*11
