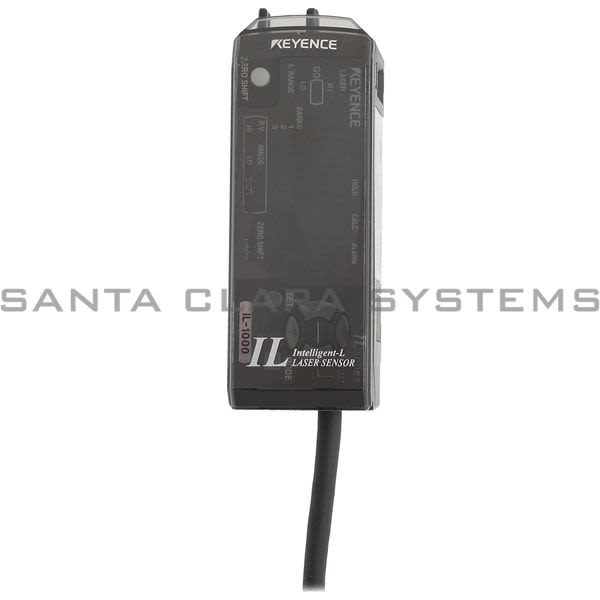

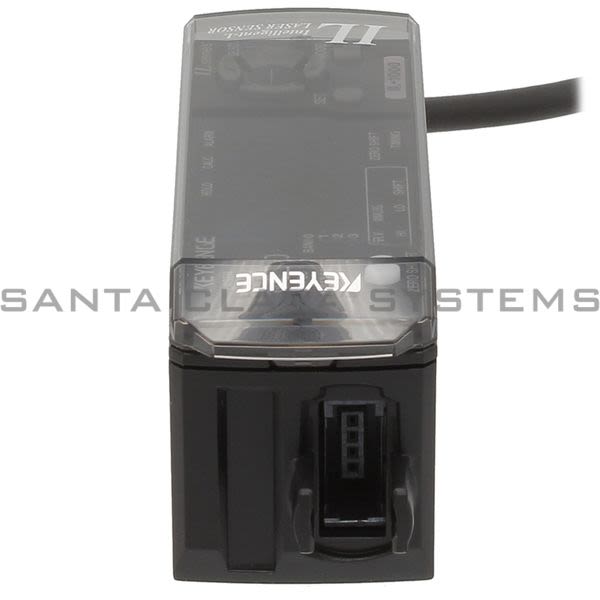

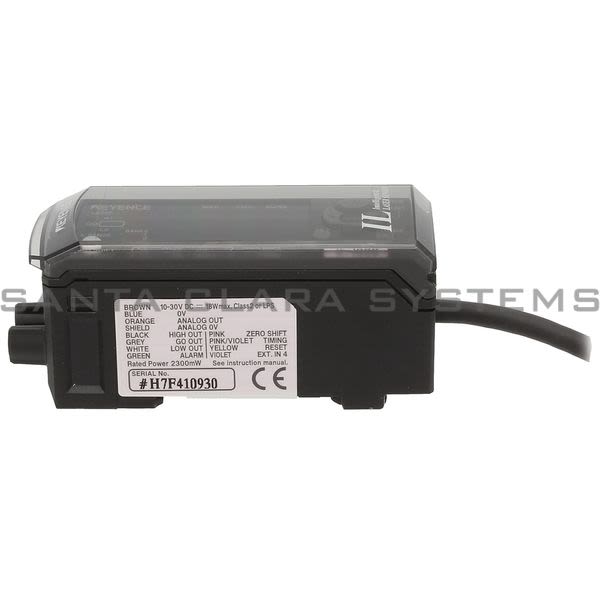

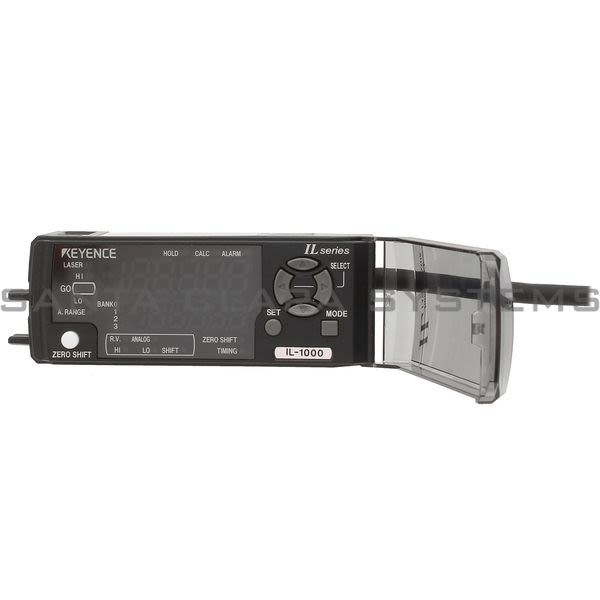

IL-1000

Keyence - Laser Sensor

Current response time:

13 Minutes 12 Seconds

Description: Laser Sensor
Weight: Approx. 150 g (including attachments)
Footnotes: *1 Select and use one of 5 V, 1 to 5 V, 0 to 5 V or 4 to 20 mA. *2 Assign an input of your choice to the 4 external input lines before using. *3 The NPN open collector rated output is: 50 mA max./ch (20 mA when adding an expansion unit) less than 30 V, residual voltage less than 1 V (less than 1.5 V when adding over 6 units including the main unit) The PNP open collector rated output is: 50 mA max./ch (20 mA/ch when adding expansion units), less than power voltage, and less than 2 V residual voltage (less than 2.5 V when adding over 6 units including the main unit) *4 If there are over 6 additional expansion units, please use a power voltage of 20 to 30 V.
Type: DIN-rail mount

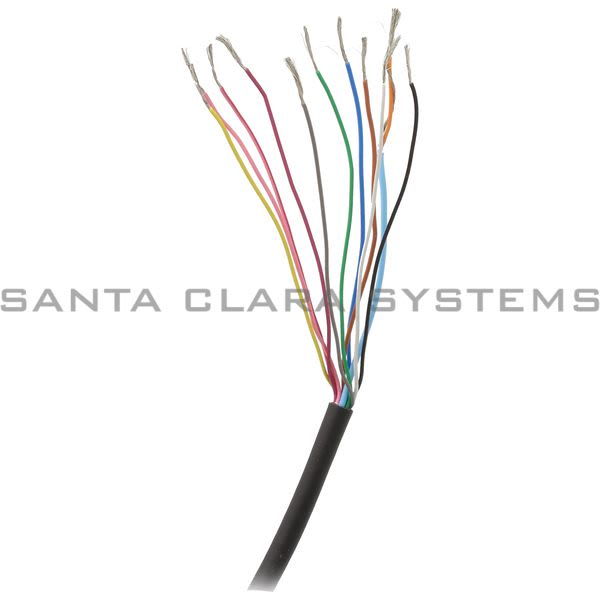

Material: Case / Front sheet: Polycarbonate; Key tops: Polyacetel; Cable: PVC
Main unit/Expansion unit: Main unit
Head compatibility: Compatible
Display - Minimum displayable unit: IL-030: 1 m 0.04 Mil, IL-065/IL-100: 2 m 0.08 Mil, IL-300: 10 m 0.39 Mil, IL-600: 50 m 1.97 Mil, IL-2000: 100 m 3.94"
Display - Display range: IL-030/IL-065/IL-100: 99.999 mm to 99 mm (4 levels selectable), IL-300/IL-600: 999.99 mm to 999 mm (3 levels selectable), IL-2000: 9999.9 mm to 9999 mm (2 levels selectable)
Display - Display rate: Approx. 10 times/sec.
Analog voltage output: 5 V, 1 to 5 V, 0 to 5 V Output impedance 100 ?*1
Analog current output: 4 to 20 mA Maximum load resistance of 350 ?*1
Control input - Bank switch input: Non-voltage input*2

Control input - Zero-shift input: Non-voltage input*2
Control input - Stop emission input: Non-voltage input*2
Control input - Timing input: Non-voltage input*2
Control input - Reset input: Non-voltage input*2
Control output - Judgement output: Open collector output (NPN, PNP changeover possible/N.O., N.C. changeover possible)*3
Control output - Alarm output: Open collector output (NPN, PNP changeover possible/N.C.)*3
Current - Power voltage: 10 to 30 VDC ripple (P-P) 10% included, Class 2*4
Current - Power consumption: 2300 mW or less (at 30 V: 77 mA or less)
Environmental resistance - Ambient temperature: -10 to +50C 14 to 122F (No condensation or freezing)
Environmental resistance - Relative humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz Double amplitude 1.5 mm 0.06" XYZ each axis: 2 hours
Environmental resistance - Pollution degree: 2
