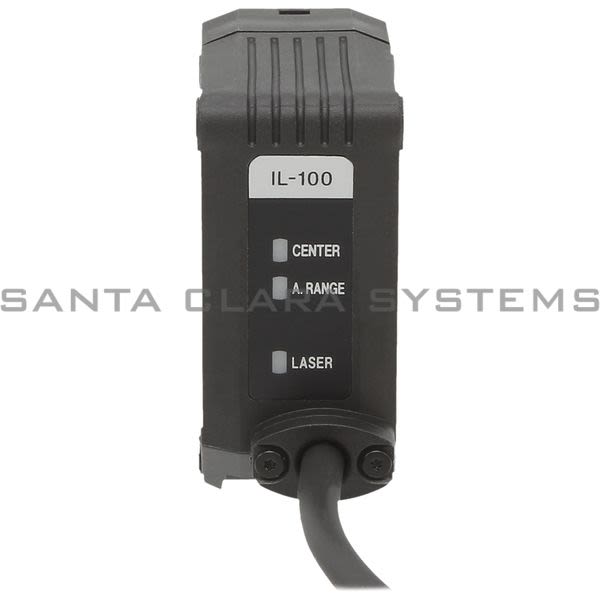

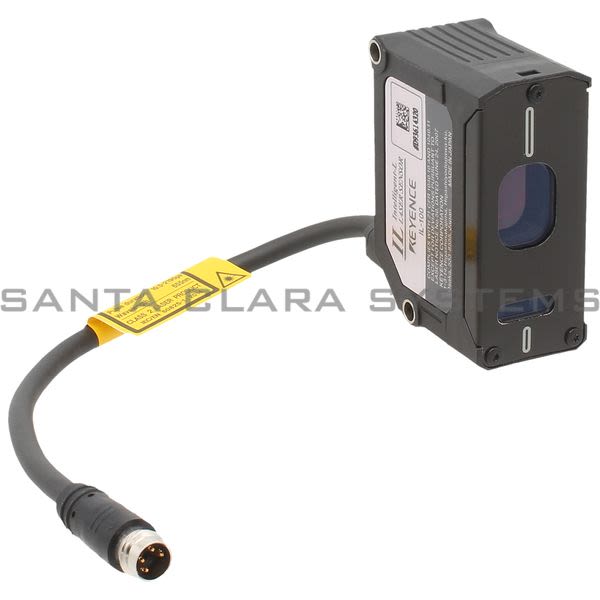

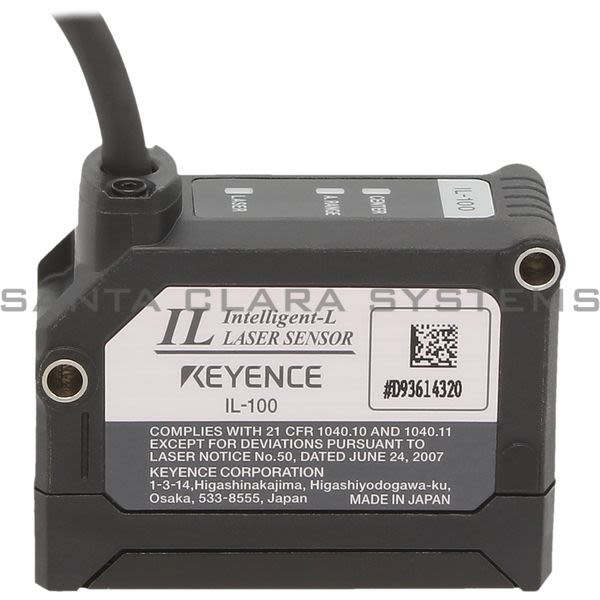

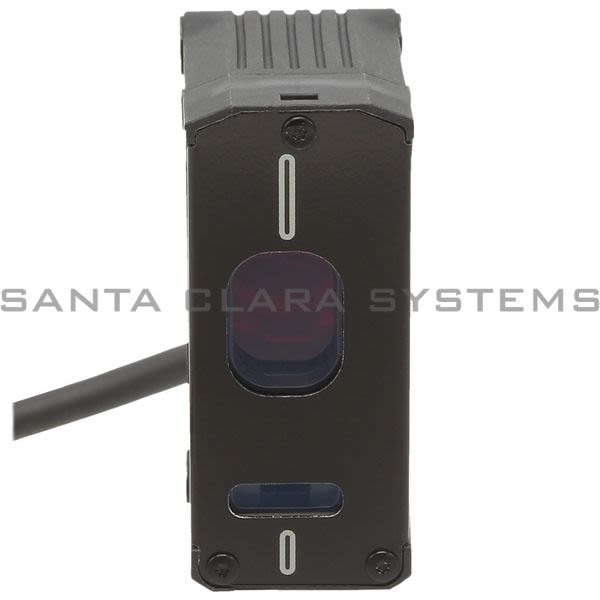

- Description: Laser Sensor
- Ambient temperature: -10 to +50 C 14 to 122 F (No condensation or freezing)
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
- Measurement range: 75 to 130 mm 2.95" to 5.12"
- Reference distance: 100 mm 3.94"
- Light source Type: Red semiconductor laser, wavelength: 655 nm (visible light)
- Light source Laser class: Class 2 (FDA (CDRH) Part1040.10)*1 Class 2 (IEC 60825-1)
- Light source Output: 560 W
- Spot diameter (at standard distance): Approx. 400 1350 m
- Linearity: 0.15% of F.S. (80 to 120 mm 3.15" to 4.72")*2*3
- Repeatability: 4 m*4
- Sampling rate: 0.33/1/2/5 ms (4 levels available)
- Operation status indicators: Laser emission warning indicator: Green LED, Analog range indicator: Orange LED, Reference distance indicator: Red/Green LED
- Temperature characteristics: 0.06% of F.S./C*5
- Enclosure rating: IP67
- Pollution degree: 3
- Ambient light: Incandescent lamp: 7,500 lux*6
- Material Housing: material: PBT, Metal parts: SUS304, Packing: NBR, Lens cover: Glass, Cable: PVC
- Weight Approx.: 75 g
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IL-100 . Santa Clara Systems carries 2,102 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
