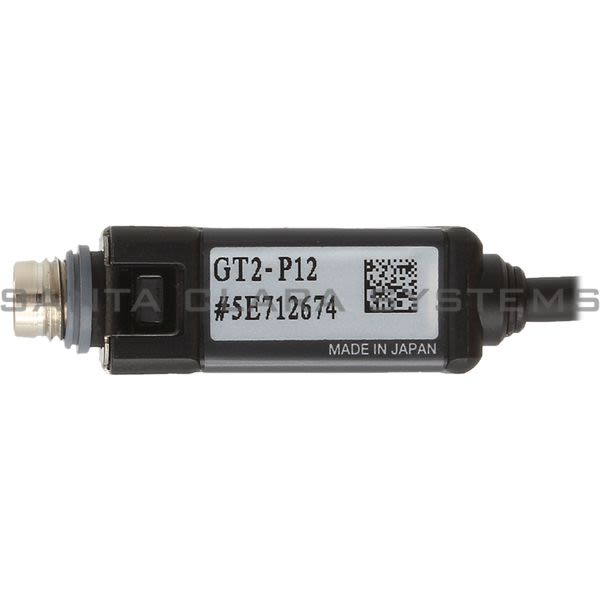

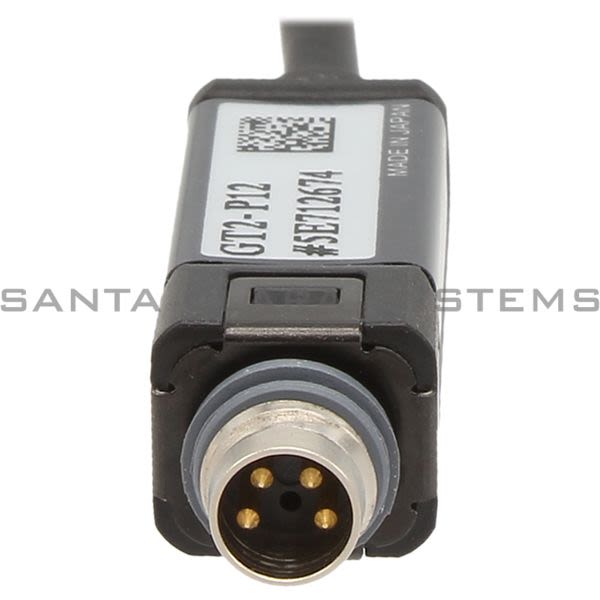

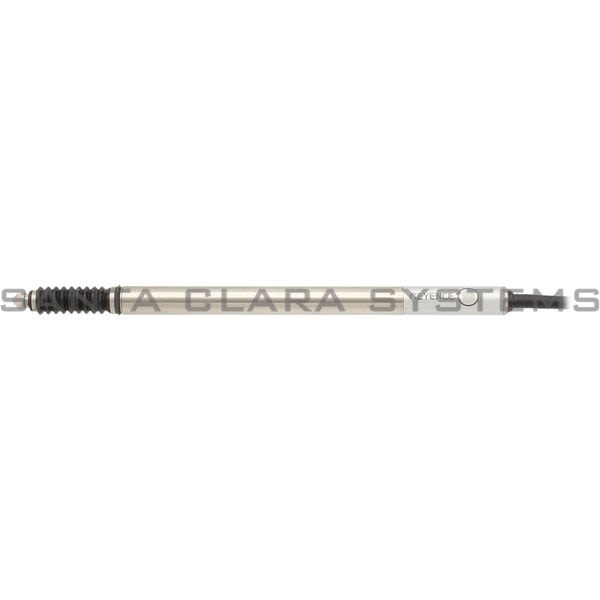

GT2-P12

Keyence - Stylus Type General-Purpose Sensor Head

Current response time:

10 Minutes 27 Seconds

Description: Stylus Type General-Purpose Sensor Head
Weight: Approx 35 g (excluding cable)*6
Footnotes: *1 Note: You may not be able to connect the sensor head to the amplifier unit depending on when the amplifier unit was purchased.For details, contact your local sales office. *2 Value when the ambient temperature is 20C 68F. *3 Value at center of measuring range. Please note that the measurement force changes depending on the installation state of the dust boots. *4 When an M8 oil-resistant cable (GT2-CHP2M/CHP5M/CHP10M) is used for the sensor head cable. *5 The contact is included with the sensor. *6 Including the relay connector.
Resolution: 0.5 ?m 0.02 Mil
Detection system: Scale Shot System II, absolute (no tracking errors) type
Measuring range: 12 mm 0.47"
Indicated accuracy: 2 ?m 0.08 Mil (p-p)*2
Measuring force - Downward mounting: 1.0 N*3
Measuring force - Side mounting: 0.95 N*3
Measuring force - Upward mounting: 0.9 N*3
Sampling cycle: 4 ms

Mechanical response: 10 Hz*2
Operation indicator light: 2-color LED (red, green)
Environmental resistance - Enclosure rating: IP67G (JIS)*4 IP67 (IEC) NEMA Type 13*4
Environmental resistance - Ambient temperature: -10 to +55C 14 to 131F (No freezing)
Environmental resistance - Relative humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz Double amplitude 1.5 mm 0.06" in the X, Y, Z axis directions respectively, 2 hours
Environmental resistance - Impact resistance: 1000 m/s2(IEC60068-2-27)
Materials - Main body: Main body case: SUS 303, Status indicator: PET, Sensor head-relay connector cable: PUR, Relay connector: PBT
Materials - Dust boot: NBR
Materials - Contact: SUS304, SUS440C*5
Sensor head cable: Optional (connect to relay connector)
