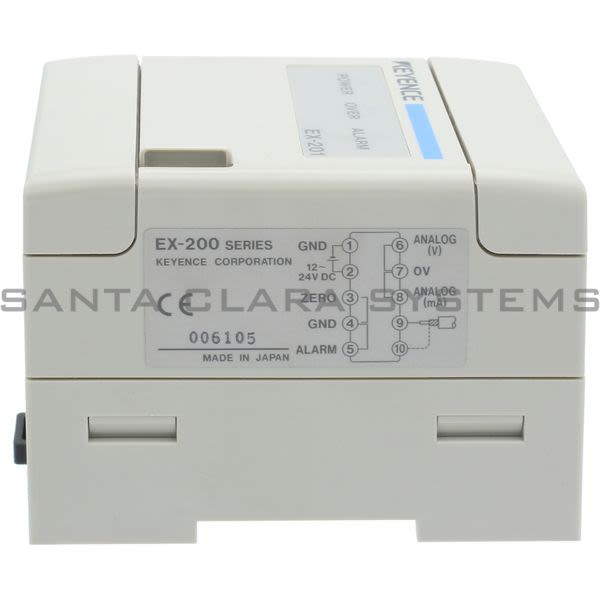

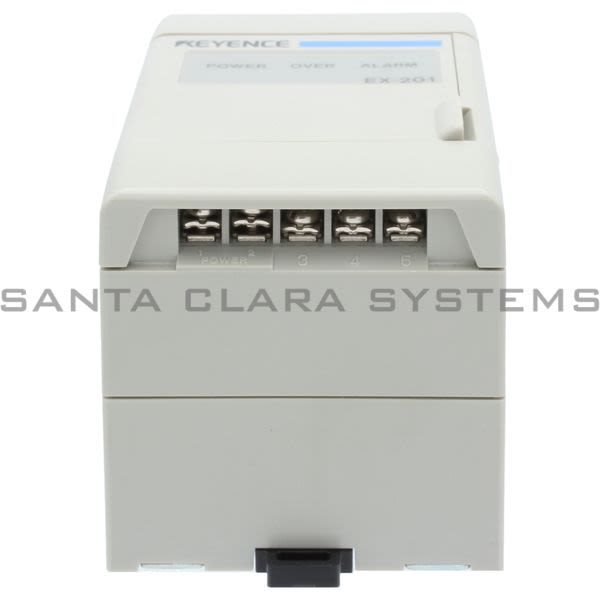

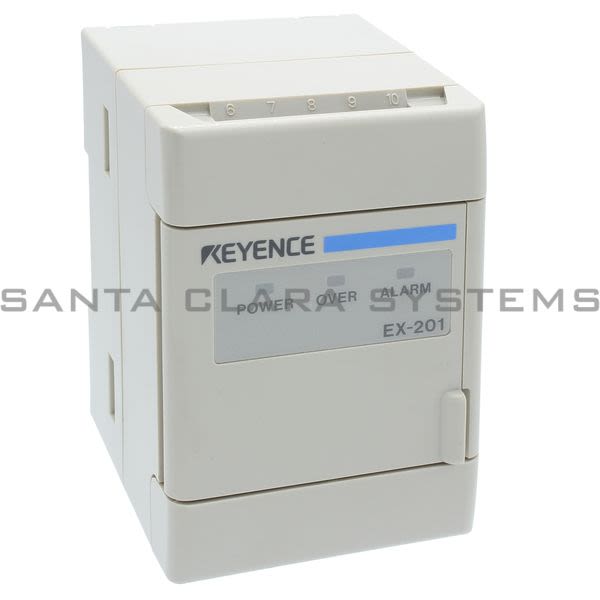

EX-201

Keyence - Gauging Sensor

Current response time:

19 Minutes 11 Seconds

Description: Gauging Sensor
Footnotes: *1 The above data was obtained using a steel target (S45C, SS41, t=1 mm 0.04" ). When measuring aluminum, copper, or stainless steel targets, refer to the linear characteristics for these materials. *2 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP output converter. *3 When the distance between the sensor head and the target is within 50% of the measuring range.
Type: Controller
Shape: 5.4 0.21" Cylindrical
Measuring range: 0 to 1 mm 0.04"
Analog output - Output voltage: 0 to 5 V (Output impedance 100?)*1
Analog output - Output current: 4 to 20 mA (Applicable load: 0 to 350?)*1
Analog output - Resolution: 0.04% of F.S. (Response frequency: LOW)*1
Analog output - Linearity: 1% of F.S.*1
Analog output - Response frequency - HIGH: 18 kHz (-3 dB)*1

Analog output - Response frequency - LOW: 1.3 kHz (-3 dB)*1
Disconnection alarm output (N.C.): NPN: 100 mA (40 V) max., Residual voltage: 1 V max. (N.C.)*2

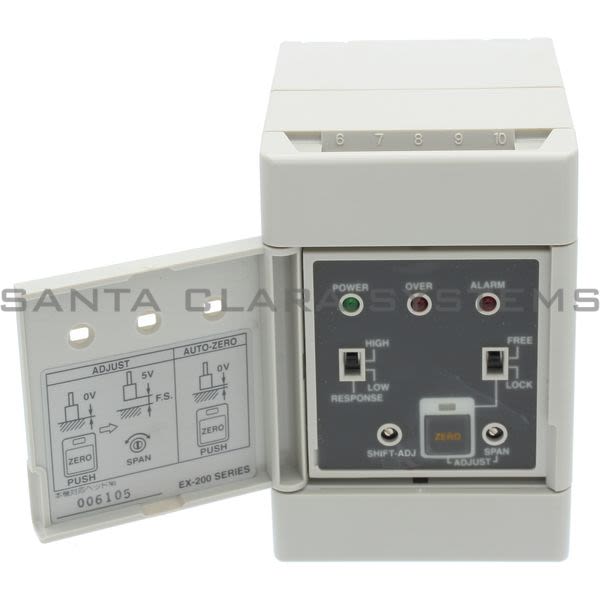

Functions: Auto-zero function/Response frequency selecting function
Temperature characteristics: 0.04% of F.S./C*3*1
Rating - Power supply voltage: 12 to 24 VDC 10%
Rating - Current consumption.: 240 mA max.
Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours in each of X, Y, and Z directions
Weight - Sensor head: Approx 285 g
