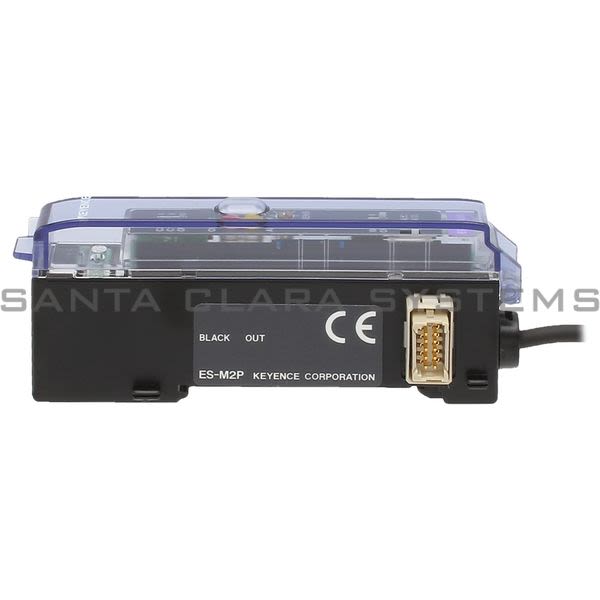

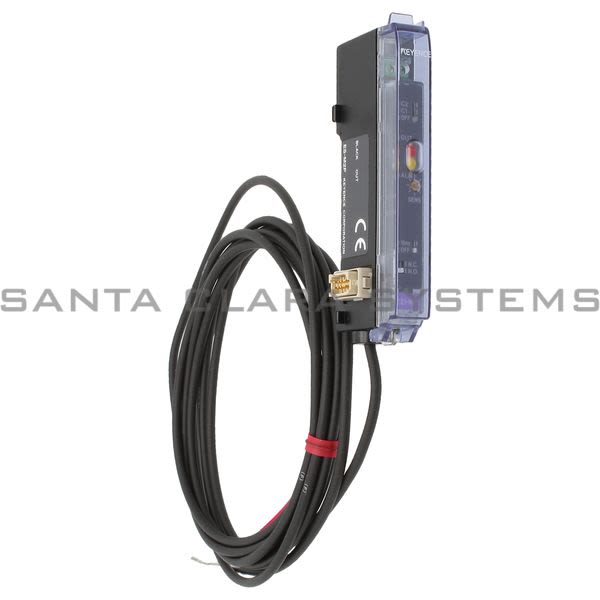

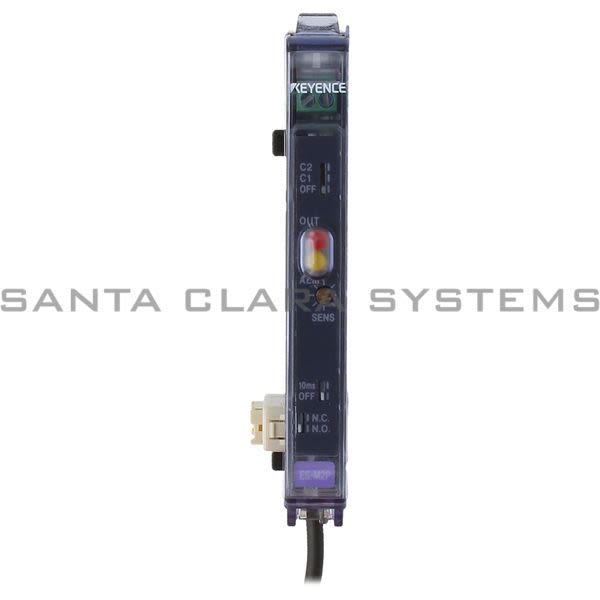

ES-M2P

Keyence - SENSOR AMPLIFIER

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: SENSOR AMPLIFIER

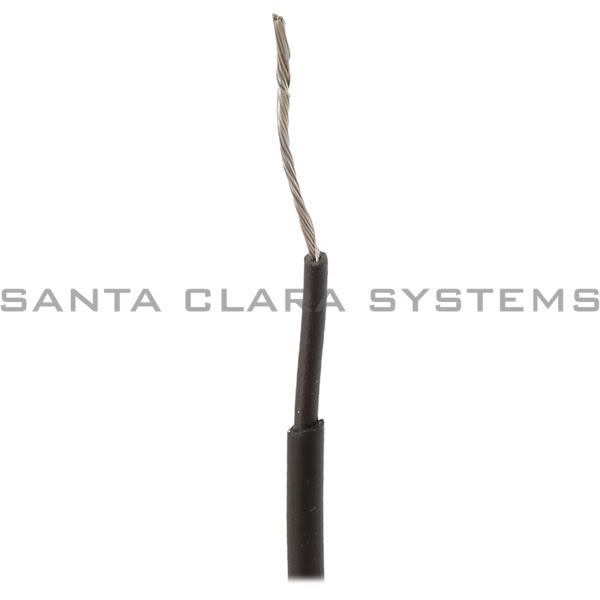

Weight: Approx. 35 g (including nuts and 2-m 9.8' cable)
Footnotes: *1 The ES-M1(P)/M2(P) cannot be connected to the EH-422, 430, 440 or 290. *2 During N.O. operating configuration, the off delay timer is 10 ms. During N.C., the on delay timer is 10 ms. *3 Broken connection warning output is not available on the ES-M2 (P). *4 The ambient temperature changes according to the following conditions when expansion units are added. When adding units, always attach them to a DIN rail (metal plate) and set the output current to 20 mA or less. 1 to 10 expansion units: 0 to 50?C 32 to 122?F 11 to 16 expansion units: 0 to 45?C 32 to 113?F
Type: One-line expansion system
Response time: 1 ms max.
Output: PNP
Sensitivity adjustment: 25-turn trimmer
Shape: Expansionunit
Operation mode: N.O./N.C. switch-selectable

Timer function: 10-ms delay / timer OFF switchable*2
Output - Control output: PNPopen collector 100 mA max. 26.4 V, residual voltage 1 V max.
Disconnection alarm output: *3
Temperature characteristics: Within 8% of detecting distance at +23C 73.4F when within 0 to 50C 32 to 122F temperature range
Protection circuit: Reverse power connection protection, output overcurrent protection, output surge protection
Rating - Power voltage: 12 to 24 VDC, ripple (P-P) 10% max.
Rating - Current/power consumption: 25 mA max.
Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F *4
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
