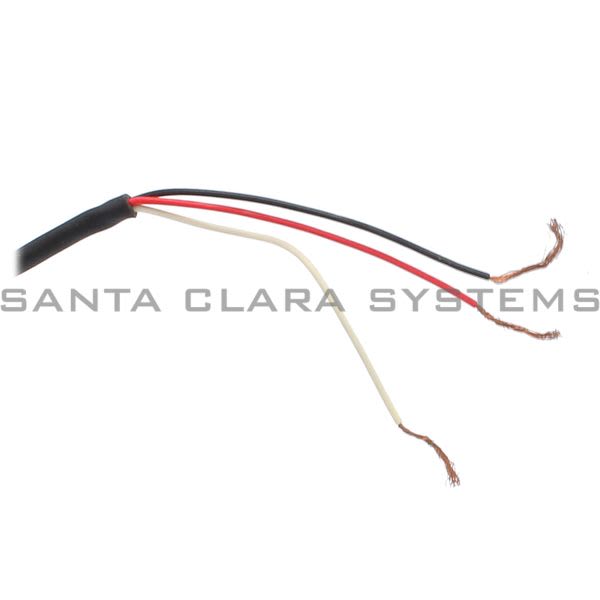

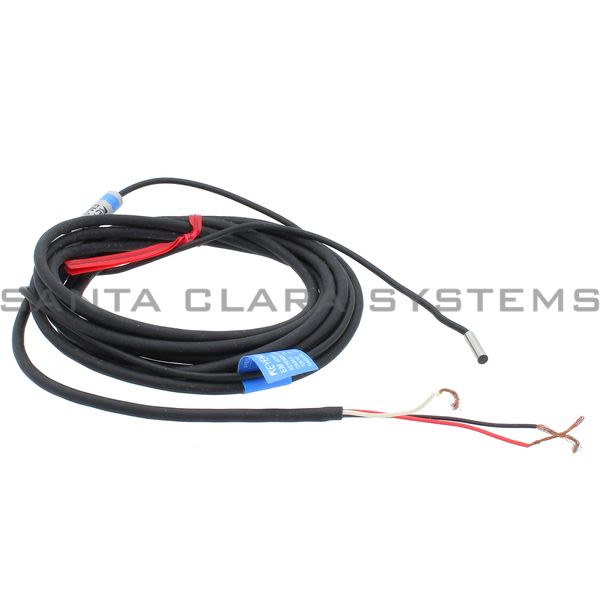

- Description: Amplifier-In-Cable Small Proximity Sensor
- Footnotes: *1 Make sure that the power voltage stays within 10.8 V to 30 V even if it is affected by ripple effects.
- Type: Shielded
- Output: NPN
- Housing: Stainless steel
- Shape: 3 mm 0.12" dia Cylindrical.
- Detecting distance: 0.6 mm 0.02" 15%
- Detectable object: Ferrous metals (see Characteristics for non-ferrous metals)
- Standard target (iron, t=1 mm 0.04"): 5 x 5 mm 0.20"
- Hysteresis: 10% max. of detecting distance
- Response frequency: 1.2 kHz
- Operation mode: N.O.
- Temperature characteristics: 10% max. of detecting distance at +23C 73.4F, within -10 to +70C 14 to 158F
- Display indicator: Red LED
- Control output: NPN: 200 mA (40 V) max., Residual voltage: 1 V max.
- Rating - Power voltage: 10.8 to 30 VDC, Ripple (P-P) 10% max.*1
- Rating - Current consumption.: 12 mA max.
- Environmental resistance - Enclosure rating: IP67
- Environmental resistance - Operating temperature range: -25 to +80C -13 to 176F, No freezing
- Environmental resistance - Operating ambient humidity: 35 to 95%, No condensation
- Weight (including nuts and 2-m 6.6' cable): Approx 36 g
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EM-030 . Santa Clara Systems carries 2,107 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
