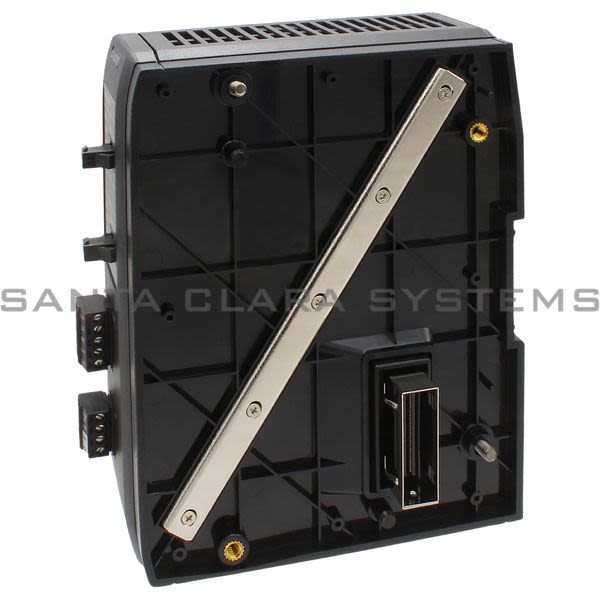

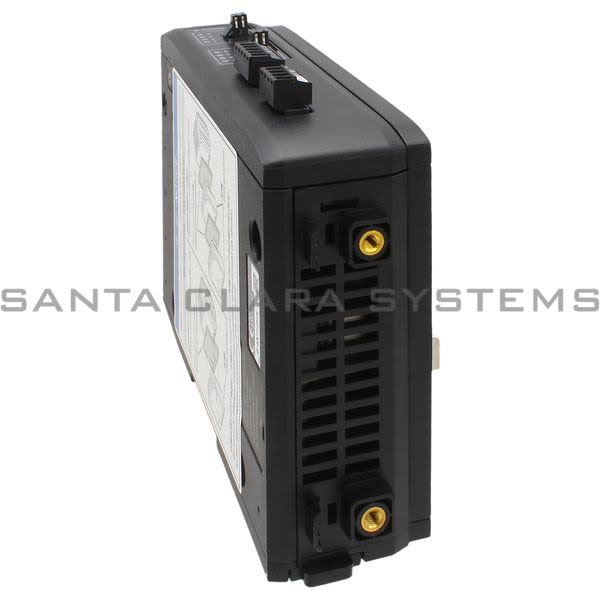

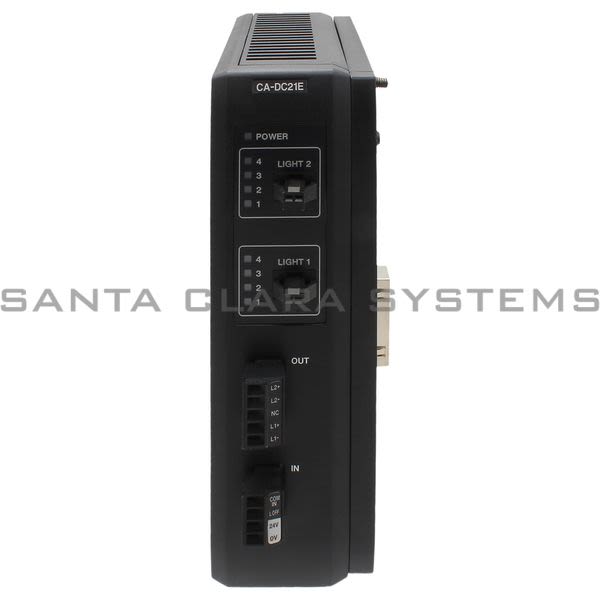

CA-DC21E

Keyence - Light and Light Controller

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Light and Light Controller
Weight: Approx. 590 g
Footnotes: *1 Maximum load including inrush current at start-up *2 The environmental resistance of the LED lighting is ambient temperature of 0 to +40C 32 to 104F, ambient humidity 35 to 65% RH (no condensation) *3 You will be restricted by the ambient temperature tolerance of the connected controller
Type: Illumination Controllers
Output - Light control method: 1 Constant voltage control method (direct current light) (2) Pulse width modulation method (light emitting frequency: 100 kHz) [System setting]
Output - Intensity range: 255 level digital [Program setting]
Output - Connection points: 2 ch (Enables LED connector connection and terminal block connection)
Output - Voltage: 12 VDC/24VDC [DIP switch setting]

Output - Capacity: Max. 40 W (30 W/1 ch maximum)
Output - Synchronization: FLASH output synchronization / continuous lighting [Program setting ]
Output - Response speed: 1 Constant voltage control: under 10 ms during 12 V output, under 20 ms during 24 V output (2) Pulse width modulation method: under 1 ms during 12/24 V output
Display - LED display: Light intensity: display green/orange (over 128) Error displayed: red (all lit)
Rating - Power supply voltage: 24 VDC 10%
Rating - Current consumption: 3.0 A (12 V output at maximum load) 6.5 A (24 V output at maximum load)*1
Environmental resistance - Ambient temperature: 0 to +50C 32 to 122F *2*3
Environmental resistance - Ambient humidity: 35 to 85% RH (No condensation)*2
