AH-305

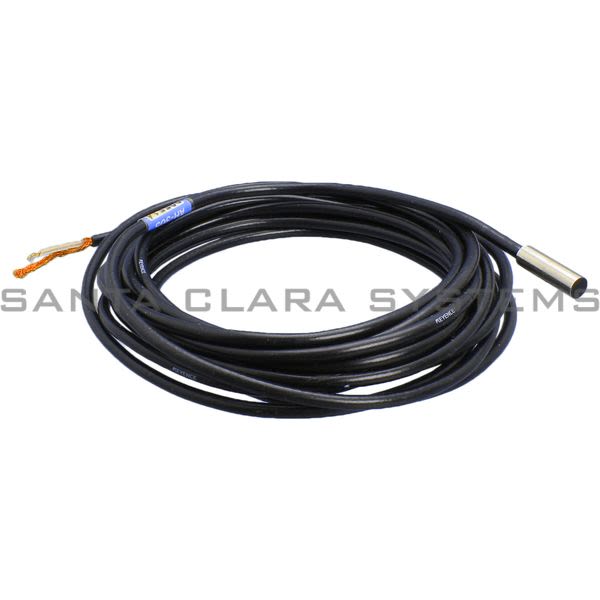

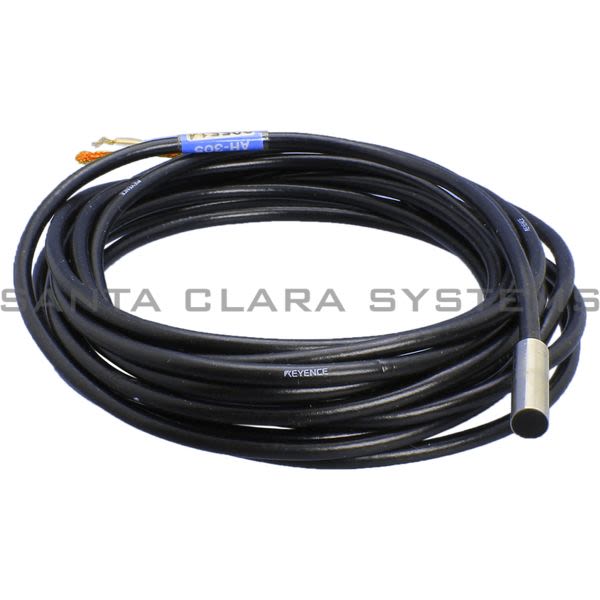

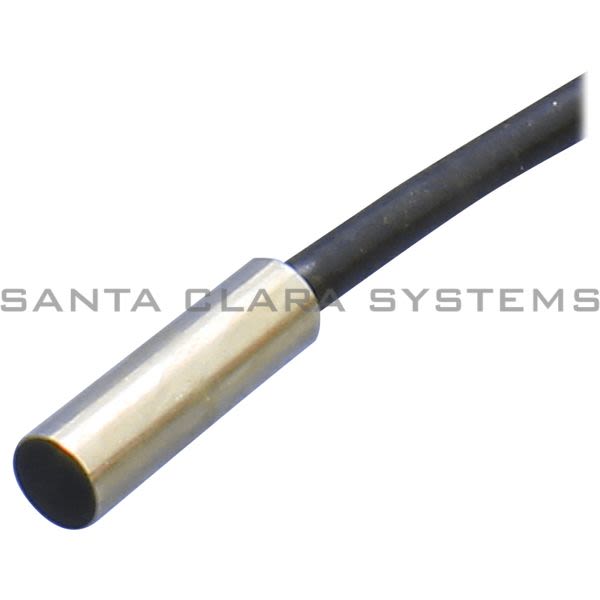

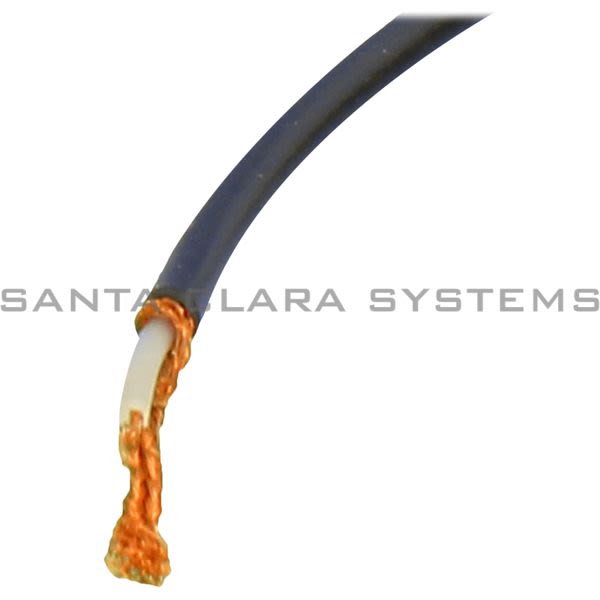

Keyence - Inductive Gauging Sensor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Inductive Gauging Sensor
Footnotes: *1 When the distance between the sensor head and the target is within 50% of the measurement range.
Type: General-use sensor head
Amplifier unit: AS-440-01
Shape: Cylindrical, diameter: 5.4
Measuring range: 0 to 1 mm 0.04"
Analog output voltage - Output voltage: 0 to 1V
Analog output voltage - Impedance: 100 ?
Analog output voltage - Resolution: 0.1% of F.S.
Analog output voltage - Linearity: ±1% of F.S.
Analog output voltage - Response: 3.3 kHz (-3 dB)

Temperature fluctuation - Sensor head: 0.03% of F.S./°C*1
Temperature characteristics - Amplifier unit: 0.05% of F.S./°C*1
Rating - Power voltage: 110/120/220/240 VAC ±10%, 50/60 Hz
Rating - Power consumption: 5VA
Environmental resistance - Enclosure rating - Sensor head: IP67
Environmental resistance - Operating ambient temperature: -10 to +60°C 14 to 140°F, No freezing
Environmental resistance - Operating ambient temperature - Amplifier unit: 0 to +50°C 32 to 122°F
Environmental resistance - Operating ambient humidity: 35 to 85%RH (no condensation)
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude, 2 hours in each of X, Y, and Z directions
Weight - Sensor head: Approx 45 g
Weight (including cord) - Amplifier unit: Approx 320g

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AH-305 . Santa Clara Systems carries 2,109 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
