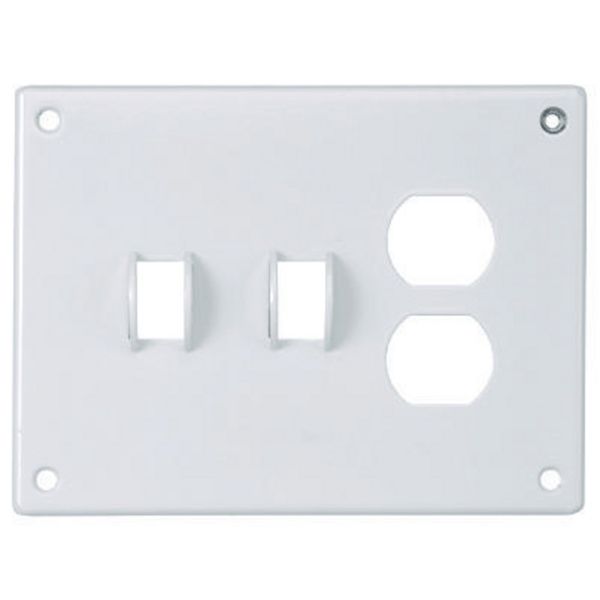

- Description: Control
- Specifications Description: 3 Gang, Switch, Switch, Duplex Receptacle, White.
- UPC Number: 78358500292
- Weight in LBs: 1.95
- Mounting Screws: (4) #8-32 x 1/2" Stainless Steel, T20 Torx Head
- Operating Temp: -40 deg. C to 85 deg. C
- Gangs: 3
- Color/Material: One piece #14 Cold rolled zinc plated steel with safety ground tab. White
- Product Dimensions: 7.39" x 5.52" (187.71 x 140.21)
- Thickness: .55" (13.97)
- Listings: UL Standard 514D
- Certification: UL Files #31999 and E115546. CSA Standard C22.2 42M CSA File LR18416
- Appearance: Five stage baked white polyester powder enamel finish
- Device Opening(s): 2) Toggles 1) Duplex
- Dimension A: 7.39" (187.71)
- Dimension B: 5.52" (140.21)
- Dimension C: .55" (13.97)
- Dimension D: 7.00" (177.80)
- Dimension E: 5.13" (130.30)
- Dimension F: 1.00" (25.40)
- Dimension G: 4.63" (117.60)
- Dimension H: 6.50" (165.10)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SWP28 . Santa Clara Systems carries 10,225 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
