Out of Stock

SHC1008ZP

Hubbell - Control

Current response time:

11 Minutes 10 Seconds

Description: Control

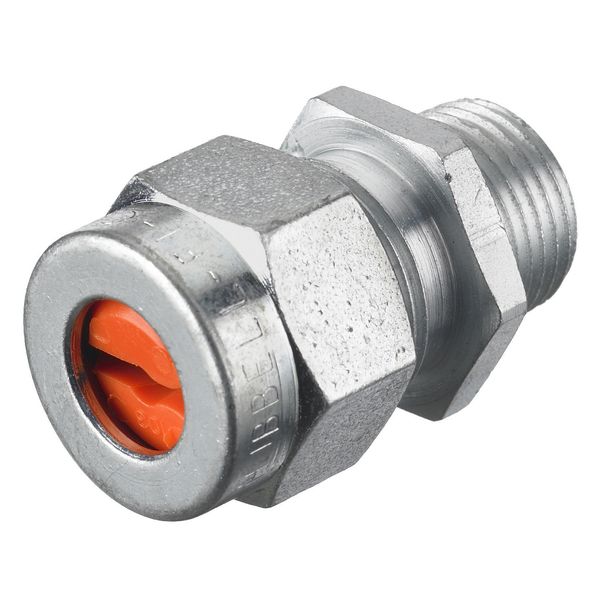

Specifications Description: The zinc-plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating. These heavy-duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials.
UPC Number: 78358549600
Weight in LBs: 0.075
Flammability: Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type: Cord Connectors
Material/Style: Zinc Plated Steel
Cord Diameter Range: .13"- .19" (3.2- 4.7)
Cord Connector Body Style: Straight Male
Form Size: F1
HUB Size: 3/8"
Color Code: Orange

Effective Operating Temperature: -30F to +225F (-34C to +107C)
Recommended Knockout Hole Size: .67"- .70" (17.0-17.8)
Hazardous Locations: Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Dimension A A/C: .98" (24.9)
Dimension A A/F: .88" (22.4)
Dimension B: .90" (22.9) Ref.
Dimension C: .42" (11.4)
Dimension D: .45" (11.4) Throat Dia.
Dimension E A/C: .99" (25.1)
Dimension E A/F: .88" (22.4)
Certifications: UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SHC1008ZP . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
