SAC34

Hubbell - Control

Current response time:

5 Minutes 29 Seconds

Description: Control
Specifications Description: Liquid-Tight Adapter, 1/2" NPT, 5 Wire 30A, 60A
UPC Number: 78358514001
Weight in LBs: 0.9
Flammability: UL94-5VA and V-0 classification.
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and International conventions.
Ingress Protection: IP67 Suitability
Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
Impact Resistance: In accordance with UL746C
Max Working Voltage: 600V AC RMS
Size: 3/4" NPT

Accessory Item: Conduit Adapter
For Use With: IEC & Insulgrip Devices
Used In:: 30 & 32A 5 Wire IEC
Hinge Spring: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Certification: UL Listed, CSA Certified
Dielectric Withstand Voltage: Withstands 3,000V AC
Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Endurance: Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
UV Resistance: All materials are UV Stabilized.
Certifications: UL Listed, CSA Certified.

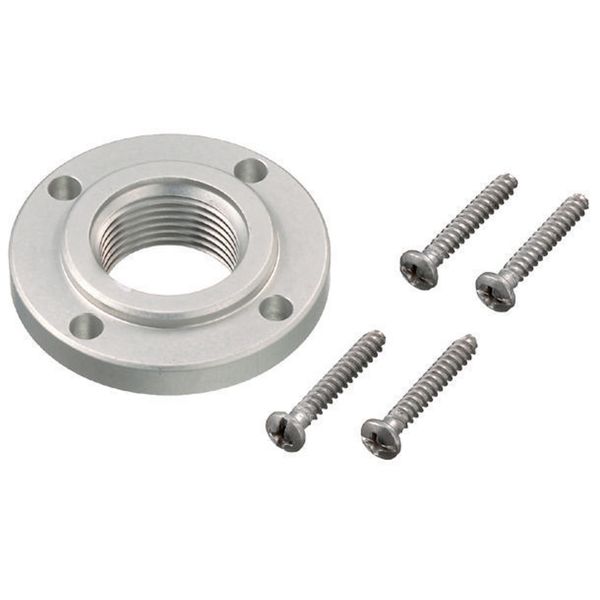

Device Description: Machined aluminum adapters are available to provide a means for attaching flexible liquid-tight metal conduit to rear of a Hubbell Pin and Sleeve plug or connector. Provides Female NPT Threads.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SAC34 . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
