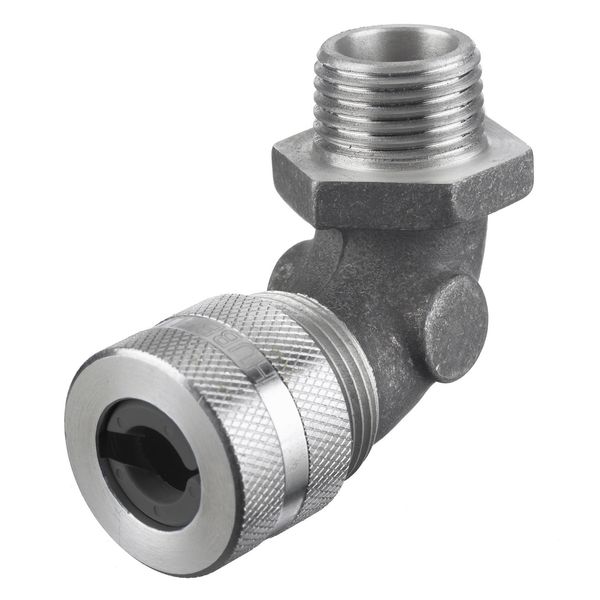

NHC1043

Hubbell - Control

Current response time:

By 5AM PT on Friday

Emergency?

Description: Control
Specifications Description: Hubbell offers a full line of machined aluminum cord connectors in N.P.T. hub sizes " through 1" and cast aluminum 1" to 3". They provide durable performance and a clean attractive look without adding unwanted weight.
UPC Number: 78358520143
Weight in LBs: 0.3
Flammability: Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type: Cord Connectors
Material/Style: Aluminum
Cord Diameter Range: .88"- 1.00" (22.2- 25.4)
Cord Connector Body Style: 90 Degree Male
Form Size: F4
HUB Size: 1"
Color Code: Gray

Effective Operating Temperature: -30F to +225F (-34C to +107C)
Recommended Knockout Hole Size: 1.36"- 1.41" (34.5-35.7)
Hazardous Locations: Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Dimension A: 2.08" (52.8)
Dimension B: 3.20" (81.3) Ref.
Dimension C: .70" (17.8) Dia.
Dimension D: 1.00" (25.4) Throat.
Dimension E A/C: 1.70" (43.2)
Dimension E A/F: 1.50" (38.1)
Dimension G: 1.75" (44.4) Dia.
Certifications: UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on NHC1043 . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
