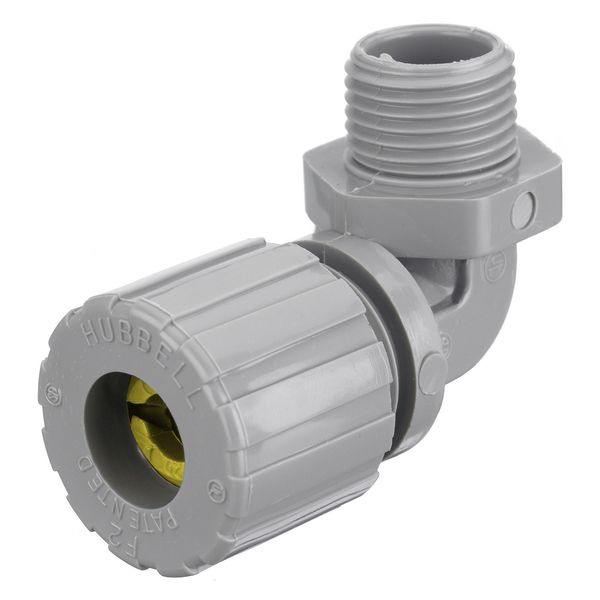

NHC1041CR

Hubbell - Control

Current response time:

By 5AM PT on Friday

Emergency?

Description: Control
Specifications Description: Hubbell's nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue.
UPC Number: 78358520883
Weight in LBs: 0.2
Flammability: Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type: Cord Connectors
Material/Style: Nylon Standard Style
Cord Diameter Range: .63"- .75" (15.9- 19.0)
Cord Connector Body Style: 90 Degree Male
Form Size: F4
HUB Size: 1"
Color Code: Yellow

Effective Operating Temperature: -30F to +225F (-34C to +107C)
Recommended Knockout Hole Size: 1.09"- 1.14" (27.8-29.0)
Hazardous Locations: Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Dimension A: 1.99" (50.5)
Dimension B: 3.30" (83.8)
Dimension C: .70" (17.8)
Dimension D: 1.01" (25.7) Throat Dia.
Dimension E A/C: 1.82" (46.2)
Dimension E A/F: 1.60" (40.6)
Dimension G: 1.88" (47.6) Dia.
Certifications: UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on NHC1041CR . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
