HBLMITL

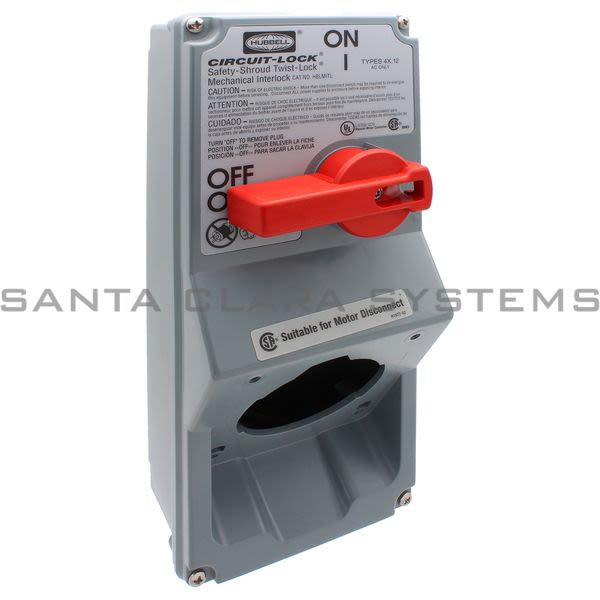

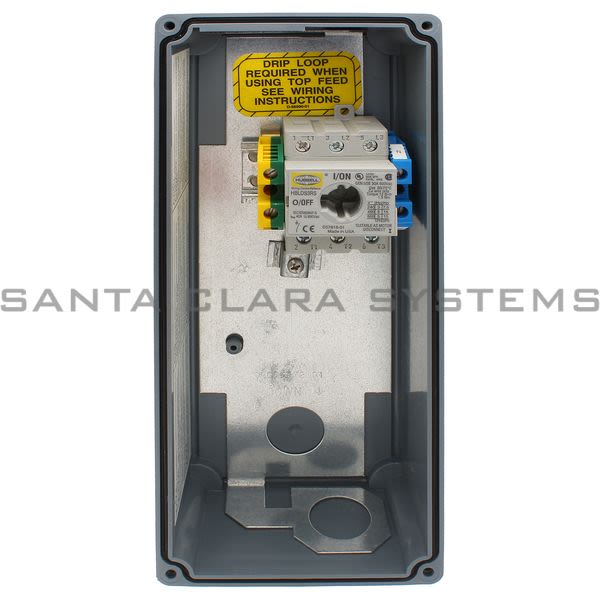

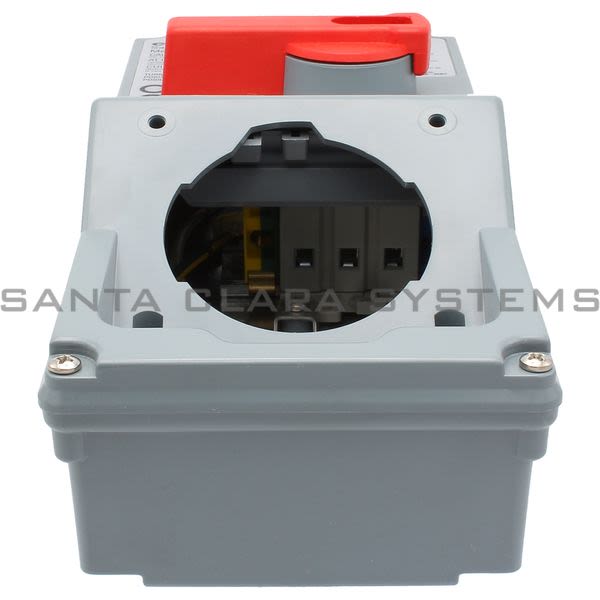

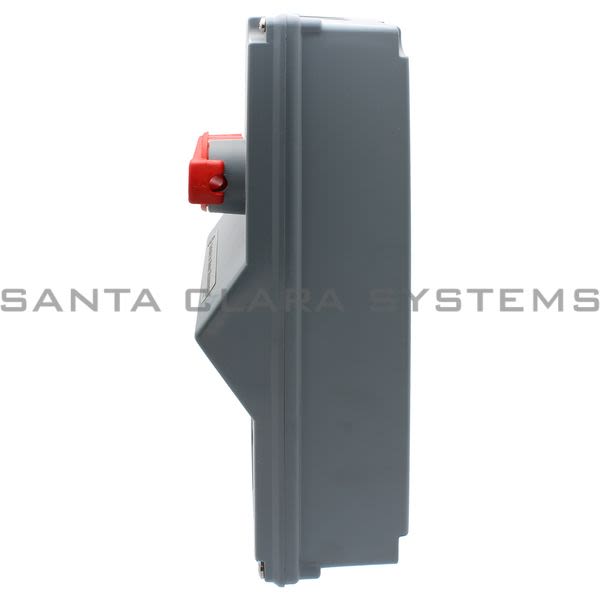

Hubbell - Safety-Shroud Twist-Lock | Mechanical Interlock | Circuit-Lock

Current response time:

By 5AM PT on Friday

Emergency?

Description: Safety-Shroud Twist-Lock | Mechanical Interlock | Circuit-Lock
Specifications Description: Mechanical Interlock accommodates 20 and 30A watertight Safety-Shroud receptacles.
UPC Number: 7.83585E+11
Weight in LBs: 3.65
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Product Type: Switched Enclosures

Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 30A #10 AWG
Moisture Resistance: IP66
Device Color: Gray
Catalog No: Permanently ink marked on product
Product Item: Switched Mechanically Interlocked Enclosure
Dielectric Voltage Withstand: 2,000V minimum
Listings: UL/CSA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBLMITL . Santa Clara Systems carries 10,224 items from Hubbell.
