HBLAC1

Hubbell - Auxiliary Contact

Current response time:

12 Minutes 3 Seconds

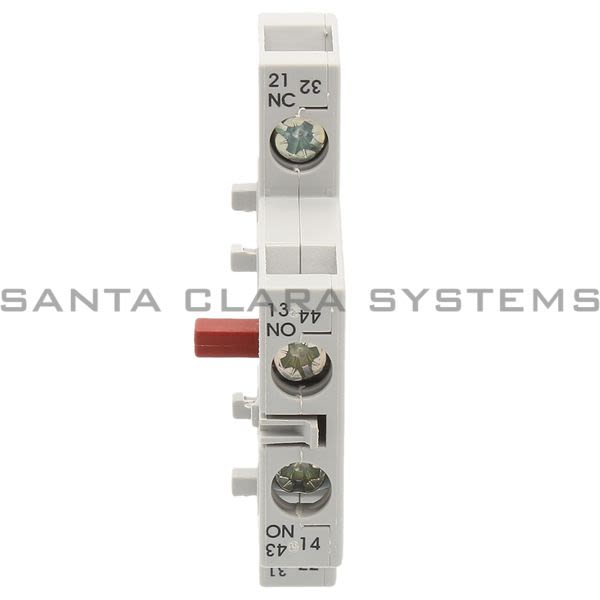

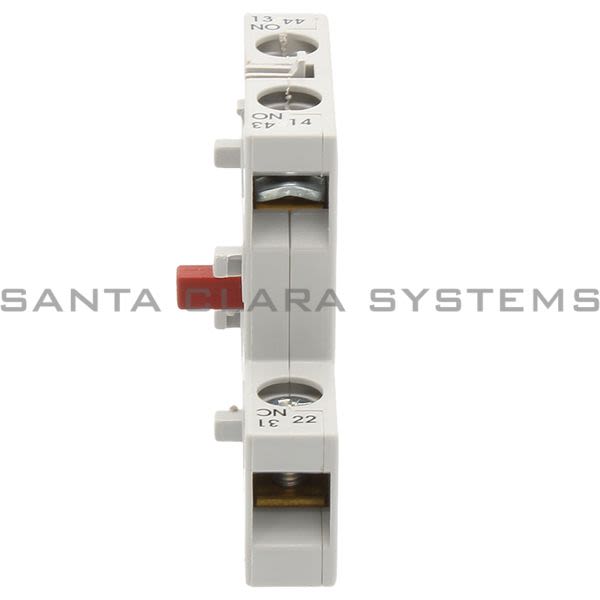

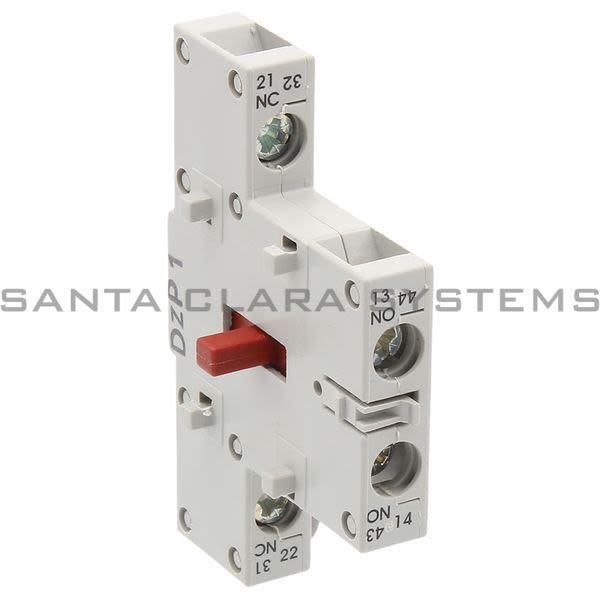

Description: Auxiliary Contact
Specifications Description: Break After Break Auxiliary Contact,
UPC Number: 78358595511
Weight in LBs: 0.1
Flammability: UL94-5VA and V-0 classification.
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and International conventions.
Ingress Protection: IP67 Suitability

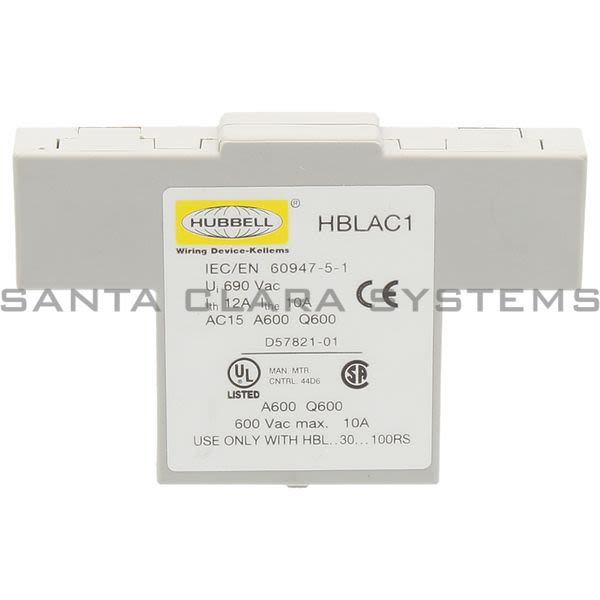

Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
Impact Resistance: In accordance with UL746C
Max Working Voltage: 600V AC RMS
Mechanical Interlock Device Standard: IEC

Mechanical Interlock Items: Replacement Parts
Replacement Part: Break Before Break Aux Contact
Terminal Accommodations: #14 To #18 AWG copper wire only
Hinge Spring: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Certification: UL Listed, CSA Certified
Dielectric Withstand Voltage: Withstands 3,000V AC
Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Endurance: Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
UV Resistance: All materials are UV Stabilized.
Certifications: UL Listed, CSA Certified.
Device Description: Auxiliary Contact.
