HBL8420

Hubbell - Control

Current response time:

5 Minutes 6 Seconds

Description: Control

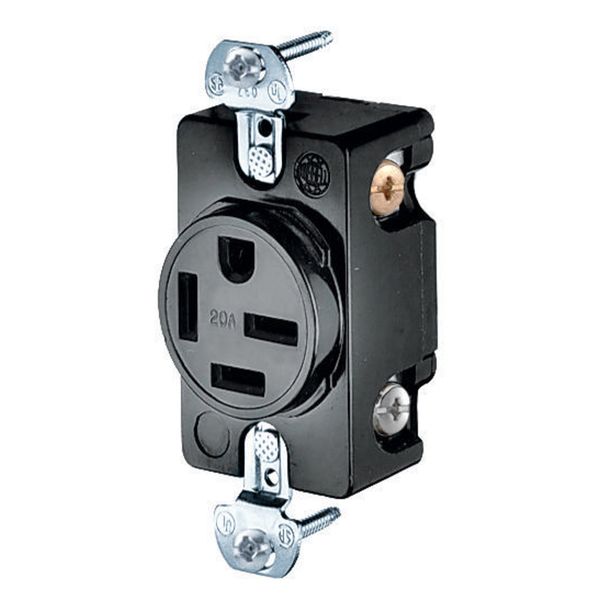

Specifications Description: 3-Pole 4-Wire Grounding, 20A 3PH 250V, 15-20R, Black Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.25
Amperage: 20A
Flammability: UL 94 V0.
Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
Voltage: 3ph 250V AC
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 3 Pole, 4 Wire Grounding
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
Terminal Screw Material: #8-32 Brass /Ni plated for neutral
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: #8-32 Silicon Bronze (Green)
Horsepower: 3

Rating: 20A, 3ph 250V
Type: 3 Pole, 4 Wire, Grounding
Standard: NEMA
Receptacle Style: Single
Face Shape: Traditional
Wiring Method: Back and Side
Hospital Grade ?: No
Receptacle Grade: Heavy Duty Spec Grade
Face Style: Finder Groove
NEMA No.: 15-20R
Certification: UL Listed, File E2186, Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Top Material: Nylon
Base Material: Reinforced PET
Power Contacts Material: .037" (.9) Brass - Ni Plated
Mounting Strap Material: .062" (1.5) Plated Steel
Mounting Screw Material: Steel-Zinc Plated
Dielectric Voltage: Withstands 2,000V minimum.
