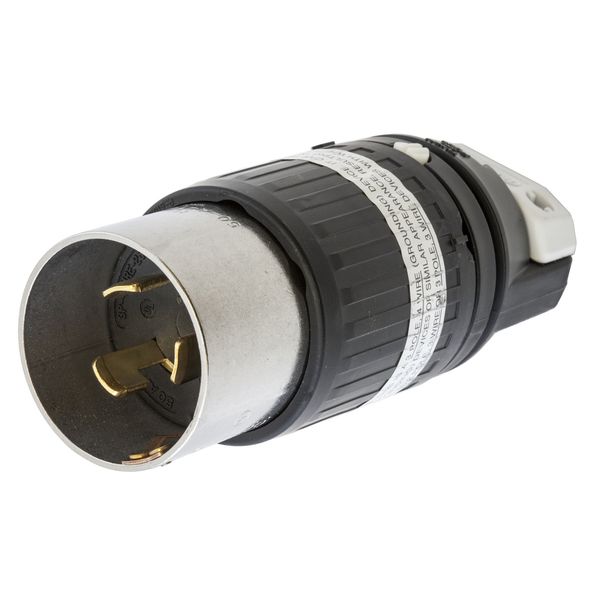

HBL7765C

Hubbell - Control

Current response time:

9 Minutes 56 Seconds

Description: Control
Specifications Description: 3P4W, 50A 600V AC Max, Nylon Cover, Rynite Interior
UPC Number: 7.83585E+11
Weight in LBs: 1.3
Amperage: 50A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 250V DC, 600V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: #10 AWG min - #6 AWG max
Moisture Resistance: IP20
Terminal Screw Material: Stainless Steel
Device Color: Black/White
Catalog No: Permanently ink marked on product
Product Item: Plug
Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On

Item Style: Standard
Housing Material: Black Supertough Nylon
50A Version: Non-Keyed Blades
Cord Dia.: .750"-1.125" (19.0-28.6)
Blade Holder Material: Glass Reinforced PET
Terminal Retainer Material: Glass Reinforced PET
Cord Clamp Material: Glass Reinforced PET
Blade Material: Brass
Terminal Clamp Material: Bronze box terminal
Cord Clamp Screw Material: 302/304 Stainless Steel
Body Holding Screw Material: 302/304 Stainless Steel
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Safety-Shroud Material: Stainless Steel
Seal Material: Neoprene
Seal Cup Material: Nylon
Latches Material: Supertough nylon
Box Terminal Material: Copper
Front & Rear Housing Material: Supertough nylon
Listings: UL/CSA
