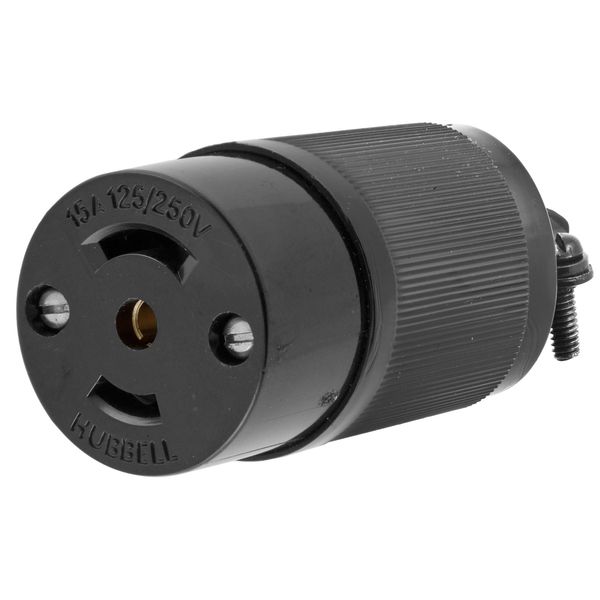

HBL7484

Hubbell - Control

Current response time:

18 Minutes 27 Seconds

Description: Control
Specifications Description: 3P3W, 15A 125/250V, ML-3R, Nylon Body, Phenolic Base, Black
UPC Number: 7.83585E+11
Weight in LBs: 0.05
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125/250V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Moisture Resistance: IP20
Device Color: Black
Catalog No: Permanently ink marked on product
Product Item: Connector Body

Wiring Scheme: 3-Pole, 3-Wire Non-Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Housing Material: Phenolic
NEMA Configuration: ML-3R
Cord Dia.: .281-.421" (7.1-10.7)
Cord Clamp Material: Metallic
Cord Clamp Screw Material: Steel - black oxide
Body Holding Screw Material: Steel, zinc plated
Body Contact Carrier Material: Black Thermoset
Contact Spring Material: .031" Brass
Ground Contact Material: .031" (.8) Brass
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL
