Out of Stock

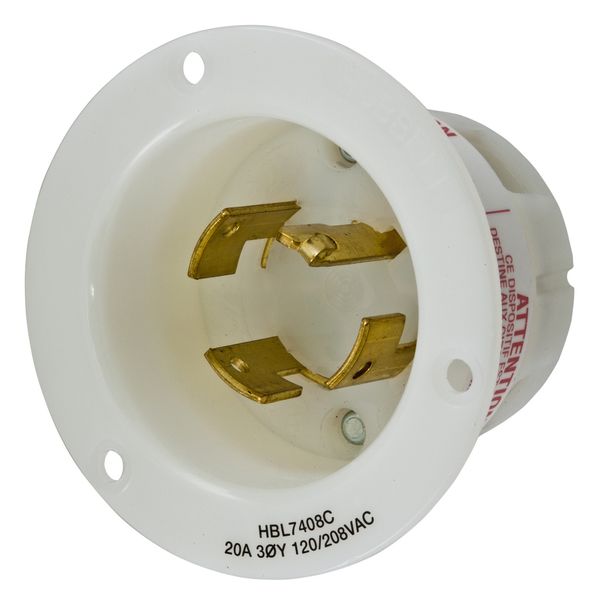

HBL7408C

Hubbell - Control

Current response time:

6 Minutes 44 Seconds

Description: Control
Specifications Description: 4P4W, 20A 3PH 120/208V AC, Non-NEMA, White Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.25
Amperage: 20A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 3 Phase Y 120/208V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12 AWG
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Device Color: White
Catalog No: Permanently ink marked on product

Product Item: Flanged Inlet
Wiring Scheme: 4-Pole, 4-Wire Non-Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
NEMA Configuration: Non-NEMA
Terminal Retainer Material: Clear polycarbonate
Blade Material: Brass
Terminal Clamp Material: .08" (2) steel-nickel plated
Body Holding Screw Material: Steel, zinc plated Multi-drive
Body Contact Carrier Material: Natural White Nylon
Flanged Casing Material: Natural White Nylon
Mounting Screw Material: Nickel-plated Brass Round head screws
Listings: UL
