HBL5669VY

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control

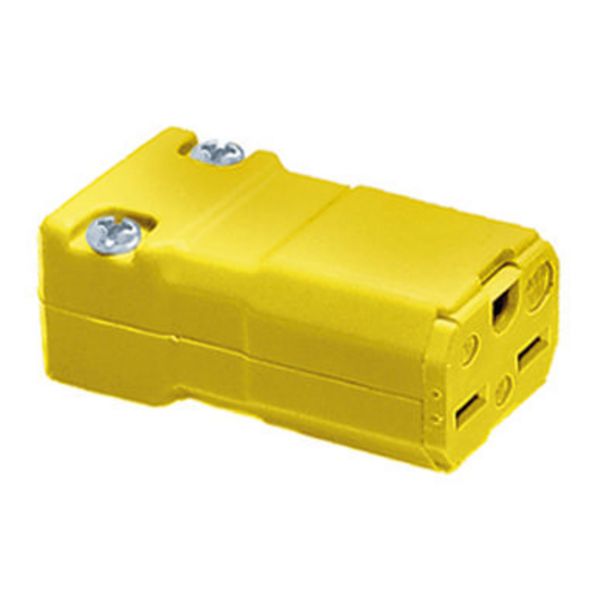

Specifications Description: 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Yellow Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.15
Amperage: 15A
Flammability: UL 94 HB or better.
Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
Voltage: 250V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #18-#12 AWG copper stranded or solid conductor only.
Terminal Screw Material: #8-32 Steel (copper or nickel finish)
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: #8-32 Steel, (green finish)

Body Style: Straight
Housing Material: Nylon
Rating: 15A, 250V
Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Wiring Method: Back Wire
Hospital Grade ?: No
Plug/Connector Grade: Valise
NEMA No.: 6-15R
Cord Dia.: .220-.660" (5.6-16.8)
Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
IP Suitability: IP20
Cord Clamp Material: Noryl
Power Contacts Material: .040" (1.0) Brass
Dielectric Voltage: Withstands 2,000V minimum.
Certified: UL2305 OEM and replacement use on convention center flat cable cord sets.
