HBL5362I

Hubbell - Control

Current response time:

11 Minutes 47 Seconds

Description: Control

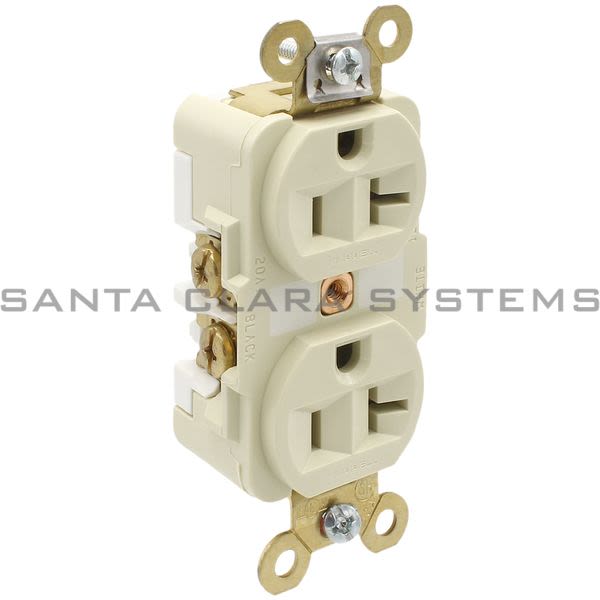

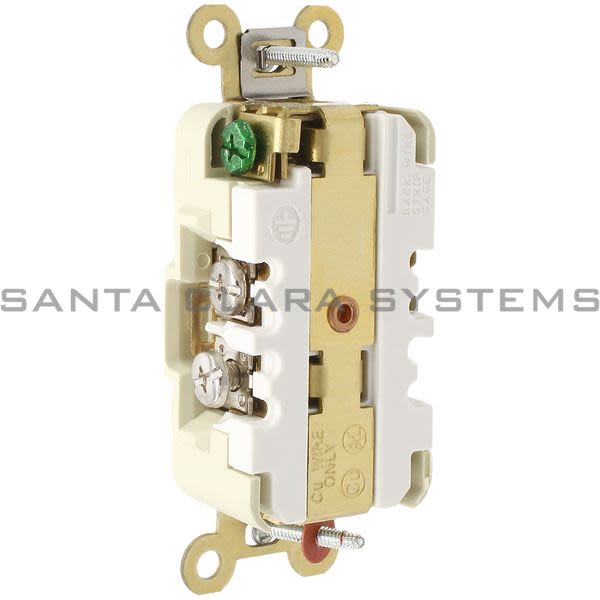

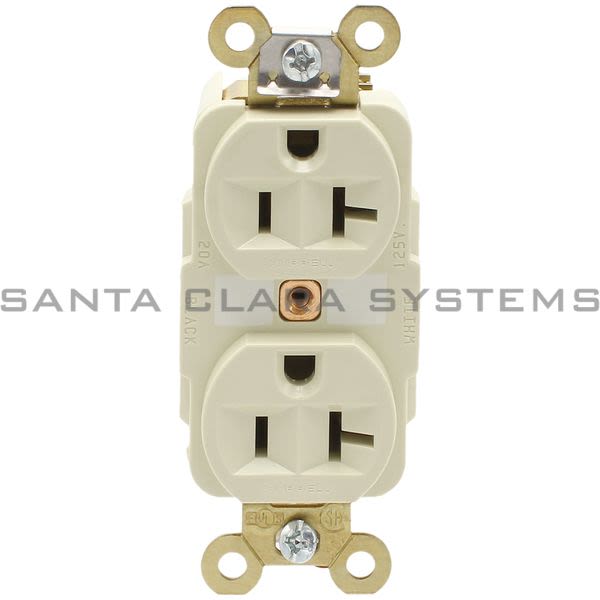

Specifications Description: 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Flush Nylon Face, Back and Side Wired, Ivory
UPC Number: 7.83585E+11
Weight in LBs: 0.25
Amperage: 20A
Flammability: UL 94 V2 or better
Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
Voltage: 125V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2 Pole, 3-Wire Grounding
Terminal Accommodation: #14-#10 AWG copper stranded or solid conductor only.
Terminal Screw Material: #10-32 Silicon Bronze (Ni plate if neutral)
Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: #10-32 Silicon Bronze (Green)
Horsepower: 1
Rating: 20A, 125V

Type: 2 Pole, 3 Wire, Grounding
Standard: NEMA
Receptacle Style: Duplex
Face Shape: Traditional
Wiring Method: Back and Side
Hospital Grade ?: No
Receptacle Grade: Extra Heavy Duty Spec Grade
Face Style: Finder Groove
Other Available Colors: Brown, Black, Gray, Ivory, Red, White
NEMA No.: 5-20R
Certification: -UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Top Material: Nylon
Base Material: Reinforced PET
Power Contacts Material: .037" (.9) Brass
Mounting Strap Material: .050" (1.3) Brass
Auto Ground Clip Material: Stainless Steel
Mounting Screw Material: Steel-Zinc Plated
Dielectric Voltage: Withstands 2,000V minimum.
