HBL530PS1W

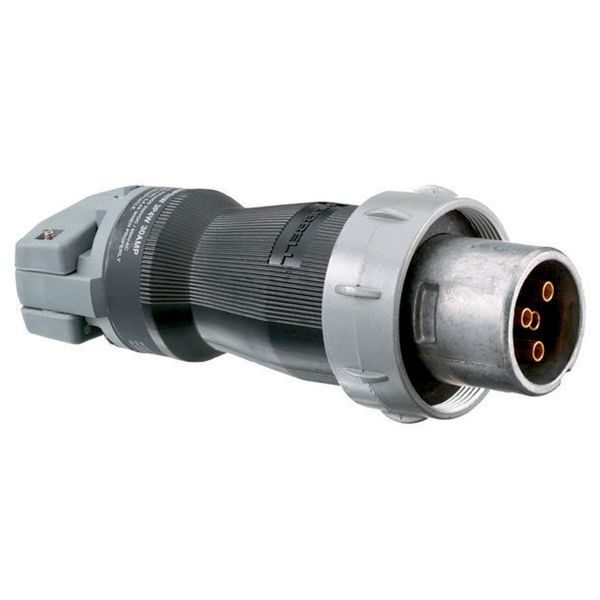

Hubbell - Pin and Sleeve Plug

Current response time:

By 5AM PT on Monday

Emergency?

Description: Pin and Sleeve Plug
Specifications Description: Watertight Insulgrip Plug, 4P5W, 30A 600V, Series 1
UPC Number: 78358501024
Weight in LBs: 1.75
Amperage: 30A
Flammability: UL94-5VA and V-0 classification.
Operating Temperatures: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact.
Voltage: 250V DC/600V AC
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and International conventions.
Temperature Rise: Max 30° C temperature rise at full rated current after 50 cycles of overload at 150% of rated current.
Poles and Wires: 4 Pole, 5 Wire
Moisture Resistance: Type 3, 4, 4X per UL 50 and CSA C22.2, No. 94.
Mounting Screws: Stainless Steel (300 Series)
Ingress Protection: IP67 Suitability
Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
Impact Resistance: In accordance with UL746C
Max Working Voltage: 600V AC RMS
Housing: Valox 357
Service Style: Standard
Insulgrip Grounding Style: Style I
Device: Plug
Terminal Accommodations: #10 To #8 AWG copper wire only
Cord clamp range: .630" To 1.150"
Replacement Interior Number: IN530MS1
Hinge Spring: Stainless Steel (300 series)

Shroud: Aluminum
Lock Ring: Epoxy Painted Aluminum
Contact Carrier: Thermoset Polyester
Retainer: Thermoset Polyester
Terminal Screws: Heat treated and Zinc Plated Steel
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Cord Clamps: Rynite SST35
Grommet/Glands: Neoprene
Gland Cap: Rynite SST35
Cord Clamp Screws: Stainless Steel (300 Series)
Clamp Nut: Nickel Plated Brass
Ground/Phase Sleeve: Brass
Ground Standoff: Brass
Ground Bracket: Nickel Plated Spring Bronze
Certification: UL Listed, CSA Certified
Dielectric Withstand Voltage: Withstands 3,000V AC
Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Endurance: Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
Cord Grip Retention: Per CSA C22.2 N0. 182.1 / UL1682
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
Hazardous Locations: Plugs Only- Class I, Division I & II, Groups B & C & D and Class II Division I & II, Groups F & G per UL 1010 & CSA 22.2, No. 459.
UV Resistance: All materials are UV Stabilized.
Certifications: UL Listed, CSA Certified.
Device Description: The interchangeable product line, INSULGRIP pin and sleeve features metallic where you want it and non-metallic where you need it offers two different styles of grounding.
