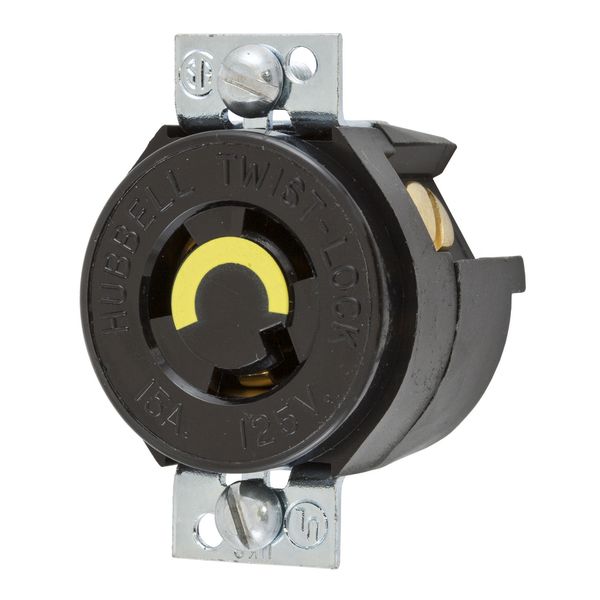

HBL4713

Hubbell - Control

Current response time:

11 Minutes 39 Seconds

Description: Control
Specifications Description: 2P3W, 15A 125V, L5-15R, Single Panel Mount, Brown RTP
UPC Number: 7.83585E+11
Weight in LBs: 0.15
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Terminal Screw Material: #8-32 Brass
Ground Screw Material: #8-32 Brass (Green)
Device Color: Black
Catalog No: Permanently ink marked on product

Product Item: Panel Mount Receptacle
Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Horsepower: 0.5
NEMA Configuration: L5-15R
Terminal Clamp Material: .062" (1.6) Steel
Contact Spring Material: .031" Brass
Mounting Screw Material: Steel-zinc-plated
Cover (Top) Material: Black Nylon
Base Material: Black Rynite
Ground Contact Material: .031" Brass
Bridge (Mounting Strap) Material: .050" Steel-zinc-plated
Rivet Material: Brass
Listings: UL/CSA
