HBL460P12WR

Hubbell - Control

Current response time:

15 Minutes 15 Seconds

Description: Control

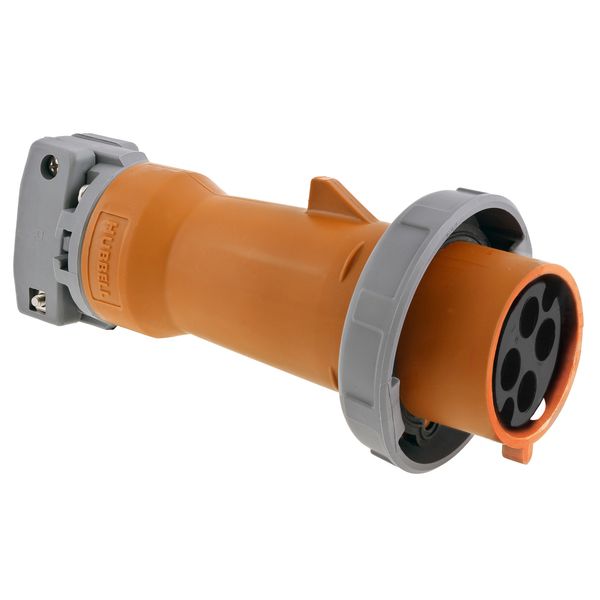

Specifications Description: Watertight IEC Pin and Sleeve Plug- Reversed Service, 3P4W, 60A 125/250V, Reversed Service
UPC Number: 78358501272
Weight in LBs: 2.7
Amperage: 60A
Voltage: 125/250V
Current Interrupting: Certified for current interrupting at full rated current.
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
Poles and Wires: 3 Pole, 4 Wire

Max Working Voltage: 600V RMS (i.e. minimum creepage distance 10 mm minimum)
IEC Product Type: Watertight
Service Style: Reversed
Device: Plug
Terminal Accommodations: #8 To #2 AWG copper wire only
Cord clamp range: .500" To 1.450"
Dielectric Withstand Voltage: Withstands 3,000V AC
Certifications: UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL 1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets and LR285C for Receptacle CSA Standard C22.2 No. 182.2, UL Classified to IEC 309-1 and
Device Description: Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL460P12WR . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
