Out of Stock

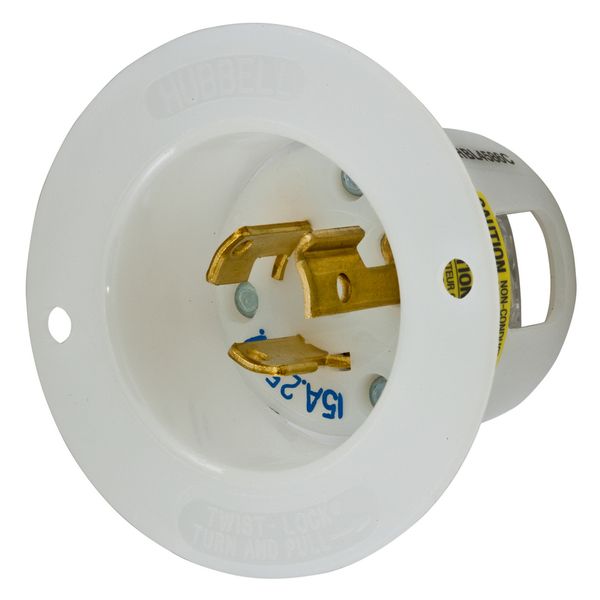

HBL4586C

Hubbell - Control

Current response time:

4 Minutes 4 Seconds

Description: Control
Specifications Description: 2P3W, 15A 250V, L6-15P, White Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.1
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 250V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Terminal Screw Material: #8-32 Brass
Ground Screw Material: #8-32 Brass (green finish)

Device Color: Black/White
Catalog No: Permanently ink marked on product
Product Item: Flanged Inlet
Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Insulgrip
NEMA Configuration: L6-15P
Terminal Retainer Material: Clear polycarbonate
Blade Material: Brass
Terminal Clamp Material: .062" cold rolled steel-nickel-plated
Flanged Casing Material: Natural White Nylon
Mounting Screw Material: Brass, zinc plated
Listings: UL/CSA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL4586C . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
