Out of Stock

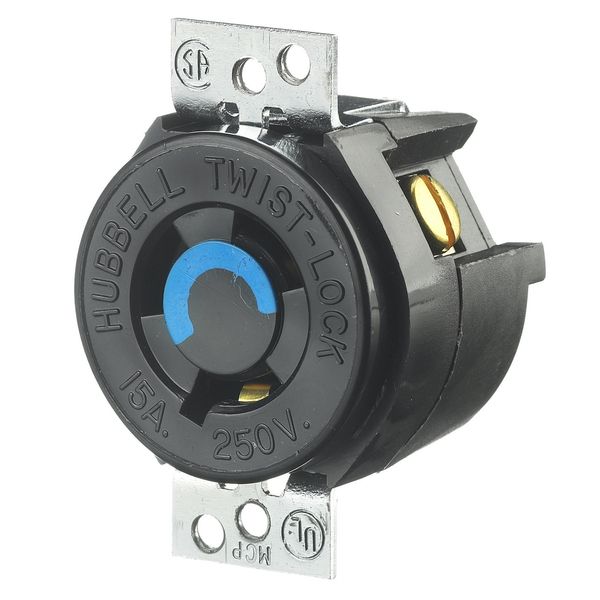

HBL4563

Hubbell - Control

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Control
Specifications Description: 2P3W, 15A 250V, L6-15R, Panel Mount Single, Brown RTP Face
UPC Number: 7.83585E+11
Weight in LBs: 0.1
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 250V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Terminal Screw Material: #8-32 Brass
Ground Screw Material: #8-32 Brass (Green)
Device Color: Black
Catalog No: Permanently ink marked on product

Product Item: Panel Mount Receptacle
Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Horsepower: 1.5
NEMA Configuration: L6-15R
Terminal Clamp Material: .062" (1.6) Steel
Contact Spring Material: .031" Brass
Mounting Screw Material: Steel-zinc-plated
Cover (Top) Material: Black Nylon
Base Material: Black Polyester
Ground Contact Material: .031" Brass
Bridge (Mounting Strap) Material: .050" Steel-zinc-plated
Rivet Material: Brass
Listings: UL/CSA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL4563 . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
