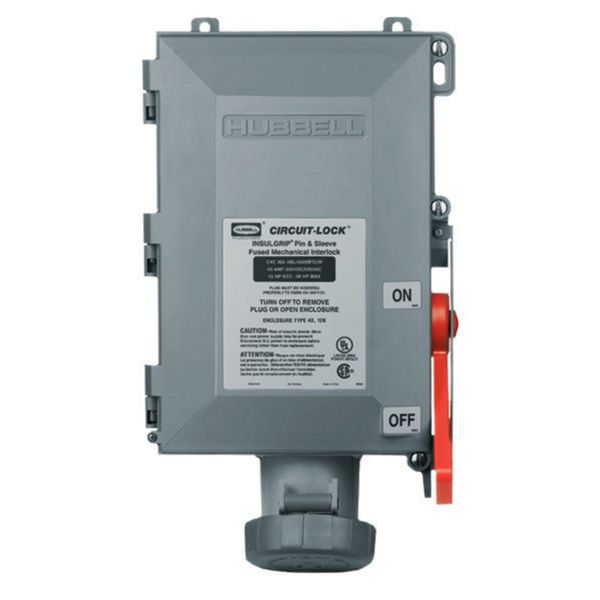

HBL430MIFS2W

Hubbell - Control

Current response time:

11 Minutes 33 Seconds

Description: Control
Specifications Description: Insulgrip Mechanical Interlock, Fused, 30A 600V, Watertight
UPC Number: 78358551488
Weight in LBs: 16.5
Amperage: 30A
Flammability: UL94-5VA and V-0 classification.
Operating Temperatures: Maximum Continuous: 60 C; Minimum Continuous: -40 C w/o impact.
Voltage: 250V DC/600V AC
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and International conventions.
Poles and Wires: 3 Pole, 4 Wire
Moisture Resistance: Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids).
Ingress Protection: IP66 Suitability
Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
Impact Resistance: In accordance with UL746C
Max Working Voltage: 600V AC RMS
Mechanical Interlock Device Standard: Insulgrip
Service Style: Standard
Mechanical Interlock Items: Complete Unit
Terminal Accommodations: #4 To #12 AWG copper wire only

Horsepower Rating: 20 Max
Base: VALOX
Handle: Valox
Shaft Seal: Neoprene
Top: VALOX
Conduit Hub: Zinc, Watertight
Shaft: VALOX
Enclosure Inserts: Brass
Enclosure Hinge Pins: Nickel Plated Brass
Hinge Spring: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Fuse Types: UL Listed Class "J", CSA Certified HRCI-J
Certification: UL Listed, CSA Certified
Dielectric Withstand Voltage: Withstands 3,000V AC
Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 100,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Endurance: Mechanical: 10,000 cycles
UV Resistance: All materials are UV Stabilized.
Certifications: UL Listed, CSA Certified.
Device Description: This device provides on/off switched control of a plug connected load and includes an interlocking feature to prevent the plug from being disconnected while the receptacle is energized. The switch cannot be turned "ON" until the plug is inserted properly.
