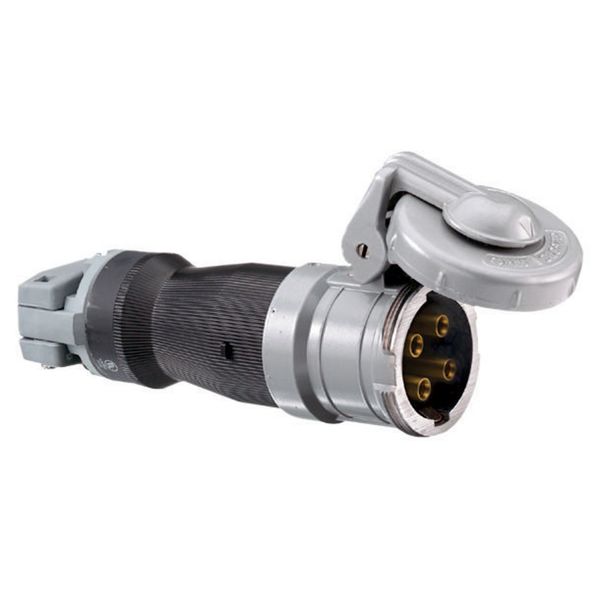

• Hubbell HBL430CS2WR Control Product Image
  • Hubbell HBL430CS2WR Barcode

HBL430CS2WR

Let Us Find It

Current response time:

7 Minutes 9 Seconds
  • Description: Control
  • Specifications Description: Watertight Insulgrip Connector, 3P4W, 30A 600V,S2 Reversed Service
  • UPC Number: 78358501235
  • Weight in LBs: 2
  • Amperage: 30A
  • Flammability: UL 94V-0 and CSA C22.2 No.0.17
  • Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact.
  • Voltage: 250V DC/600V AC
  • Current Interrupting: Certified for current interrupting at full rated current.
  • Terminal Identification: Terminals identified in accordance with UL1686 (1, 2, 3, Green).
  • Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current.
  • Poles and Wires: 3 Pole, 4 Wire
  • Moisture Resistance: Type 3, 4, 4X per UL 50 and CSA C22.2, No. 94.
  • Product Identification: Identification and ratings are a permanent part of the device housing.
  • Impact Resistance: Per CSA C22.2 N0. 182.1 / UL1682
  • Max Working Voltage: 600V AC RMS (i.e., minimum creepage and clearance distance of 6.4 mm, per UL 1682).
  • Housing: Valox 357
  • Cover: Epoxy Painted Aluminum
  • Service Style: Reversed
  • Insulgrip Grounding Style: Style II
  • Device: Connector
  • Terminal Accommodations: #10 To #8 AWG copper wire only
  • Cord clamp range: .680" To 1.050"
  • Replacement Interior Number: IN430MS2
  • Shroud: Epoxy Painted Aluminum
  • Contact Carrier: Thermoset Polyester
  • Retainer: Thermoset Polyester
  • Terminal Screws: Heat treated and Zinc Plated Steel
  • Gaskets: Neoprene
  • Cord Clamps: Rynite SST35
  • Grommet/Glands: Neoprene
  • Gland Cap: Rynite SST35
  • Cord Clamp Screws: Stainless Steel (300 Series)
  • Clamp Nut: Nickel Plated Brass
  • Cover Screw/Rivet: Aluminum
  • Ground/Phase Sleeve: Brass
  • Ground Standoff: Brass
  • Ground Bracket: Nickel Plated Spring Bronze
  • Spring Guide: Stainless Steel (300 series)
  • Springs, Arm and Wave: Stainless Steel (300 series)
  • Spring Washer: Stainless Steel (300 series)
  • Hinge Bushing: Aluminum
  • Certification: UL Listed, UL Standard 1682, UL50 and UL1010 (plugs only), CSA Certified to CSA C22.2 No. 182.1, No.94 and No. 159 (plugs only), UL Listed and CSA Certified Type 4X.
  • Dielectric Withstand Voltage: Withstands 3,000V AC Min.
  • Endurance: Up to 1,000 connect and disconnect cycles at full rated current and voltage.
  • Cord Grip Retention: Per CSA C22.2 N0. 182.1 / UL1682
  • Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
  • Certifications: UL Listed, UL Standard 1682, UL 50, and UL 1010 (plugs only) CSA Certified to CSA Spec. C22.2 No. 182.1, No. 94 and No. 159 (plugs only) UL Listed, CSA Certified Type 4X.
  • Device Description: The interchangeable product line, INSULGRIP pin and sleeve features metallic where you want it and non-metallic where you need it offers two different styles of grounding.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL430CS2WR . Santa Clara Systems carries 10,224 items from Hubbell.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
