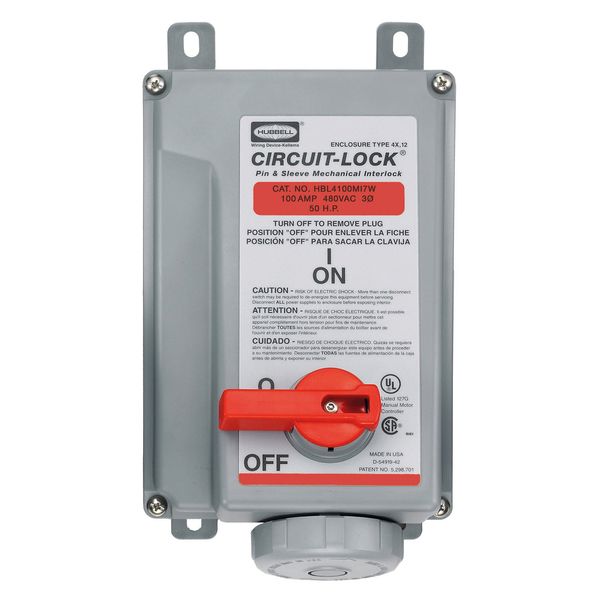

HBL4100MI7W

Hubbell - Control

Current response time:

16 Minutes 5 Seconds

Description: Control
Specifications Description: Unfused Circuit-Lock Interlock Device, Mechanical Interlock, IEC, 3P4W, 100A 3PH 480V
UPC Number: 78358540588
Weight in LBs: 10
Amperage: 100A
Flammability: UL94-5VA and V-0 classification.
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Voltage: 3 Phase 480V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and International conventions.
Poles and Wires: 3 Pole, 4 Wire
Moisture Resistance: Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids).
Ingress Protection: IP67 Suitability
Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
Impact Resistance: In accordance with UL746C
Max Working Voltage: 600V AC RMS
Mechanical Interlock Device Standard: IEC
Service Style: Standard
Mechanical Interlock Items: Complete Unit
Terminal Accommodations: #2 To #10 AWG copper wire only

Horsepower Rating: 50
Base: VALOX
Handle: Valox
Shaft Seal: Neoprene
Top: VALOX
Conduit Hub: Zinc, Watertight
Shaft: VALOX
Enclosure Inserts: Brass
Enclosure Hinge Pins: Nickel Plated Brass
Hinge Spring: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Certification: UL Listed, CSA Certified
Dielectric Withstand Voltage: Withstands 3,000V AC Min.
Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Endurance: Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
UV Resistance: All materials are UV Stabilized.
Certifications: UL Listed, CSA Certified.
Device Description: This device provides on/off switched control of a plug connected load and includes an interlocking feature to prevent the plug from being disconnected while the receptacle is energized. The switch cannot be turned "ON" until the plug is inserted properly.
